1 Shapes
7-18 WindO/I-NV4 User’s Manual
■ Size
■ Place on the Top Layer
Select this check box to display the pie on the top layer. The pie will have precedence when other drawings and parts
are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts Overlapping” on page 6-5.

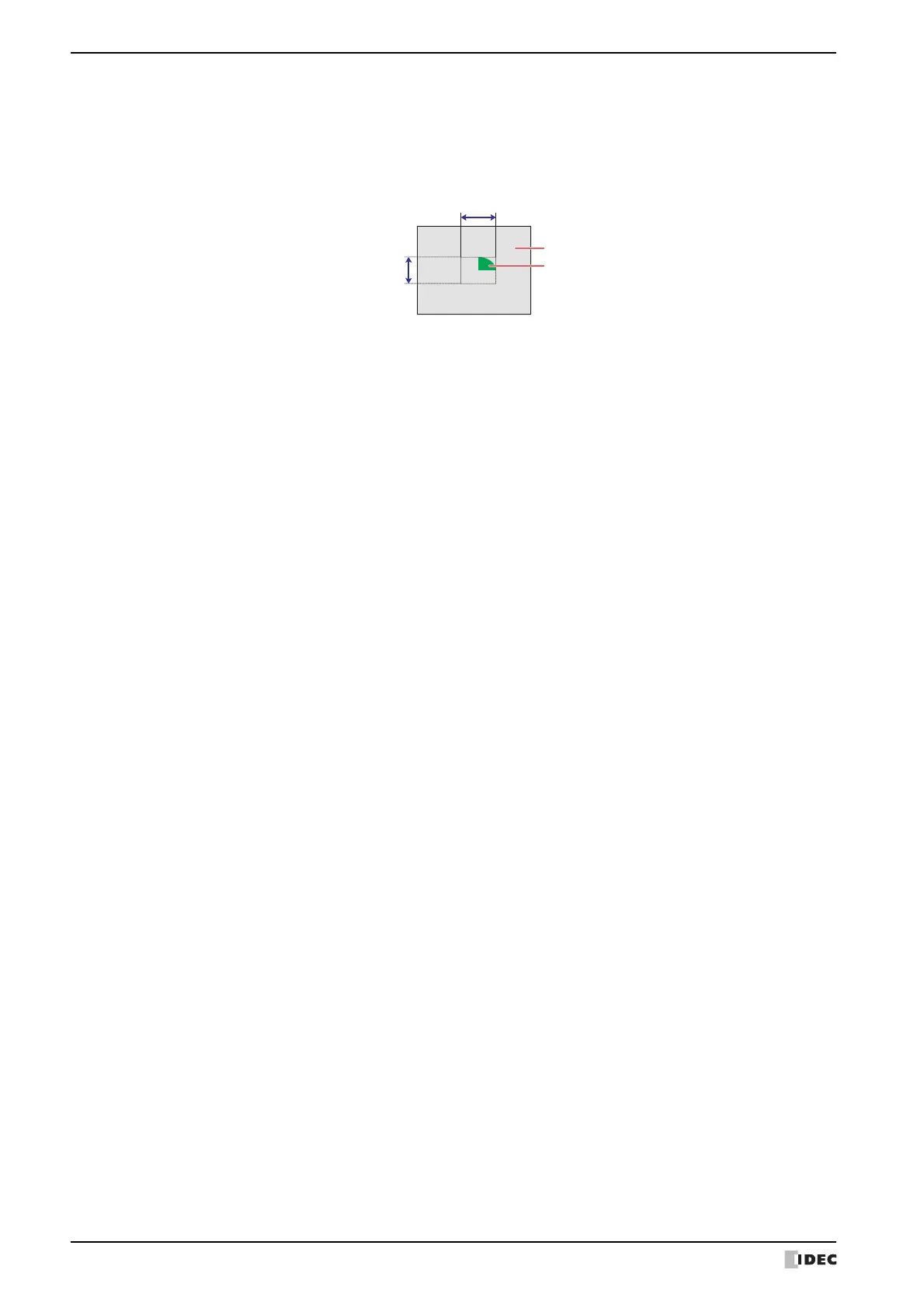

W, H: Specifies the size of the pie in width and height.
W: 1 to (base screen horizontal size)
H: 1 to (base screen vertical size)
Width
Height
Screen
Pie
