WindO/I-NV4 User’s Manual 8-145
8 Selector Switch
8
Buttons

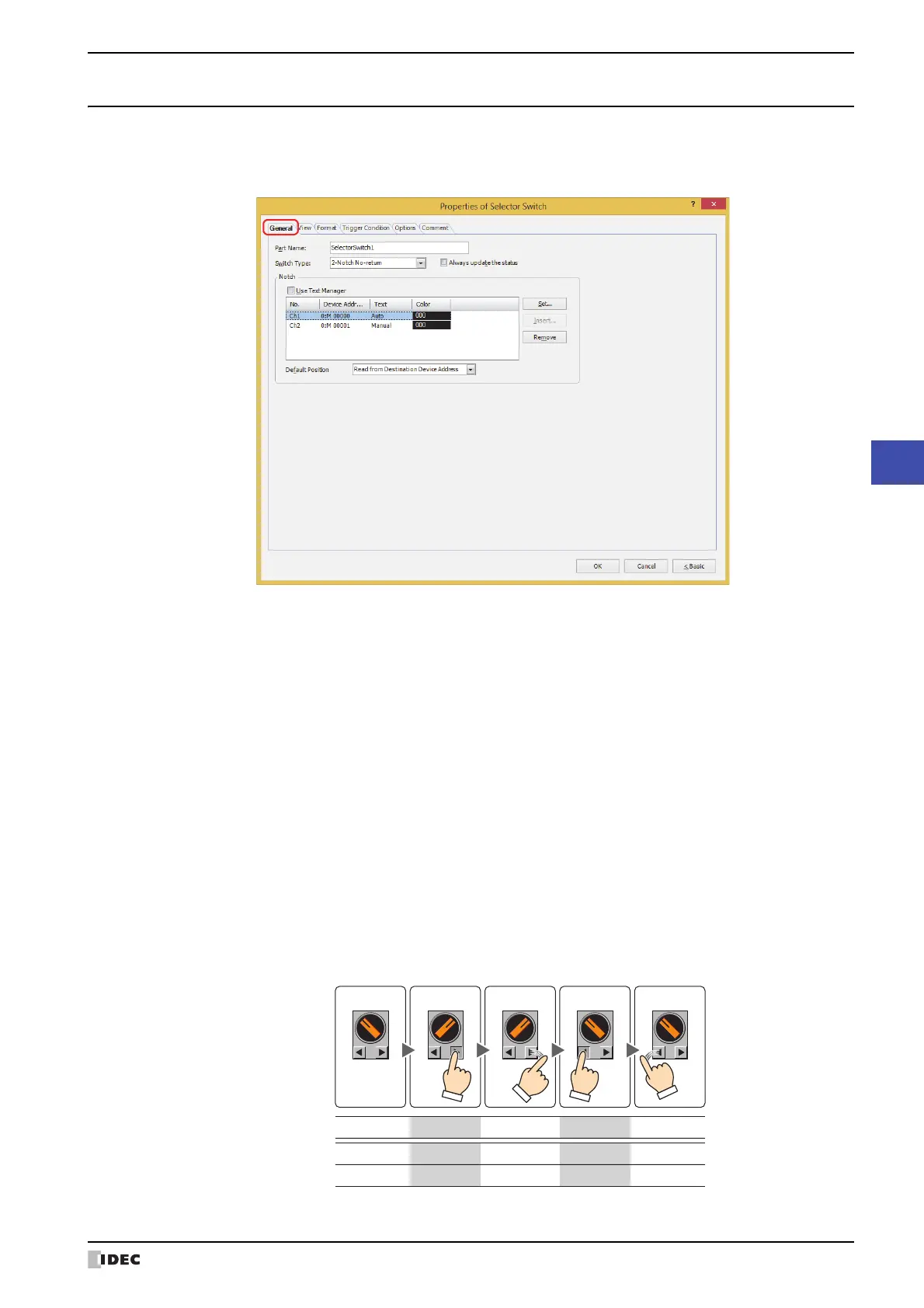

8.3 Properties of Selector Switch Dialog Box
This section describes items and buttons in the Properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Switch Type
The 2-Notch action is as follows.
• When the knob is at Ch1 (left), pressing the right button switches the selector knob to Ch2 (right).
During this action, the device address for Ch1 is set to 0 and Ch2 is set to 1.
• When the knob is at Ch2 (right), pressing the left button switches the selector knob to Ch1 (left).
During this action, the device address for Ch1 is set to 1 and Ch2 is set to 0.
The 3-Notch action is as follows.
• The knob behaves as follows for 3-Notch No-return, 3-Notch R-return, and 3-Notch L-return button:
- Press R-button: knob switches from Ch1 (left) -> Ch2 (middle) -> Ch3 (right), in that order.
- Press L-button: knob switches from Ch3 (right) -> Ch2 (middle) -> Ch1 (left), in that order.
• Switching the knob writes 1 to the device address for the new knob position, and 0 to the device addresses for the
other two channels.
Whether the knob returns and the direction it returns depends on the switch type.
Select the switch type from the following.
2-Notch No-return: The knob does not return when the operator's finger is released.
Release
Default state
Press R-button
Release
Press L-button
0
1
1
0
Write Write
Ch1
Ch2
Action
Operation
and view
Data
written
To Next Page
