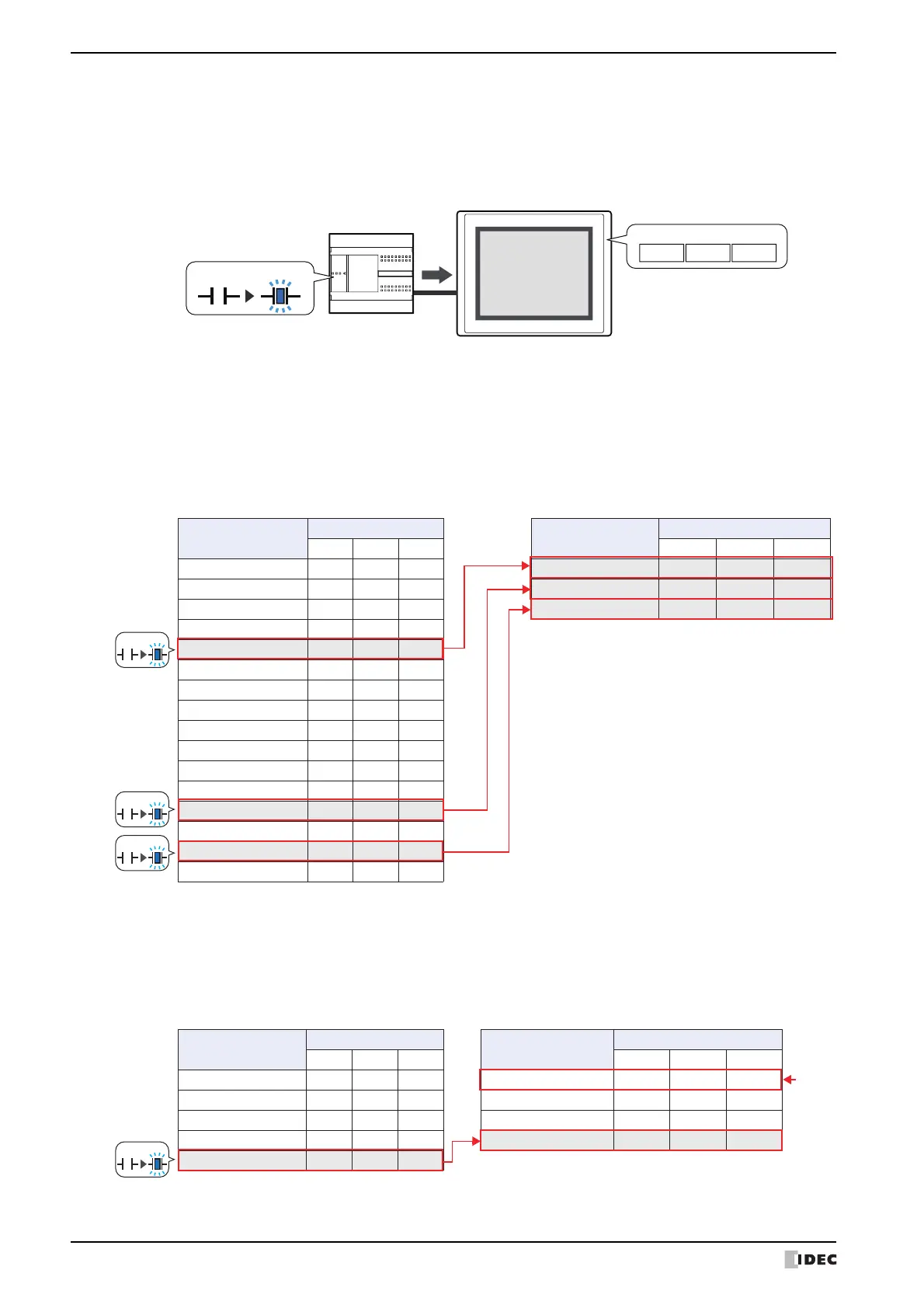

● Sampling Values of Device Addresses when a Value of Device Address Changes
If sample values of device addresses (D100 to D102), when the bit device or the bit number of the word device
configured as the Condition of Writing to Data Storage Area switches from 0 to 1 and the data storage amount in the
data storage area is set to 3, the MICRO/I samples Data Log data as follows. (When Sampling Method is While
satisfying the condition of writing to data storage area)
1 When data sampling starts and the value of device address configured as the Condition of Writing to Data Storage
Area switches from 0 to 1,the MICRO/I stores the values for device addresses D100 to D102.
2 When the value of device address configured as the Condition of Writing to Data Storage Area switches from 0 to 1
the second time, the MICRO/I stores the values for device addresses D100 to D102.
3 When the value of device address configured as the Condition of Writing to Data Storage Area switches from 0 to 1
the third time, the MICRO/I stores the values for device addresses D100 to D102.
4 When the value of device address configured as the Condition of Writing to Data Storage Area switches from 0 to 1
the fourth time, the MICRO/I stores the values for device addresses D100 to D102.
Since the data storage amount in the data storage area is set to 3, the oldest data is deleted in order to make room
for the newest data.
MICRO/I
External device
D100 D101 D102
20 80 2
0
1
0
1
0
1
0
1
I/ORCIM eht no derots ataDValues of Device Addresses
Time
Value
Sampling Time
Value
3 ataD2 ataD1 ataD201D101D001D
01/01/2011 12:01:00 10 70 3 01/01/2011 12:05:00 20 80 2
01/01/2011 12:02:00 20 80 2 01/01/2011 12:13:00 10 70 3
01/01/2011 12:03:00 30 90 1 01/01/2011 12:15:00 30 90 1
01/01/2011 12:04:00 10 70 3
01/01/2011 12:05:00 20 80 2
01/01/2011 12:06:00 30 90 1
01/01/2011 12:07:00 10 70 3
01/01/2011 12:08:00 20 80 2
01/01/2011 12:09:00 30 90 1
01/01/2011 12:10:00 10 70 3
01/01/2011 12:11:00 20 80 2
01/01/2011 12:12:00 30 90 1
01/01/2011 12:13:00 10 70 3
01/01/2011 12:14:00 20 80 2
01/01/2011 12:15:00 30 90 1
01/01/2011 12:16:00 10 70 3
1
2
3
0
1
I/ORCIM eht no derots ataDValues of Device Addresses
Time
Value
Sampling Time
Value
3 ataD2 ataD1 ataD201D101D001D
·
·
·
·
·
·
·
·
·
·
·
·
01/01/2011 12:17:00 40 60 2 01/01/2011 12:13:00 10 70 3
01/01/2011 12:18:00 30 60 1 01/01/2011 12:15:00 30 90 1
01/01/2011 12:19:00 10 90 3 01/01/2011 12:20:00 20 80 2
01/01/2011 12:20:00 20 80 2
4
Deleted
