2 Data Log Function Configuration Procedure
14
Data Log Function

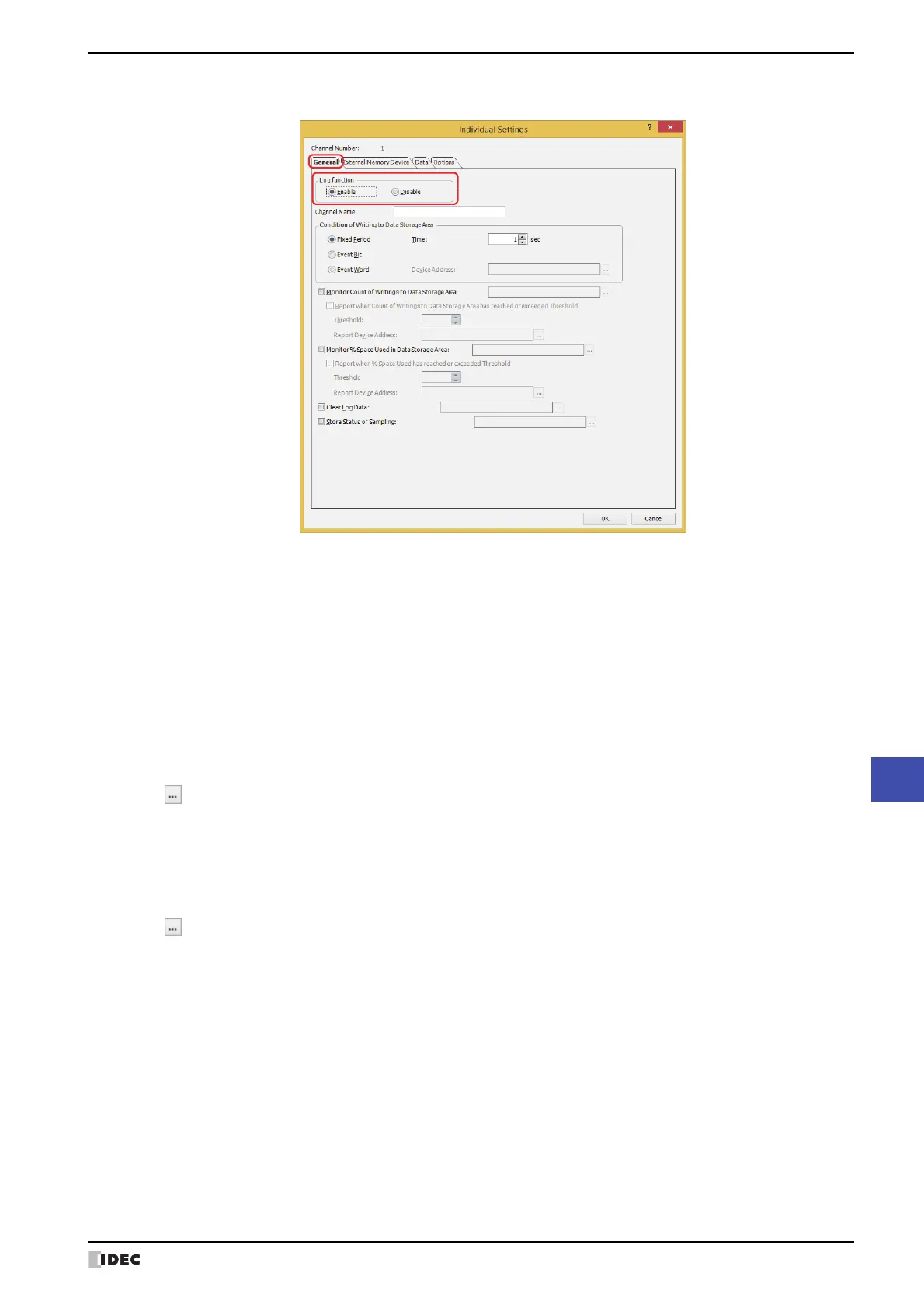

4 On the General tab, under Log function, select Enable.
The channel number selected on the Data Log Settings dialog box is displayed in Channel No.
5 Enter the name of the channel in Channel Name.
6 Under Condition of Writing to Data Storage Area, select the condition that will be used to write the values of the
sampled device addresses to the data storage area.
■ Fixed Period
Writes the value of source device address at a fixed interval. If Fixed Period is selected, specify Time in seconds.
■ Event Bit
Writes the value of source device address each time the monitored bit device or the bit number of the word device
changes from 0 to 1. If Event Bit is selected, specify the device address to monitor as the condition for writing data
in Device Address.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-68.
■ Event Word
Writes the value of source device address each time the value of monitored word device changes. If Event Word is
selected, select the data size for the word device to monitor in Data Size, and specify the device address to monitor
as the condition for Writing data in Device Address.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-68.
