1.3 Data Configuration
The recorded data is composed of a label, time, user name, screen number, event name, part name, device address,
and content after the change.
The relationship between the Operation Log function settings and the recorded data is as follows.
1. Event: Events that occur on the MICRO/I due to operations including user operations. Only the
checked events are recorded.
2. Data storage amount: The amount of data to record. For details, refer to “Data Storage Amount” on page 15-6.
3. Label: When the recorded data is output as a CSV file, this is the text displayed in the label row.
4. Sampling Time: The time the event occurred.
The display type for the date and time varies based on the language configured in Project
Settings, on the Project Details tab, in Language.
YYYY/MM/DD hh:mm:ss: Japanese
MM/DD/YYYY hh:mm:ss: European, Chinese, Taiwanese, Korean, Central
European, Baltic, Cyrillic
5. User Name: The user name when the event occurred.
The user name is only recorded when the Use Security functions check box is selected on
the General tab in the Security dialog box.
6. Screen No.: The screen type and number that was displayed when the event occurred.
Base n: Base screen (n: screen number)
Example: Base 1
Popup n:Popup screen (n: screen number)
Example: Popup 10
Sampling Time User Screen No. Event Name Part Name Details Changed to
12/01/2011 12:00:10 - Base1 Power ON - - -
12/01/2011 12:01:23 User1 Base1 Switch to Base Screen - - Base2
12/01/2011 12:02:45 User1 Base2 Change Users - - User2
12/01/2011 12:03:06 User2 Base2 Change Operation Modes - - System Mode
12/01/2011 12:04:11 User2 Base2 Press buttons BitSwitch - -
12/01/2011 12:04:11 User2 Base2 Write Data to any Device Addresses - LDR0 55
2. Data storage amount
3. Labels
4.
Sampling Time
1. Event
5.
User Name
6.
Screen No.
10.
Changed to
7.
Event Name
8.
Part Name
9.
Device Address

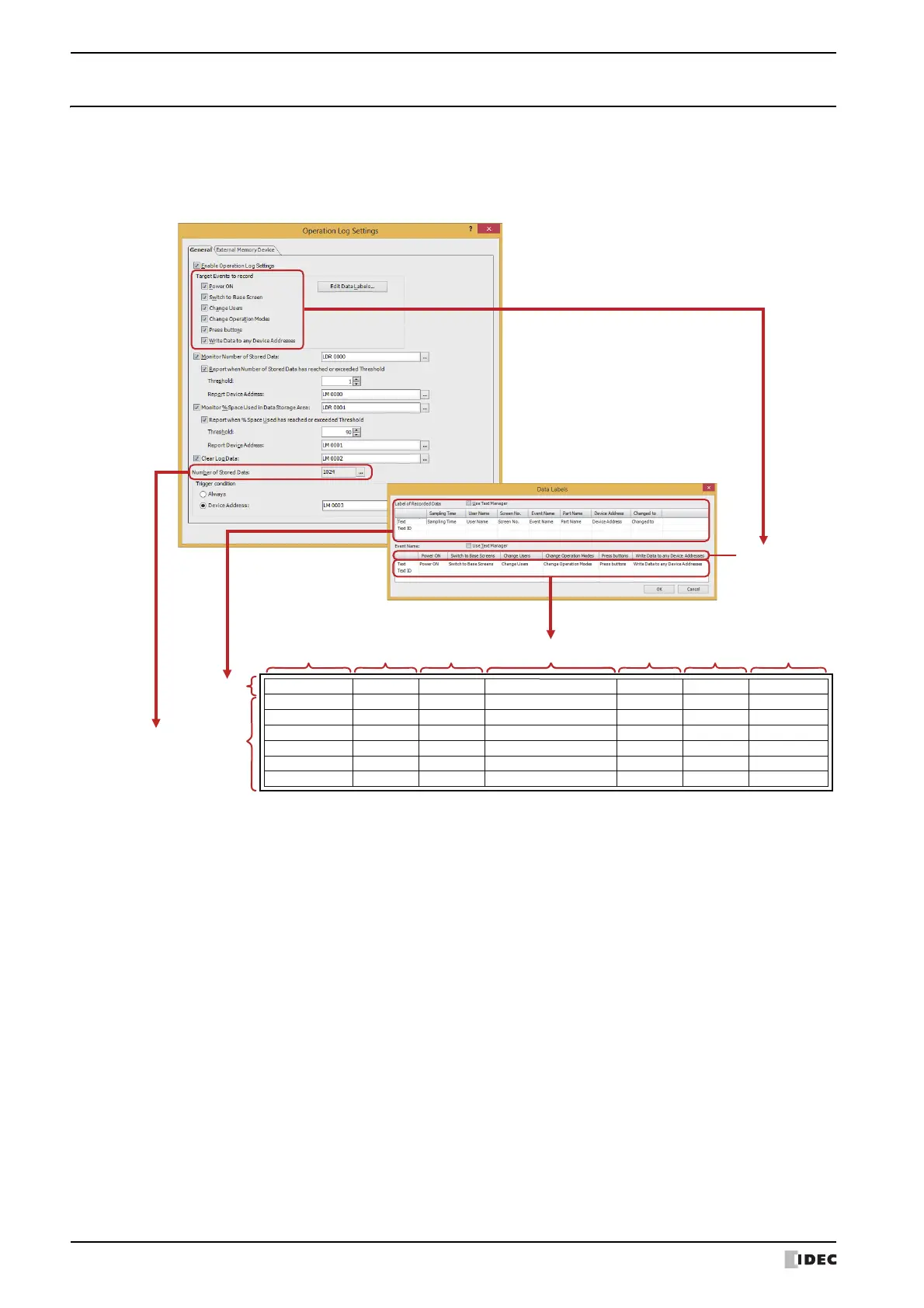

Operation Log settings
Recorded data
