WindO/I-NV4 User’s Manual 18-13
3 Recipe Settings Dialog Box
18
Recipe Function
● Data Tab

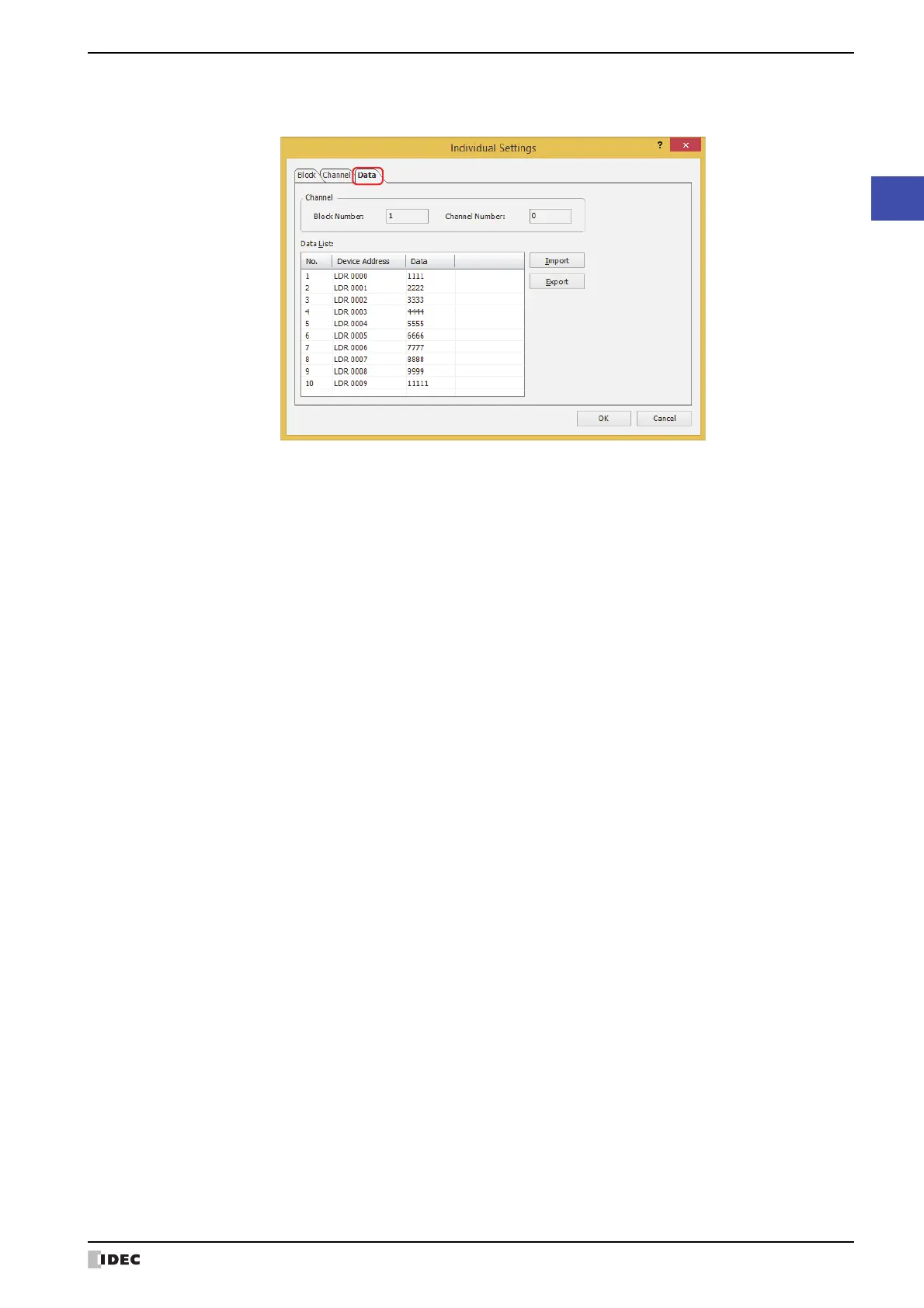

The Data tab is used to configure recipe values written to device addresses.
■ Channel
Shows the block number and the channel number for the selected channel.
■ Data List
Enter the recipe values to write to device addresses for each number in the selected channel.
■ Import
Displays the Open dialog box.
Select a recipe file and click Open to overwrite the data in Data List with the selected recipe file.
■ Export
Displays the Save As dialog box.
Select the location to save the recipe file, enter a file name, and then click Save to save the recipe file for the selected
channel.
The saved recipe file can be edited using Notepad, commercially available text editors, and spreadsheet software.
Block Number: Shows the block number for the channel selected in Settings.
Channel Number: Shows the channel number for the channel selected in Settings.
No.: Shows the data numbers for the amount of data specified by Number of Data.
Device Address: Devices are sequentially configured starting from the device address specified by Top Device
Address on the Channel tab.
Data: Double click a cell to enter a recipe value. The value that can be configured varies based on
Data Type and Display Type configured on the Channel tab.
When Read-only is selected under Trigger Setting on the Block tab, entering recipe values
is unnecessary.
