● Device Monitor Configuration
■ Title Bar
Displays the title, (Move) button, and (Close) button.
■
Switches the display type for the current value of device address. Switches between DEC and HEX.
■ (Device Address)
The registered device address is displayed.
■ (Value)
The current value of device address is displayed.
■ (Focus)
Highlights the selected device address.
■ 
Moves the focus up by one line.
■ 
Moves the focus down by one line.
■ Data
Changes the value of the selected device address. Press to display the Write Data Screen. For details, refer to
“Changing Value of Device Address” on page 25-24.
■ Del
Deletes the selected device address.
■ Select
Registers a selected device address. Press to display the Select Device Address screen. For details, refer to “Device
Address Registration” on page 25-22.
Device
LM
LM
Data Del Select
0
1
1
2

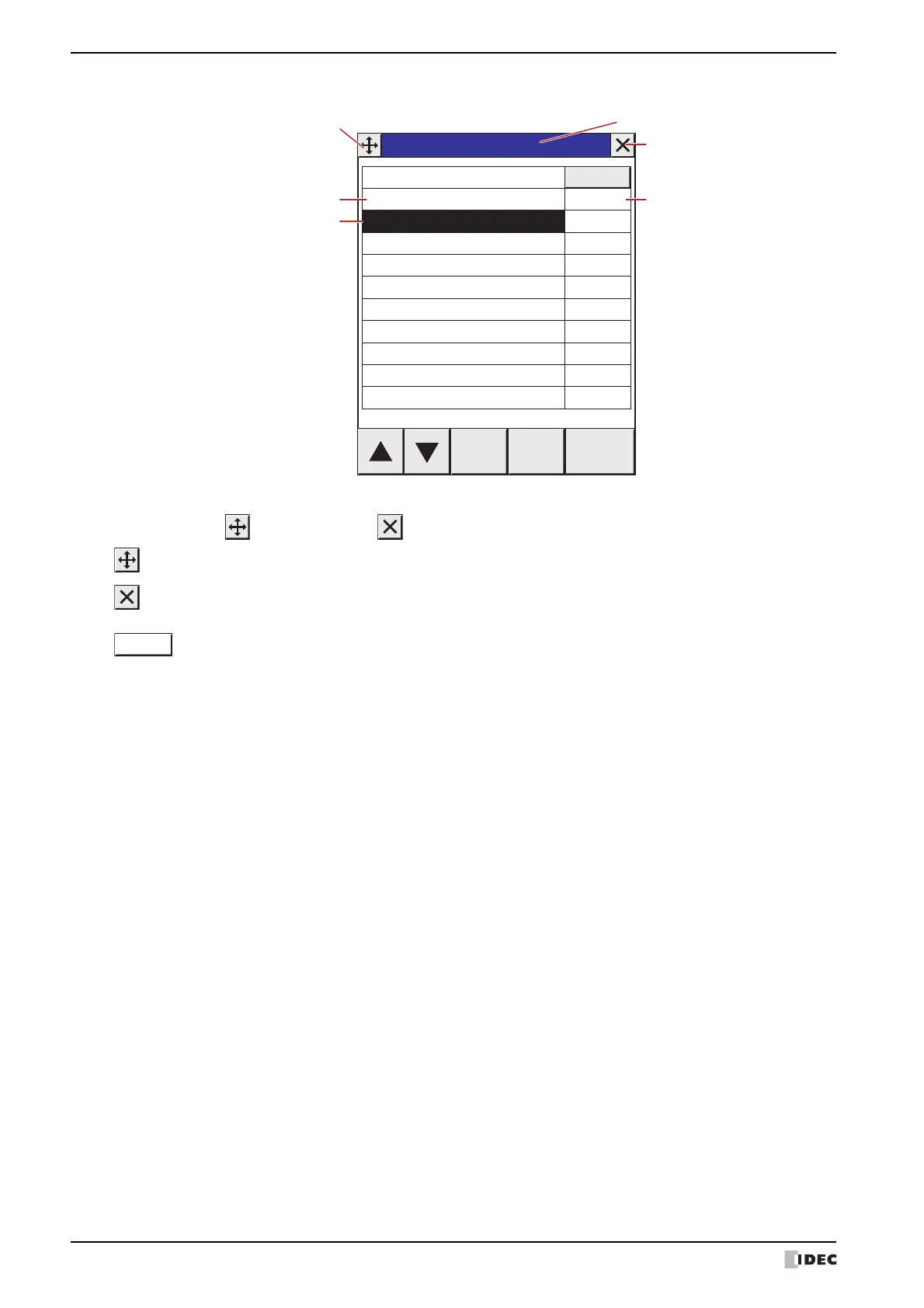

Device Monitor
Dec/Hex
Close button
(Value)
Move button
(Device Address)
(Focus)
Title bar
(Move) button: Moves the Device Monitor.
(Close) button: Closes the Device Monitor.
