5 User Communication
3-40 WindO/I-NV4 User’s Manual

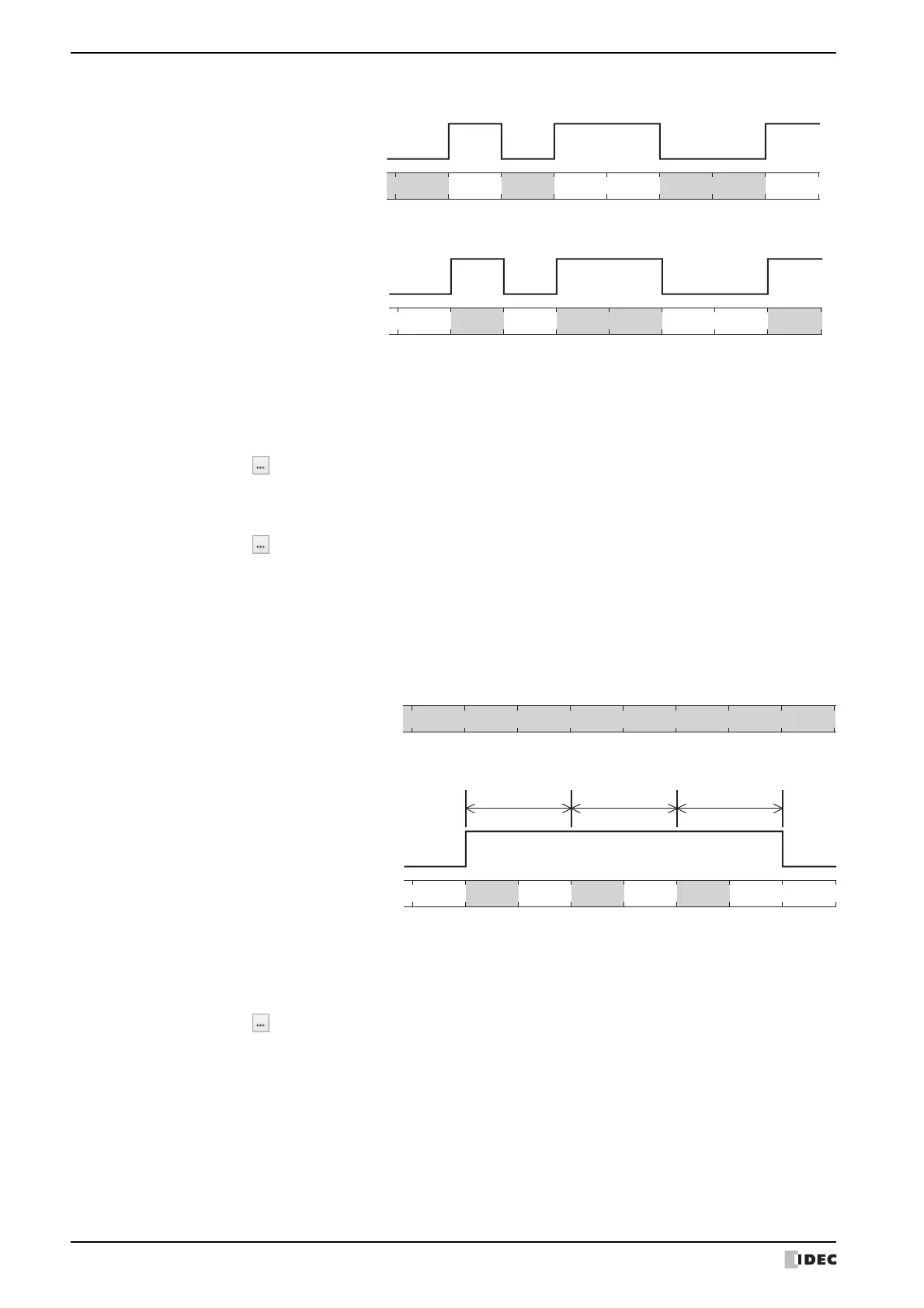

Inching is selected as Type:
While OFF: Ready to receive data when the value of device address is 0.
While satisfying the condition:
Ready to receive data while the condition is satisfied.
Data Type: Select the data type handled by the conditional expression.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
Device Address:
Specifies the bit device or the bit number of the word device to serve as condition. You can only specify
the internal device.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter
2 “5.1 Device Address Settings” on page 2-68.
Condition: Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expressions
configuration procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-71.
Function Key: Select the function key (F1 to F12) assigned to the command.
Trigger Type: A condition for data transmission is selected from the following.
Always Enabled: Data is always transmitted at a configured execution interval while a function key is
pressed.
While satisfying the condition:
Data is transmitted at a configured execution interval while a condition is satisfied.
Data Type: Select the data type handled by the conditional expression.
Can only be set if Satisfy the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
Condition: Sets the condition formula.
Can only be set if Satisfy the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expressions
configuration procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-71.
1
0
Enabled EnabledEnabled
Value of Device Address
Action
Enabled Enabled Enabled
Condition
Satisfied
Not satisfied
Action
Action
Always Enabled
Execution Execution Execution
Satisfied
Not satisfied
Execution Interval Execution Interval Execution Interval
Condition
Action
