1 Bit Devices
33-4 WindO/I-NV4 User’s Manual

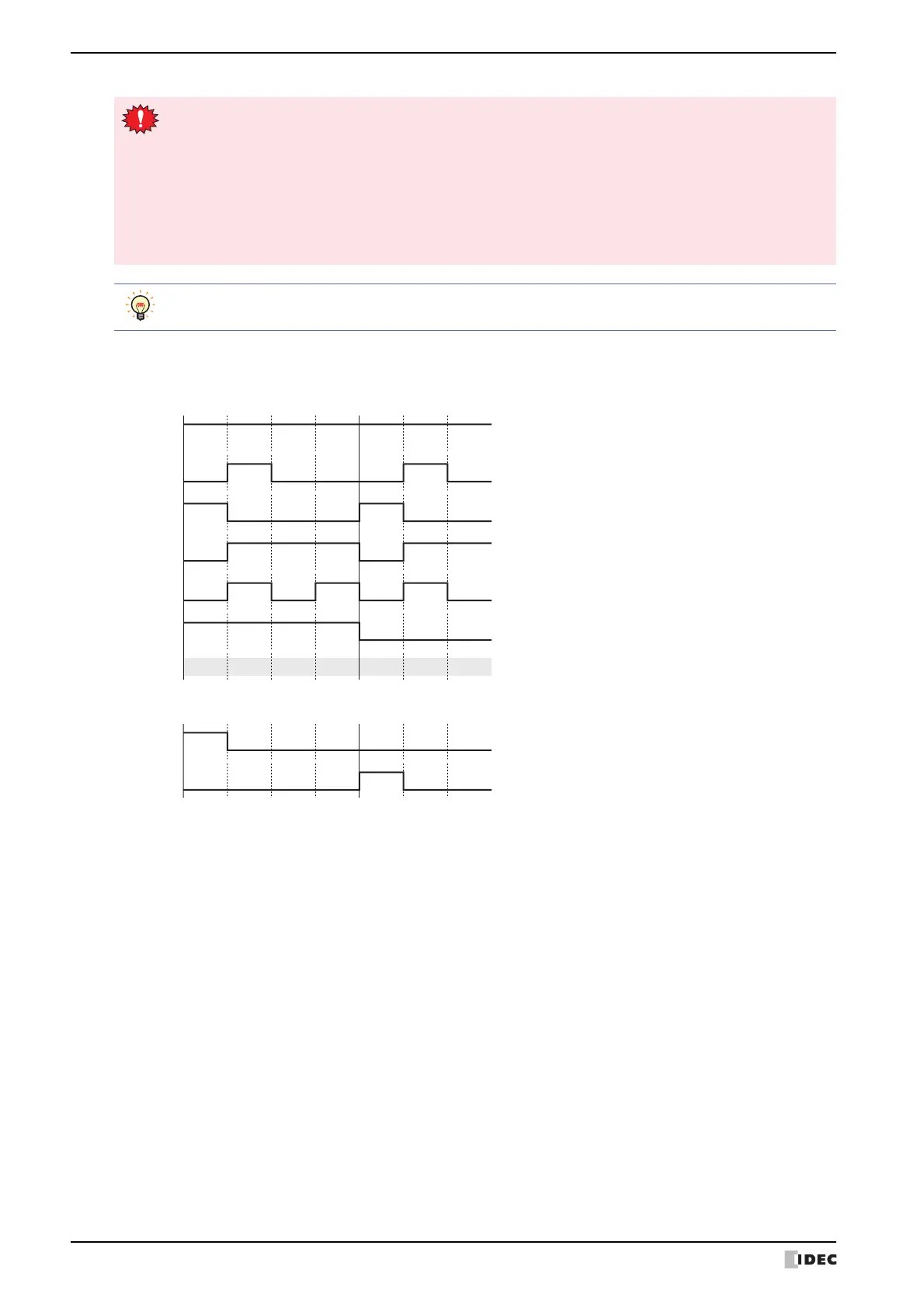

This operation of this relay is illustrated in the timing chart below.
• Transfer of the LSM10 Keep Relay and Keep Register to the flash memory can take an excess of one
second. Writing to the Flash Memory can be repeated a maximum of 100,000 times. Keep writing to the
Flash Memory to a minimum.
• When there is no remaining battery power, data transferred with LSM10 will be restored once the power
to the MICRO/I has been turned on.
• LSM1, 2, 3 and 11 also operates when switches the Text Group.
• Once a value of LSM18, 20 and 22 changes from 0 to 1, it remains at a value of 1 until MICRO/I is reset
or 0 is written, then the value is 0.
A scan refers to a period during which all parts placed on a screen are processed. It is not related to the
period of reading values of external device addresses.
ON
OFF
LSM0
ON
OFF
LSM1
ON
OFF
LSM2
ON
OFF
LSM3
ON
OFF
LSM4
ON
OFF
LSM8
Operation
processing
1st scan
ON
OFF
LSM5
ON
OFF
LSM12
2nd scan 3rd scan 4th scan 1st scan 2nd scan 3rd scan
Popup Screen open
↓
Popup Screen open
↓
Power on
↓
Basescreen switch
↓
