WindO/I-NV4 User’s Manual 35-3
1 HG5G/4G/3G/2G-V
35

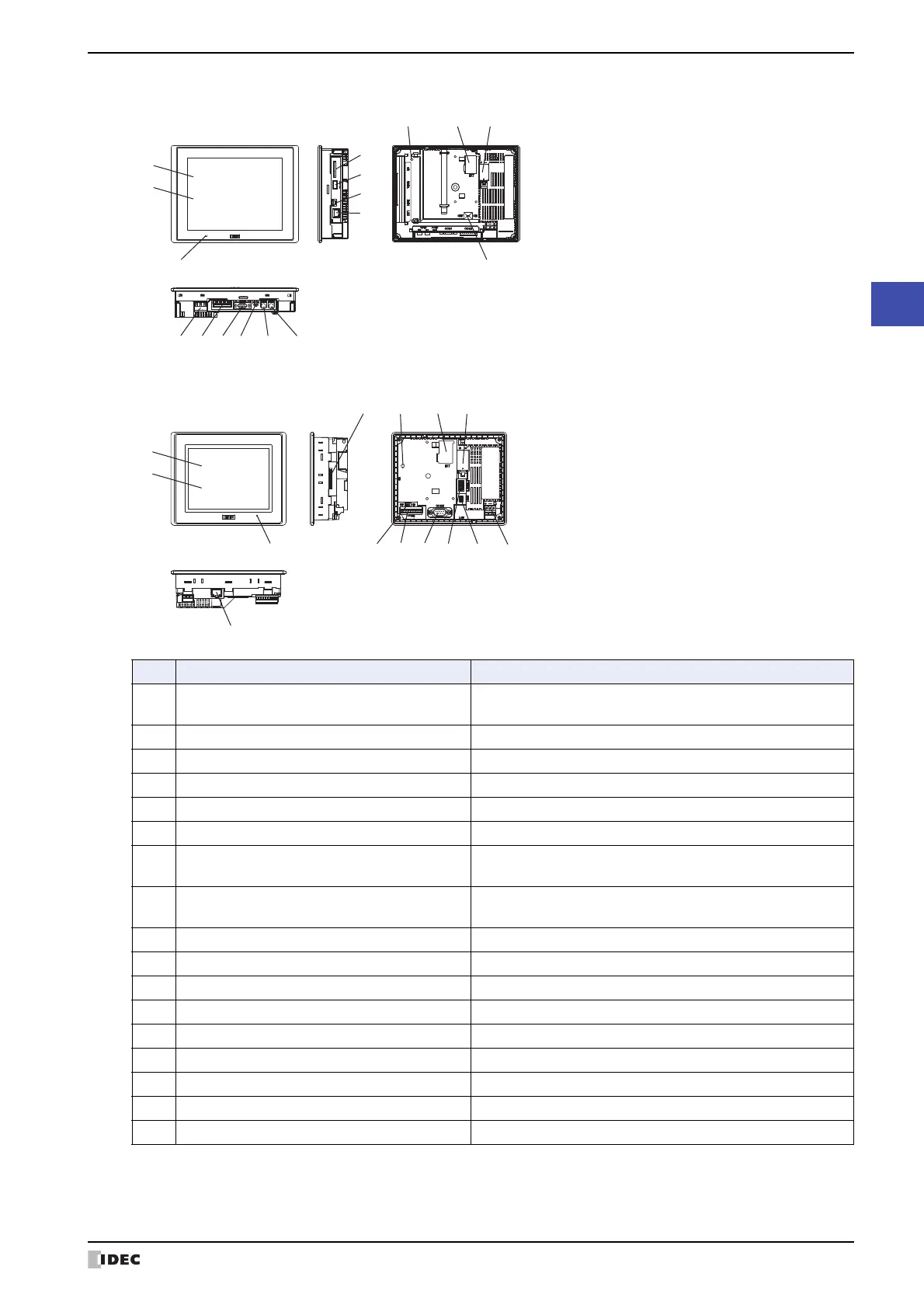

MICRO/I Specifications
■ HG3G-V8 (8.4inch)
■ HG2G-V (5.7inch)
(2)
(1)
(3)
(11)
(10)
(9)
(8)
(12) (13) (14)
(4)(5)(6)(7)(16)(17)
(15)
No. Name Description
(1) POWER LED
Green (lit) : Normal Operation (Power is ON.)
Not lit : Power is off.
(2) Display
(3) Touch Panel
(4) Power Supply Terminal
(5) Serial Interface (COM2) RS232C, RS422/485 Connector : Terminal Block 9-pin
(6) Serial Interface (COM1) RS232C, RS422/485 Connector : D-sub 9-pin
(7) Audio Interface (AUDIO OUT)
LINE OUT (Stereo) Connector : Mini Jack (φ3.5mm)
(Except for HG2G-V)
(8) Ethernet Interface (LAN)
IEEE802.3u 10BASE-T/100BASE-TX Connector : RJ-45
(With Auto MDI/MDI-X function)
(9) USB Interface (USB1) USB2.0 (Device) Connector : Mini-B
(10) USB Interface (USB2) USB2.0 (Host) Connector : Type A Output current : 5V 500mA
(11) Memory Card Interface (SD) For SD memory card
(12) SD Memory Card Access Lamp
(13) Expansion Module Interface (EXT) For IDEC MICROSmart Expansion Modules
(14) Battery Cover
(15) Terminating Resistor Selector Switch For COM2 RS422/485 interface
(16) Video Interface (VIDEO IN1) NTSC/PAL Connector : Pin Jack (Except for HG2G-V)
(17) Video Interface (VIDEO IN2) NTSC/PAL Connector : Pin Jack (Except for HG2G-V)
(2)
(1)
(3)
(11)
(10) (9)
(8)
(12)
(13)(14)
(4)(5)(6)(15)
