3 HG2G-5T, HG1G
35-42 WindO/I-NV4 User’s Manual
3.3 Part Names
â–  HG2G-5T
No. Name Description
(1) POWER LED
Green (lit) : Normal Operation (Power is ON.)
Not lit : Power is off.
(2) Display
(3) Touch Panel
(4) Power Supply Terminal
(5) Serial Interface (SERIAL1) RS232C, RS422/485 Connector : Terminal Block 9-pin
(6) Ethernet Interface (LAN)
IEEE802.3u 10BASE-T/100BASE-TX Connector : RJ-45
(With Auto MDI/MDI-X function)
(7) Battery Cover
(8) Terminating Resistor Selector Switch For RS422/485 interface
(9) Mounting Clip Position
(10) USB Interface (USB) USB2.0 (Device) Connector : Mini-B
(11) USB Interface (USB2) USB2.0 (Host) Connector: Type A Output current : 5V 500mA

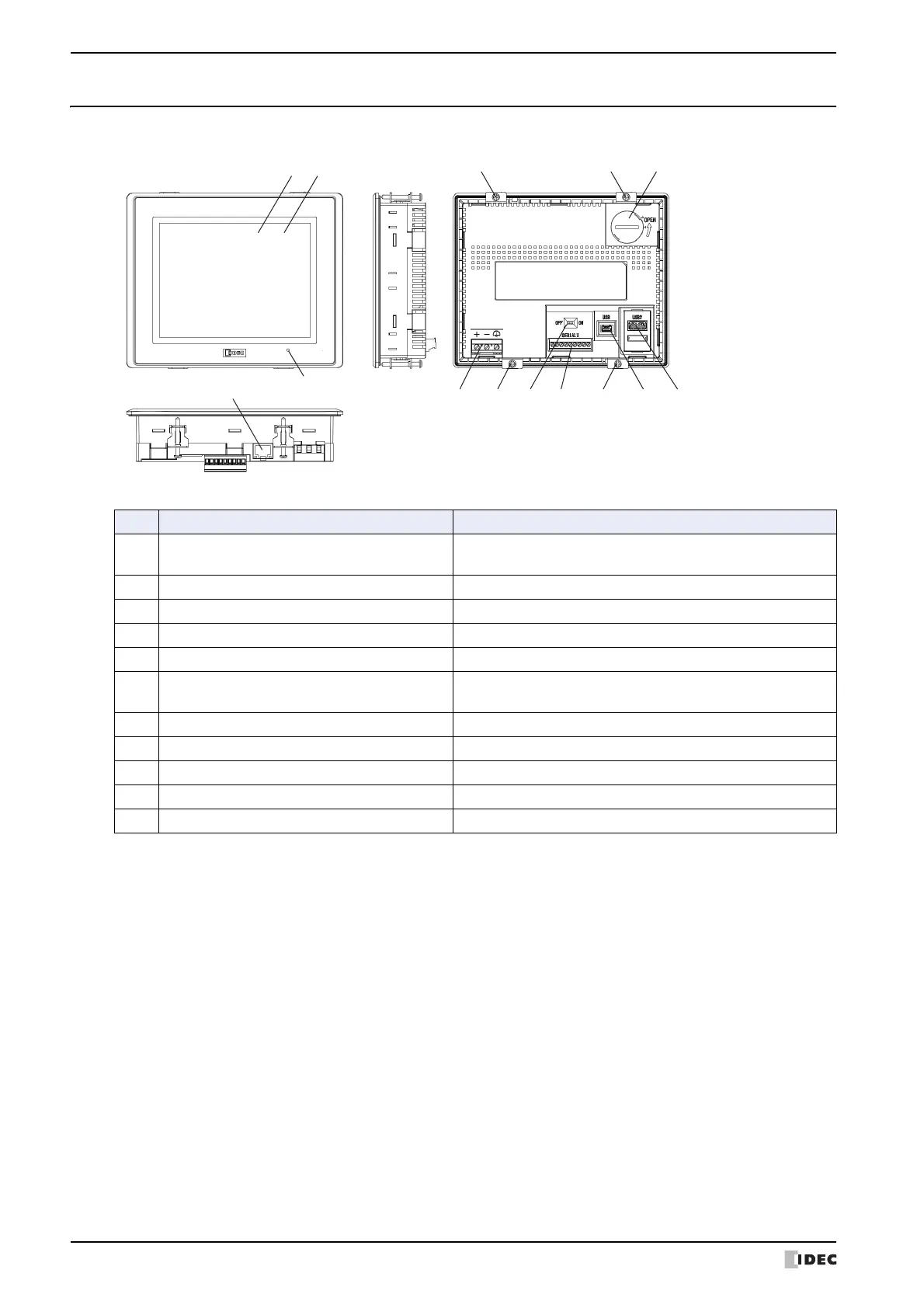

(2)
(3)
(7)(9)(9)
(1)
(6)
(4) (9) (8) (5) (9) (10) (11)
