WindO/I-NV4 User’s Manual 35-47
3 HG2G-5T, HG1G
35
MICRO/I Specifications
Notes related to emissions

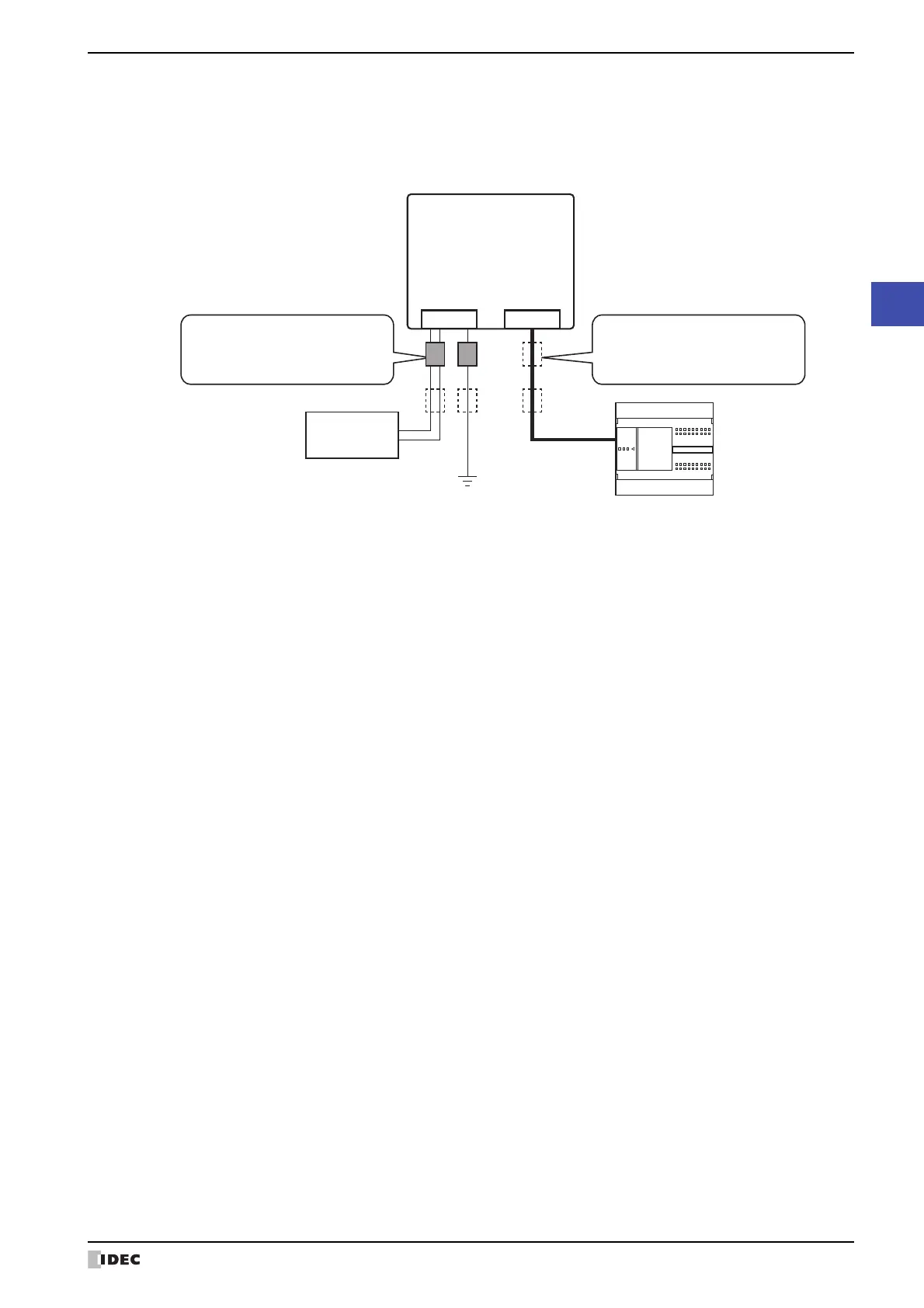

In order to meet the emission specifications for the HG2G-5T, HG1G, attach a ferrite core to the power cables and
communication cables.
Recommended ferrite core: ZCAT3035-1330 manufactured by TDK Corporation
Power supply
section
+- FE
Communication
section
External device
MICRO/I
DC power supply
Attach the ferrite core near the
power supply section of the power
cables connected to the MICRO/I
unit.
Attach the ferrite cores according to
the usage conditions of the external
devices, surrounding environment, and
the cables.
