4 HG1P
35-66 WindO/I-NV4 User’s Manual

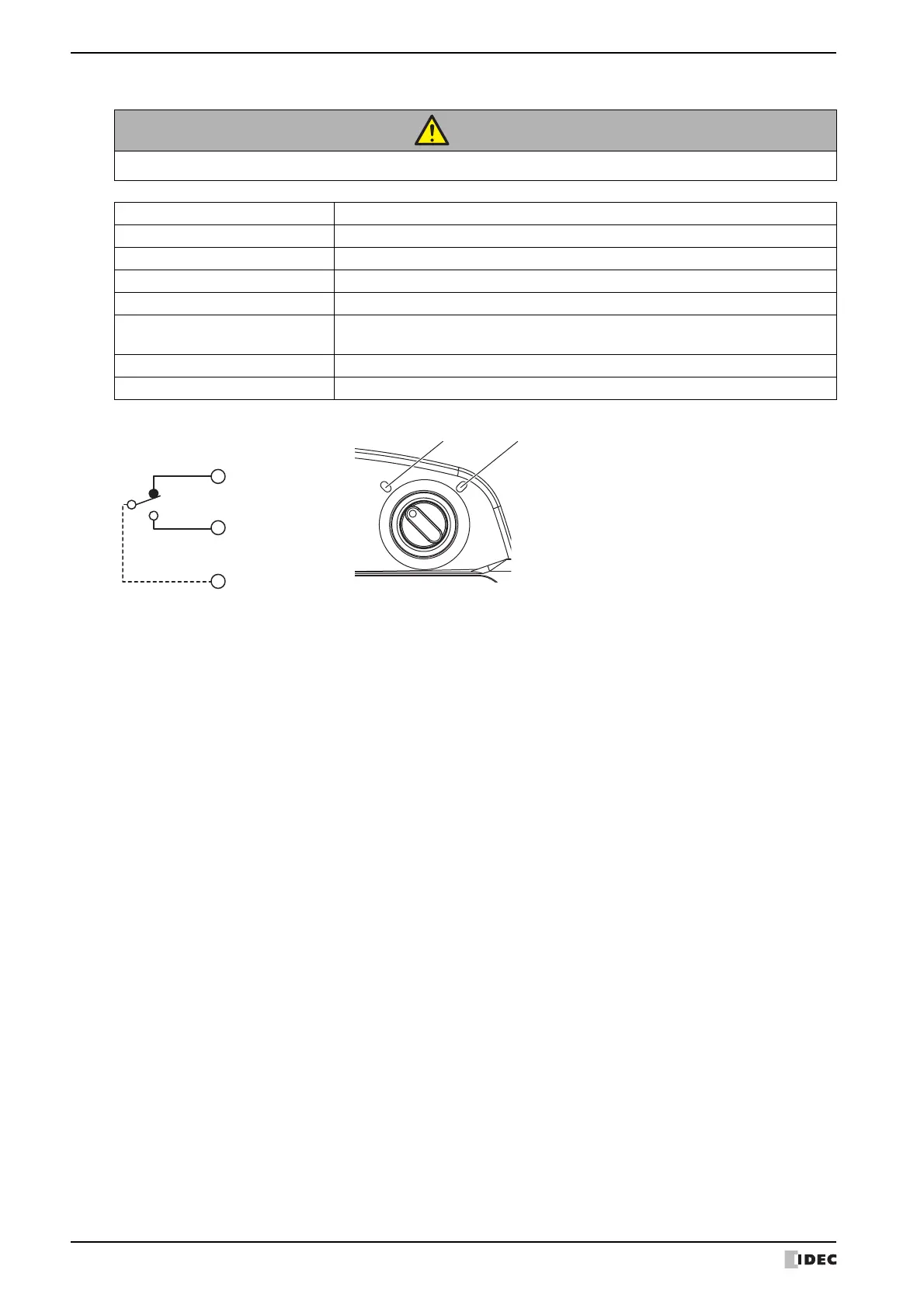

Selector Switch (φ16 or Non-Illuminated model)
When at position (1), pin 1 (C_NC1) and pin 13 (C_C1) are connected.
When at position (2), pin 2 (C_NO1) and pin 13 (C_C1) are connected.
CAUTION
Use the selector switch through the HG1P optional cable as a control signal for external devices.
Part Number (Manufacturer) LB6S-2T1 (IDEC)
Number Mounted 1
Contact SPDT (external wiring)
Contact Rating 0.1A/DC30V (resistance load)
LED Non-Illuminated
Damage Limits
Mechanical: 250,000 operations minimum
Electrical: 100,000 operations minimum
Switching detent 90° - 2-positions
Specification Stops at all positions (manual)
1 (C_NC1)
2 (C_NO1)
13 (C_C1)
Removable Connector
Pin Number (Name)
(1) (2)
