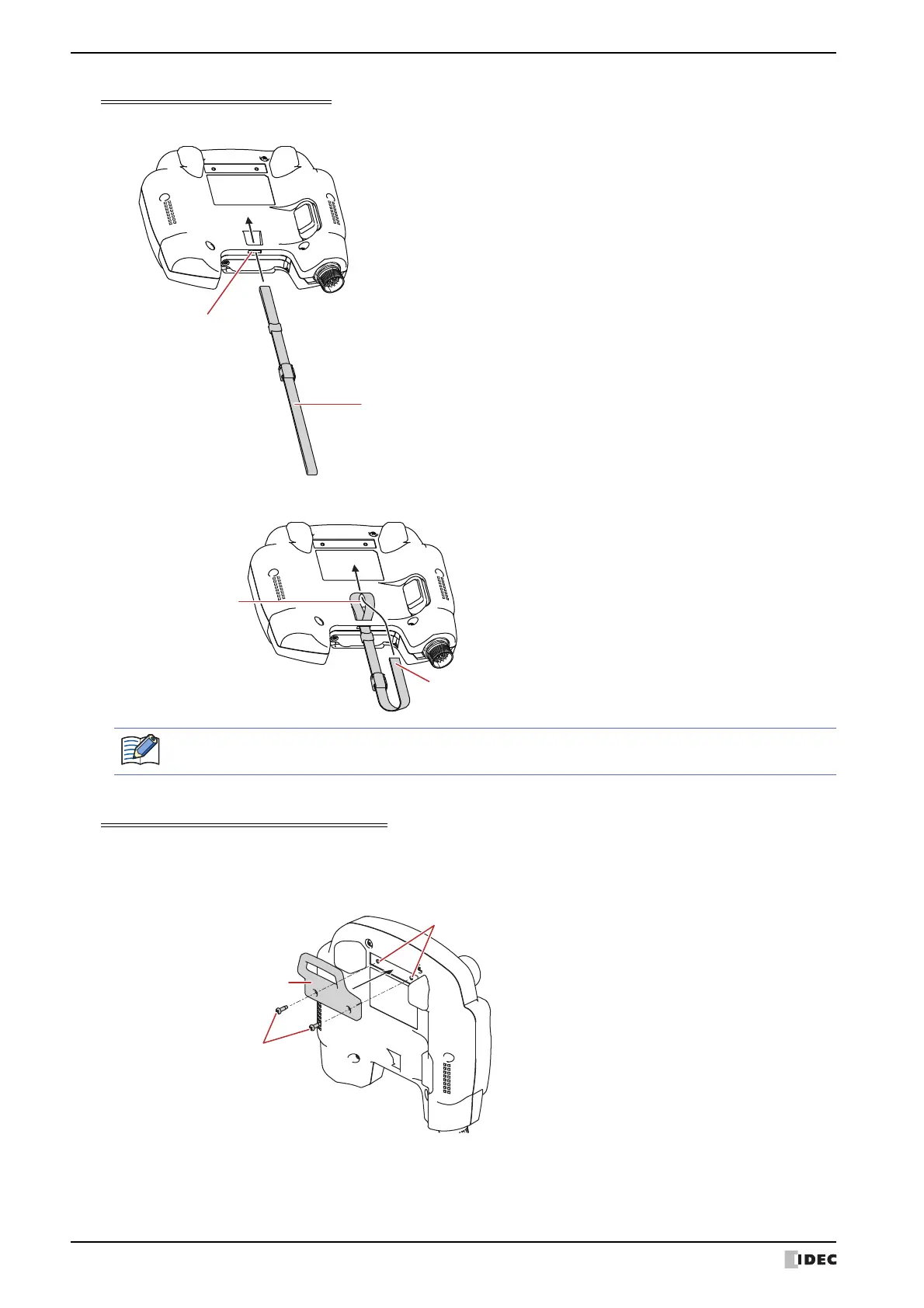

Installing the Hand Strap (HG9Z-PS4)
1 Pass the hand strap through the hand strap mounting part.
2 Pass the end of the strap through the loop, keep holding the end, and pull it tight.
Installing the Wall-Mounting Hook (HG9Z-PK3)
1 Fit the indented surface of the wall-mounted hook into the HG1P.
2 Use the wall-mounted hook screws (M3×10), and tighten in two locations to the recommended tightening torque (0.6
N·m).
Hand Strap
Hand Strap Hole
The End of the Strap
The Loop of the Strap
Be careful when pulling the strap tight because the strap may be damaged if excessive force is used.
Wall-Mounted Hook Screw
Wall-Mounted Hook
Mounting Hole for Wall-Mounted Hook
