WindO/I-NV4 User’s Manual 7-29
3 Text
7
Drawings
■ Animation
Selects whether or not to make the text flash.
■ Shadow Color
Selects the shadow color for the text (color: 256 colors, monochrome: 16 shades).
Click this button to display the Color Palette. Select a color from the Color Palette.
This option can only be configured when Shadow is selected for Style.
■ Coordinates
■ Use Text Area
Select this check box to specify a text area and adjust the display position of the text with the specified text area.
■ Place on the Top Layer
Select this check box to display the text on the top layer. The text will have precedence when other drawings and
parts are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts Overlapping” on page 6-5.
Normal: The text does not flash.
Flash: The text flashes.

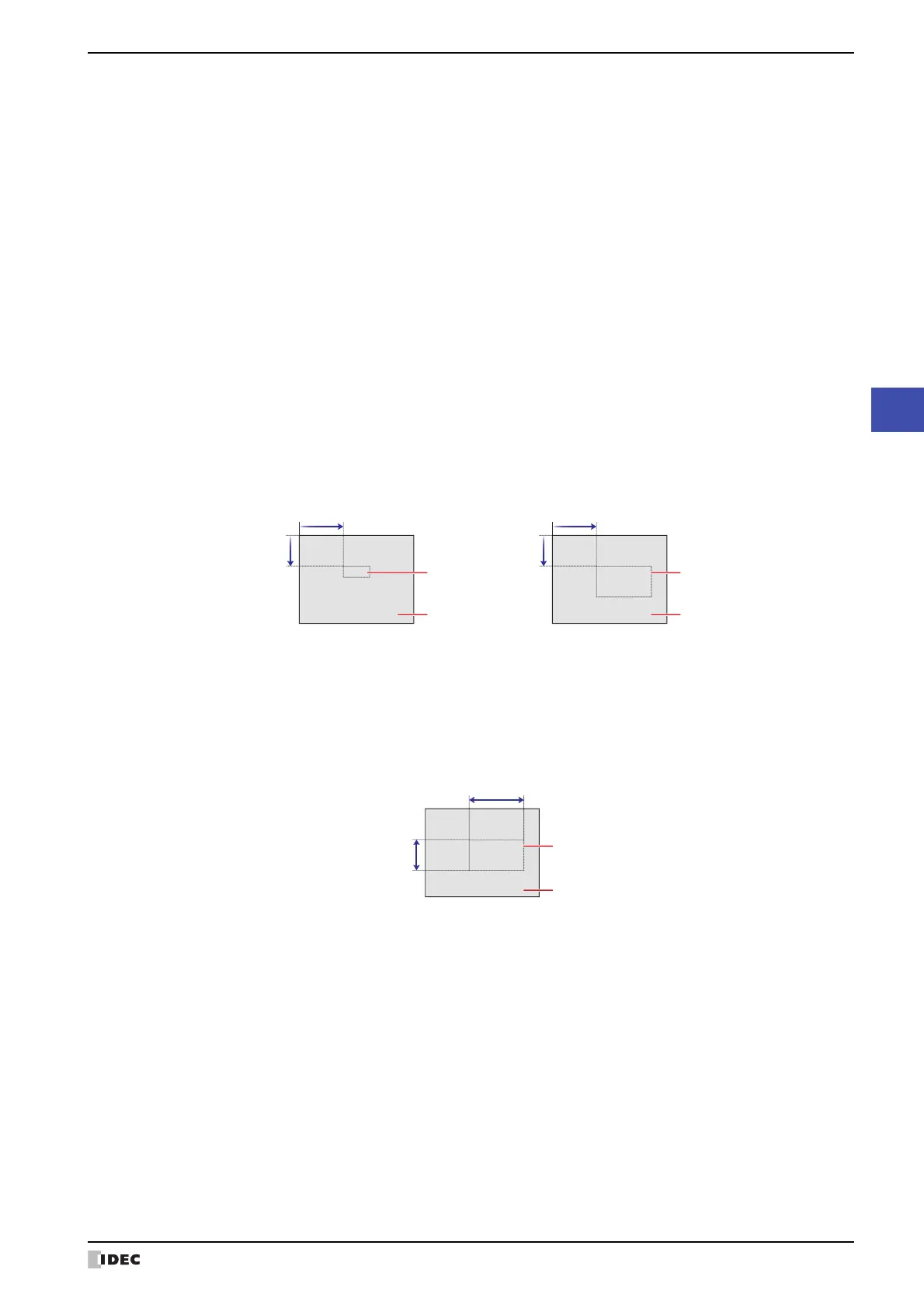

X, Y: Specifies the display position of the text or the text area in coordinates.
With the upper-left corner of the screen as the origin, the upper-left corner of the rectangle that
circumscribes the text or the upper-left corner of the text area is the X and Y coordinates.
When the Use Text Area check box is cleared, the coordinates are for the text. When the Use Text
Area check box is selected, the coordinates are for the text area.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
IDEC IDEC
(0, 0)
X
Y
(0, 0)
X
Y
Screen
Text
Screen
Text area
When Use Text Area is cleared When Use Text Area is selected
W, H: Specifies the size of the text area in width and height.
W: 5 to (base screen horizontal size)
H: 5 to (base screen vertical size)
IDEC
Width
Height
Screen
Text area
To Next Page
