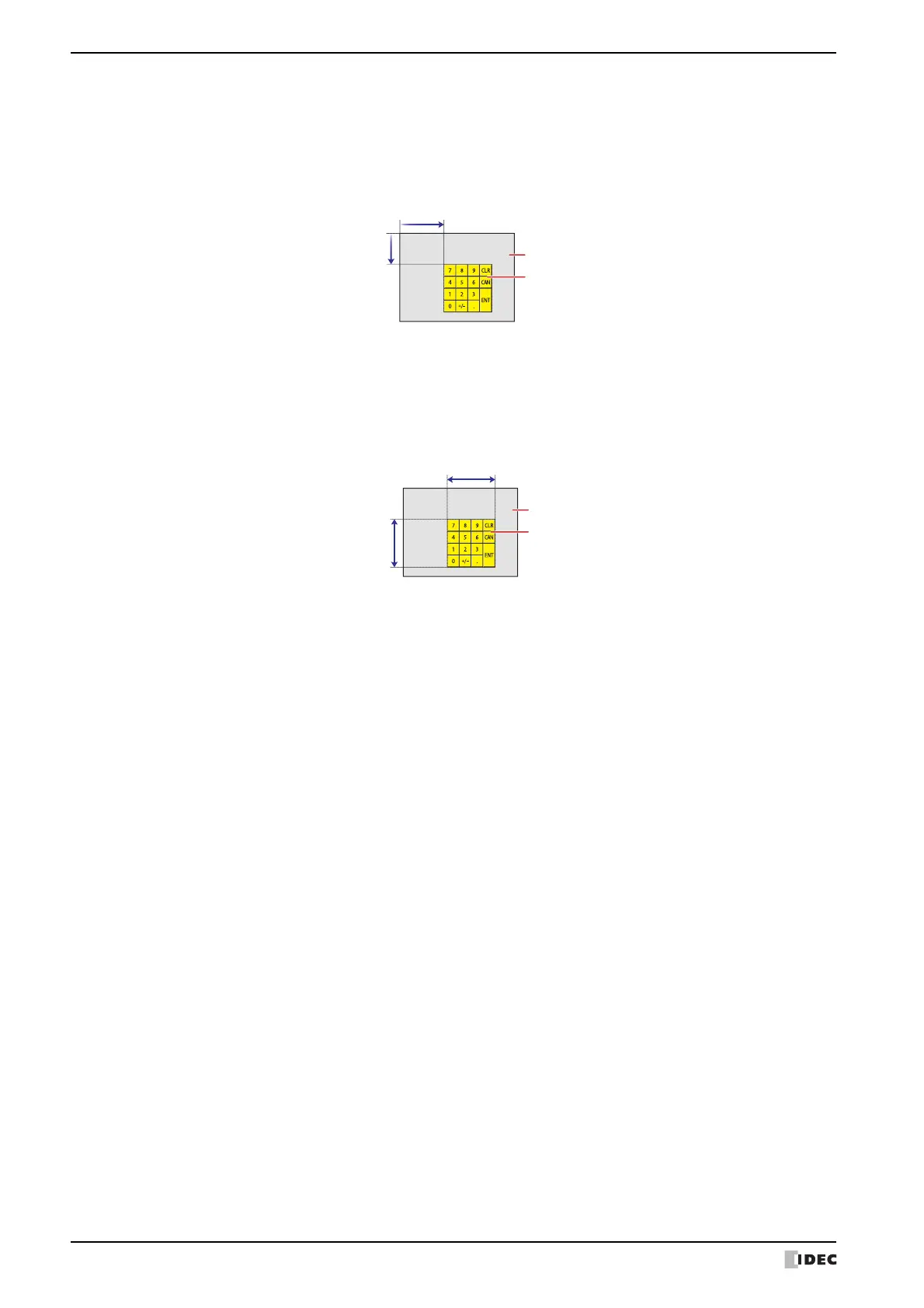

■ Coordinates
■ Size
X, Y: Specify the display coordinates of the Keypad.
X and Y specify the upper left corner of the Keypad using the upper left corner of the screen as the origin.
X: 0 to (base screen horizontal size - 1)
Y: 0 to (base screen vertical size - 1)
(0, 0)
X
Y
Screen
Keypad
W, H: Specify the size of the Keypad by specifying width and height.
W: 20 to (base screen horizontal size)
H: 20 to (base screen vertical size)
Width
Height
Screen
Keypad
