Trigger Type: Selects the condition to display the Selector Switch from the following.
Always visible: The Selector Switch is always displayed.
While ON: Displays the Selector Switch when the value of device address is 1.
While OFF: Displays the Selector Switch when the value of device address is 0.
While satisfying the condition: Displays the Selector Switch when the condition is satisfied.
Data Type: Selects the type of data handled by the conditional expression for the visible condition.
This option can only be configured if While satisfying the condition is selected for Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
Device Address:
Specifies the bit device or the bit number of the word device to serve as the visible condition.
This option can only be configured when While ON or While OFF is selected for Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2
“5.1 Device Address Settings” on page 2-68.
Condition: Specifies the conditional expression for the visible condition.
This option can only be configured when While satisfying the condition is selected for Trigger
Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression
configuration procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-71.
Comment: Used for entering a comment for the visible condition. The maximum number is 80 characters.

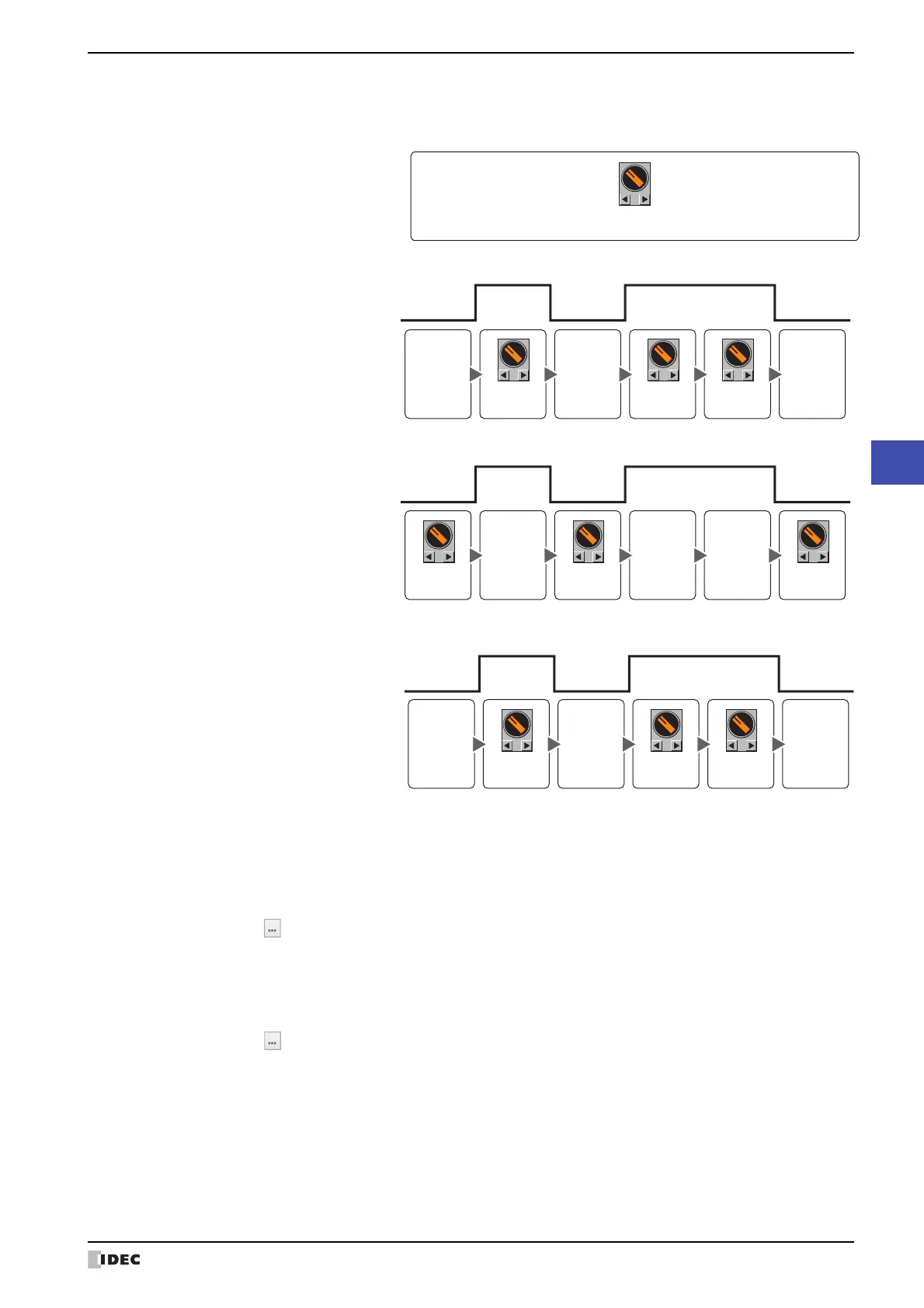

Selector Switch
state
Always show
1
0
Hide
Show
Hide Hide
Show Show
Value of
device address
Selector
Switch state
Value of
device address
1
0
Show Show ShowHide Hide Hide
Selector
Switch state
Hide Hide Hide
Show Show Show
Selector Switch
state
Satisfied
Not satisfied
Condition
