1 Pilot Lamp
9-4 WindO/I-NV4 User’s Manual

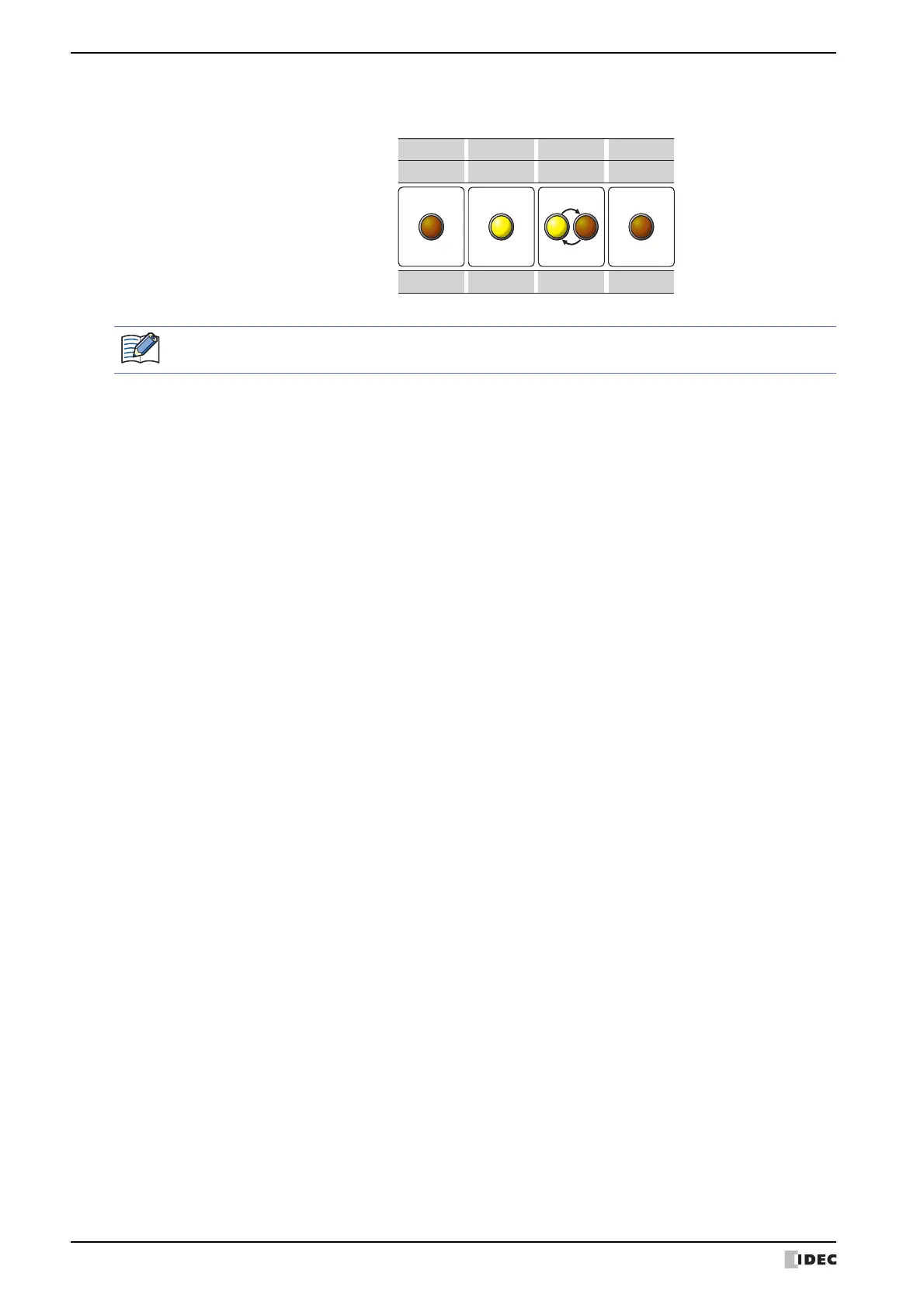

Example: When Action Mode is Flash (ON + Flash), Flash Trigger Device Address is M0, and on the Trigger
Condition tab, Trigger Type is While ON, Device Address is LM0
0
Displayed drawing object
Trigger Condition: Device Address LM0 value
1 1 0
0
Action Mode: Value of Flash Trigger Device Address M0
0 1 1
Displays OFF
drawing object
Action
Displays ON
drawing object
Flashing
Displays OFF
drawing object
The lamp will neither turn on or flash if the trigger conditions are not met. Lamp trigger conditions are
configured on the Trigger Condition tab.
