2 Multi-State Lamp
9-24 WindO/I-NV4 User’s Manual

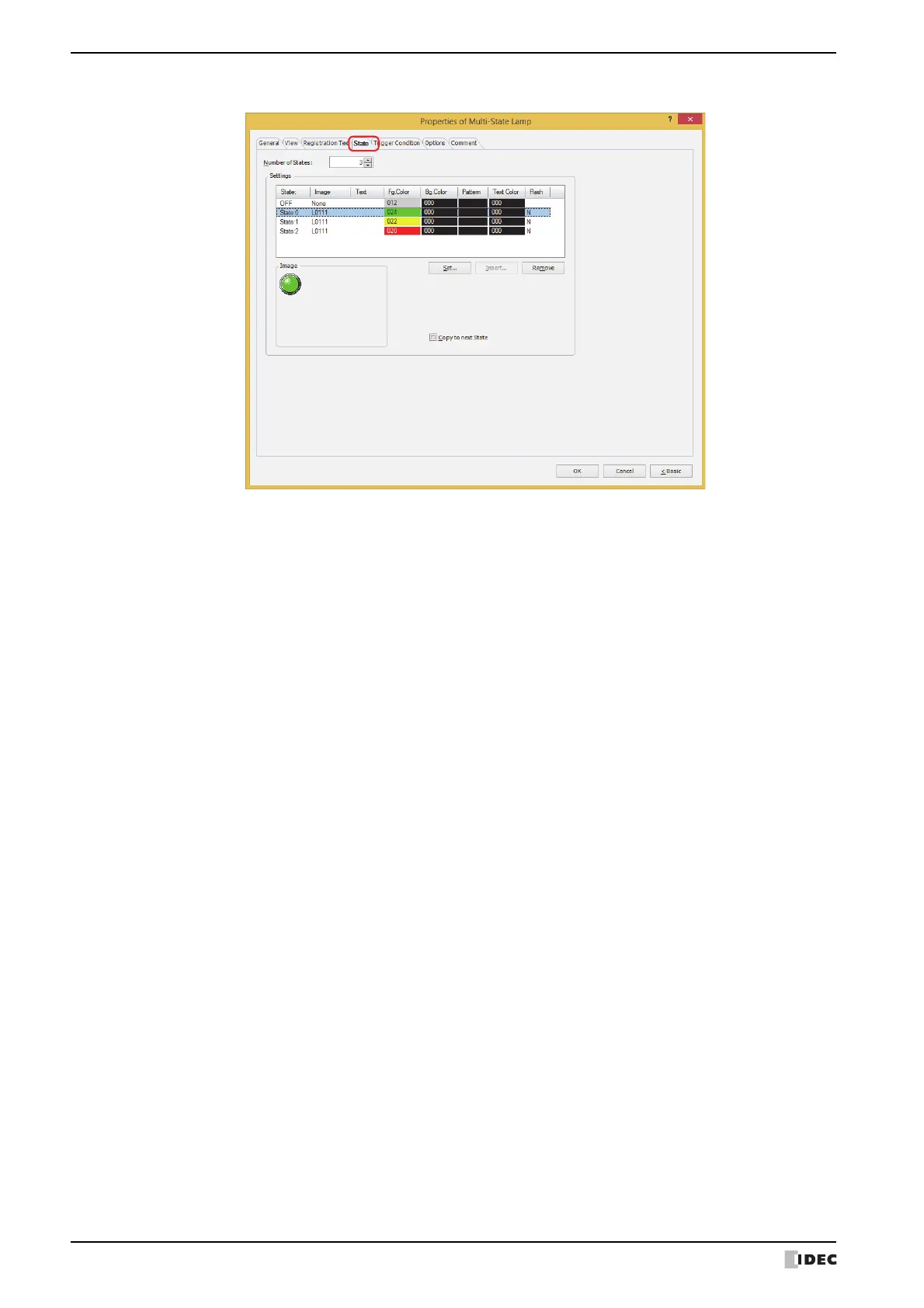

● State Tab
■ Number of States
Specify the number of drawing objects (1 to 16) to display by switching.
■ Settings
Lists the state settings. The list shows various settings such as the state number and file name for the drawing object.
State: Shows the OFF state and state number.
Double clicking the cell displays the State Settings dialog box where you can edit the state
settings. For details, refer to “State Settings Dialog Box” on page 9-26.
Image: Shows the name or a file name for a drawing object.
Double clicking the cell opens the View Browser if Standard is selected under Image Type on
the View tab, or Picture Manager if Picture is selected. This allows you to change the drawing
object to display.
Text: Shows the registration text.
Double clicking the cell allows you to edit the Registration Text.
Can only be set when the Use Text Manager check box is cleared.
Text ID: Shows the Text ID.
Double clicking the cell displays the Text Manager where you can change the Text ID.
Can only be set when the Use Text Manager check box is selected.
Fg.Color, Bg.Color: Shows the foreground and background colors for standard images.
Double clicking the cell opens the Color Palette where you can change the foreground and
background colors. This setting can only be changed if Image Type is set to Standard on the
View tab.
