1 Numerical Input
10-20 WindO/I-NV4 User’s Manual

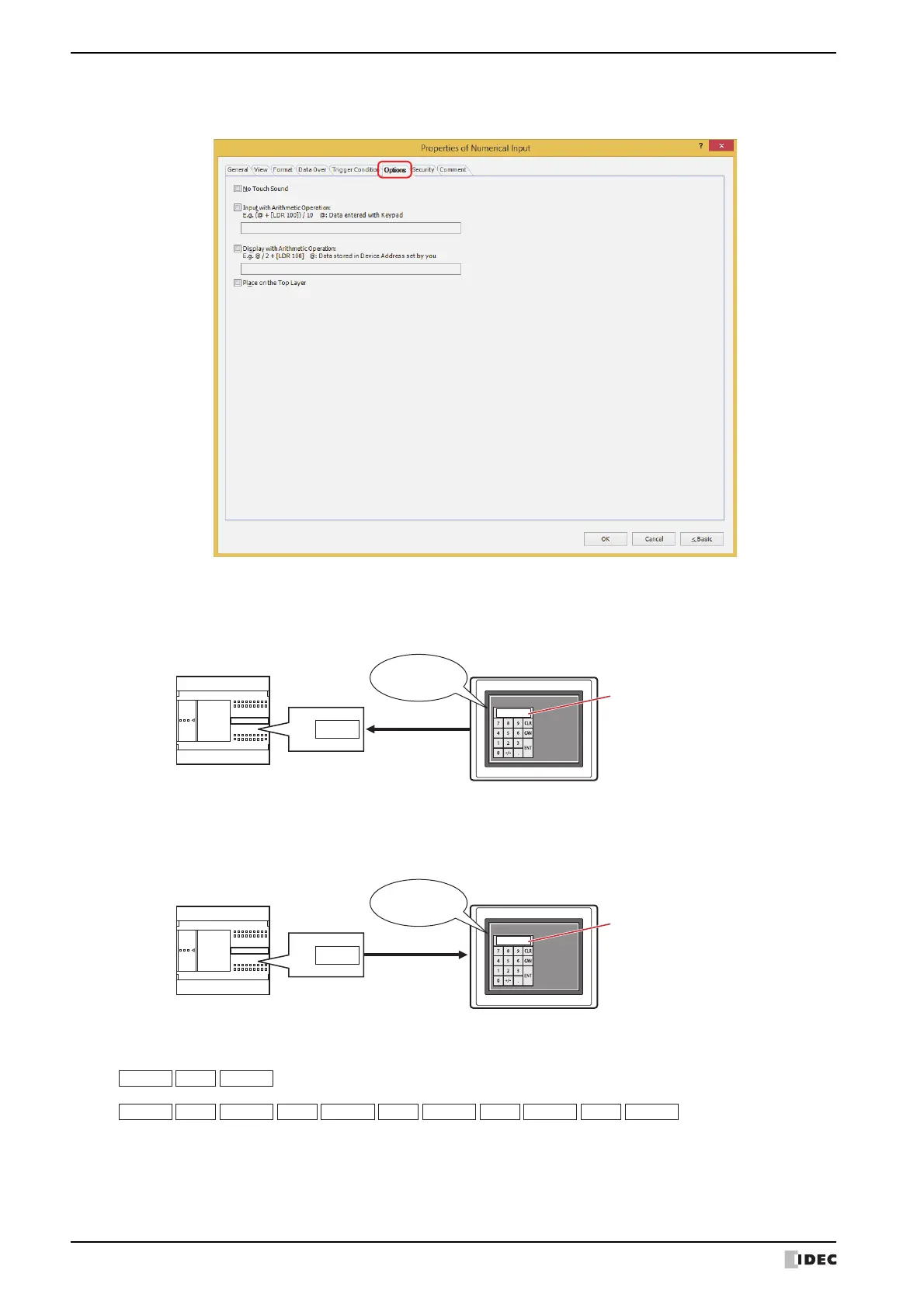

● Options Tab
The Options tab is displayed in Advanced mode.
■ Input with Arithmetic Operation
To apply arithmetic operations to values entered using a keypad and writing the results, select this check box and
input the arithmetic formula.
Example: To divide the value of device address when entered by 60
■ Display with Arithmetic Operation
To apply arithmetic operations to values of device addresses and writing the results, select this check box and input
the arithmetic formula.
Example: To multiple the value of device address when displayed by 60
Arithmetic Formulas
Arithmetic formulas can be specified by freely combining multiple kinds of data and operators in the following format.
• There is no limit on the number of data items or number of operators. However, the maximum number is 120
characters.
• Round brackets can be used.
External device
MICRO/I
D0 700
42000÷60
Write value of
entered value
divided by 60
42000
Numerical Input
Destination Device Address: D0
Input with Arithmetic Operation: @/60
External device
MICRO/I
D0 1234
1234×60
Display value multiplied
by 60 for the value of
device address
74040
Numerical Input
Destination Device Address: D0
Display with Arithmetic Operation: @
•
60
...(up to 120 characters)
Operator Data Data
Operator Data Data
to
Operator Data Operator Data Operator Data Operator Data
