3 Picture Display
10-70 WindO/I-NV4 User’s Manual

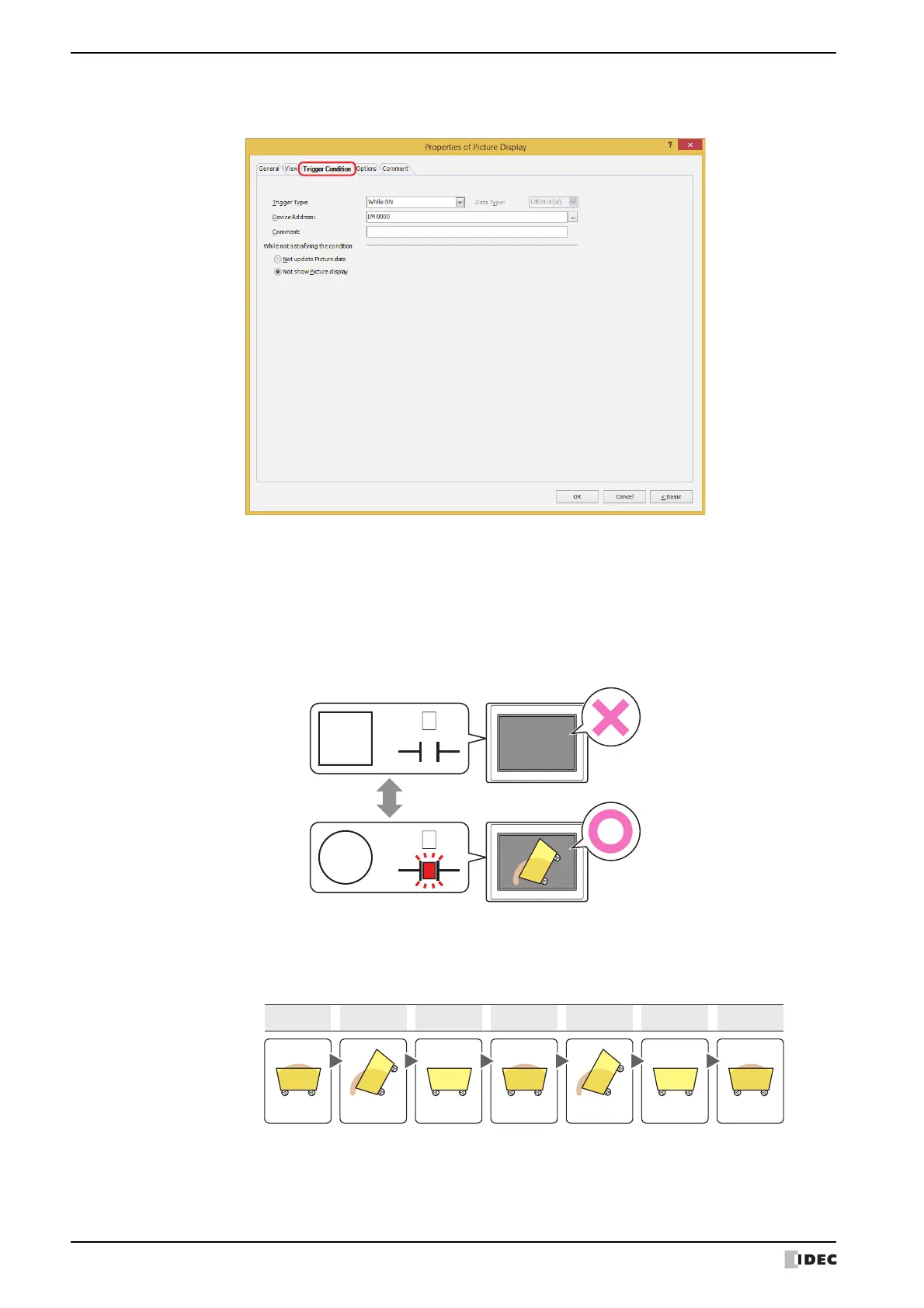

● Trigger Condition Tab
The Trigger Condition tab is displayed in Advanced mode.
The Picture Display is enabled while the condition is satisfied, and it is disabled while the condition is not satisfied.
Select the operation when the condition is not satisfied as Not update Picture data or Not show Picture Display
under While not satisfying the condition.
■ Trigger Type
Selects the condition to enable the Picture Display from the following.
Example: When Trigger Type is While ON, Device Address is LM0, and While not satisfying the
condition is Not show Picture Display
While LM0 is 0, the condition is not satisfied and the Picture Display does not display the picture.
While LM0 is 1, the condition is satisfied and the Picture Display displays the picture.
LM0
:
MICRO/I
0
LM0
:
1
Condition
Not
satisfied
Condition
Satisfied
Show
Hide
Always visible: The Picture Display is always enabled.
Display
Data Pic0 Pic1 Pic2 Pic0 Pic1 Pic2 Pic0
Update Update Update Update Update Update Update
