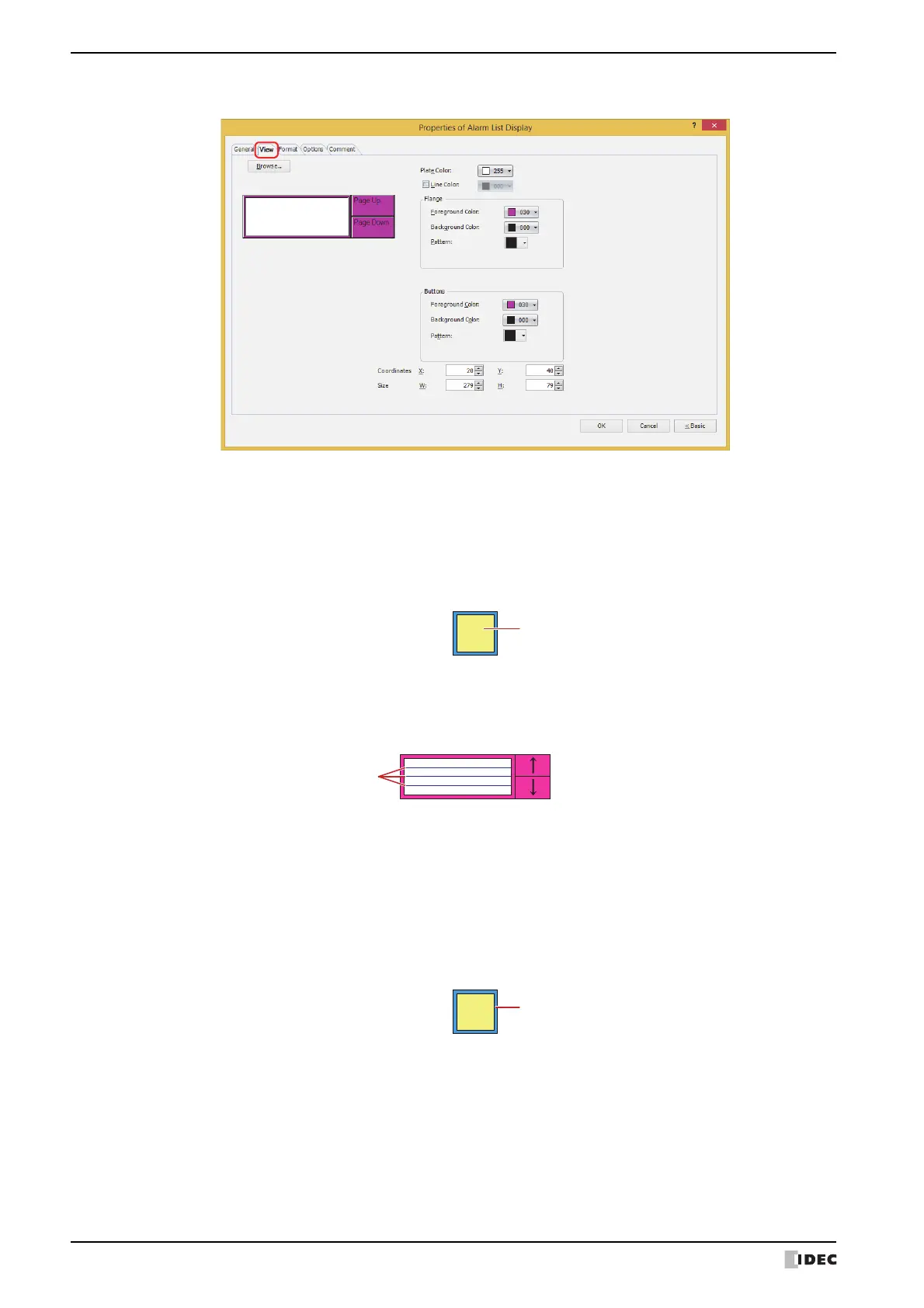

● View Ta b
■ Browse
Select the type of graphic to be used to represent the part from the list of graphics. Click this button to display the
View Browser.
■ Plate Color
Selects the plate (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
■ Line Color
When lines are displayed, select this check box and select line color (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
■ Flange
Plate color
Lines
Foreground Color, Background Color: Selects the foreground and background colors of the flange (color: 256 colors,
monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern for the flange.
Click Pattern to display the Pattern Palette. Select a pattern from the Pattern
Palette.
Flange
