WindO/I-NV4 Users Manual 10-163
8 Alarm Log Display
10
Data Displays
Display Block Number
Specifies the range of block numbers that will display the collected alarm log data.
Place on the Top Layer
Select this check box to display the parts on the top layer. The parts will have precedence when other drawings and
parts are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts Overlapping” on page 6-5.
All: Displays the data for all blocks.
Block Number: Displays only the data for the specified blocks in the Alarm Log Display. Alarms in unspecified blocks
are not displayed, even if active.
Individual block numbers can be specified by separating the numbers with “,, continuous regions
can be specified with “-”.

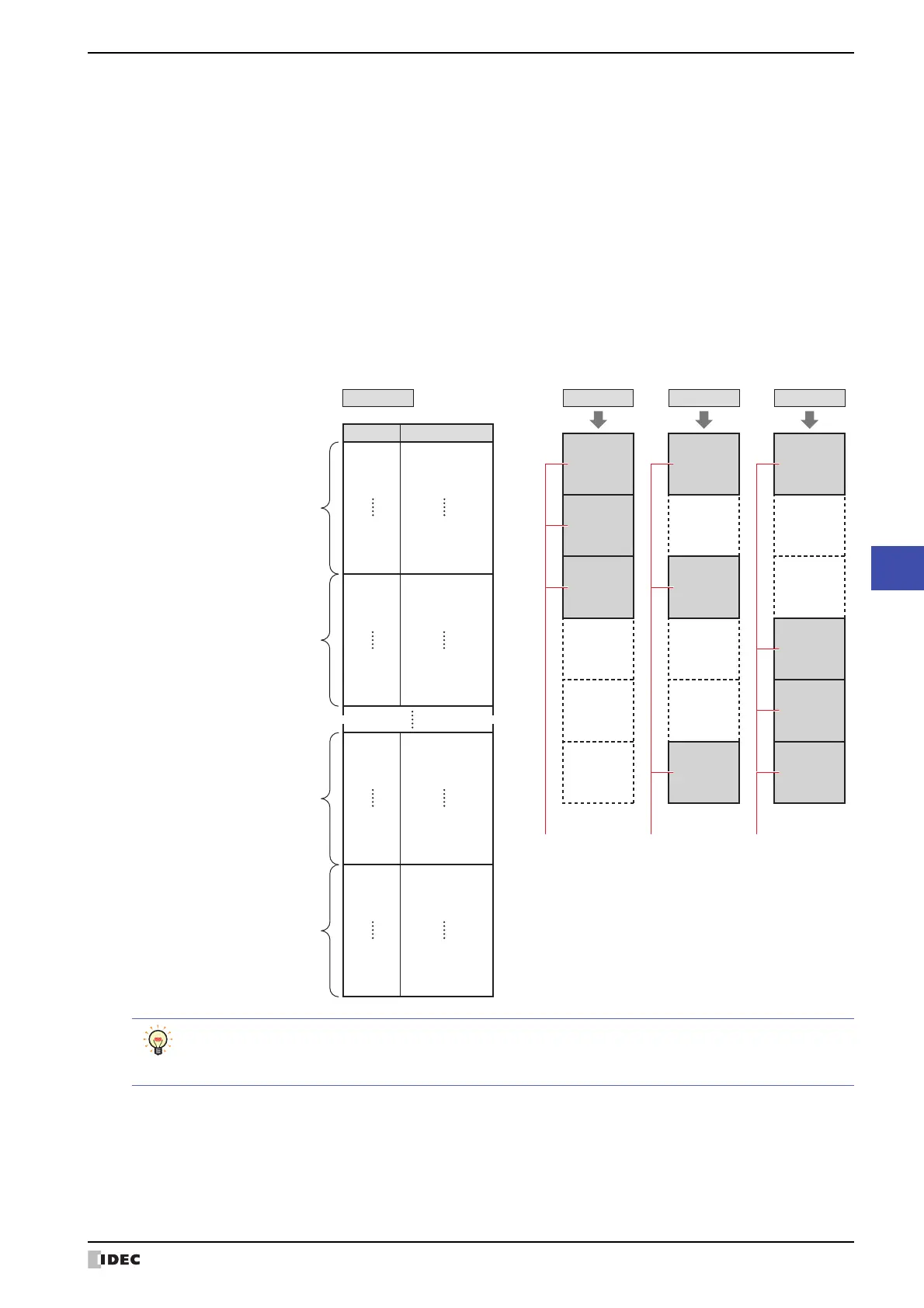

Example: When the number of blocks is 6, enter the following.
To specify blocks 1 to 3: 1-3
To specify blocks 1, 3, 6: 1, 3, 6
To specify blocks 1, 4 to 6: 1, 4-6
No. Device address
1-0
1-1
1-2
1-13
1-14
1-15
D100-0
D100-1
D100-2
D100-13
D100-14
D100-15
2-0
2-1
2-2
2-13
2-14
2-15
D101-0
D101-1
D101-2
D101-13
D101-14
D101-15
Block 1
Block 2
5-0
5-1
5-2
5-13
5-14
5-15
D104-0
D104-1
D104-2
D104-13
D104-14
D104-15
Block 5
6-0
6-1
6-2
6-13
6-14
6-15
D105-0
D105-1
D105-2
D105-13
D105-14
D105-15
Block 6
Number of blocks
Specified numbers
1-3
6
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
1, 3, 6 1, 4-6
Blocks to display Blocks to display Blocks to display
To display the alarms set in blocks 65 to 128 of the Alarm Log settings, select All under Display Block
Number. If Block Number is selected, only blocks 1 to 64 can be specified.
For the number of blocks, refer to Chapter 13 “Number of Blocks” on page 13-16.
