10 Calendar
10-196 WindO/I-NV4 User’s Manual
■ Data Type
Selects the data type to be handled by the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.1 Available Data” on page 2-1.
■ Device Address
Specifies the bit device or the bit number of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-68.
■ Condition
Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration
procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-71.
■ Comment
Used for entering comments about trigger conditions. Maximum number is 80 characters.

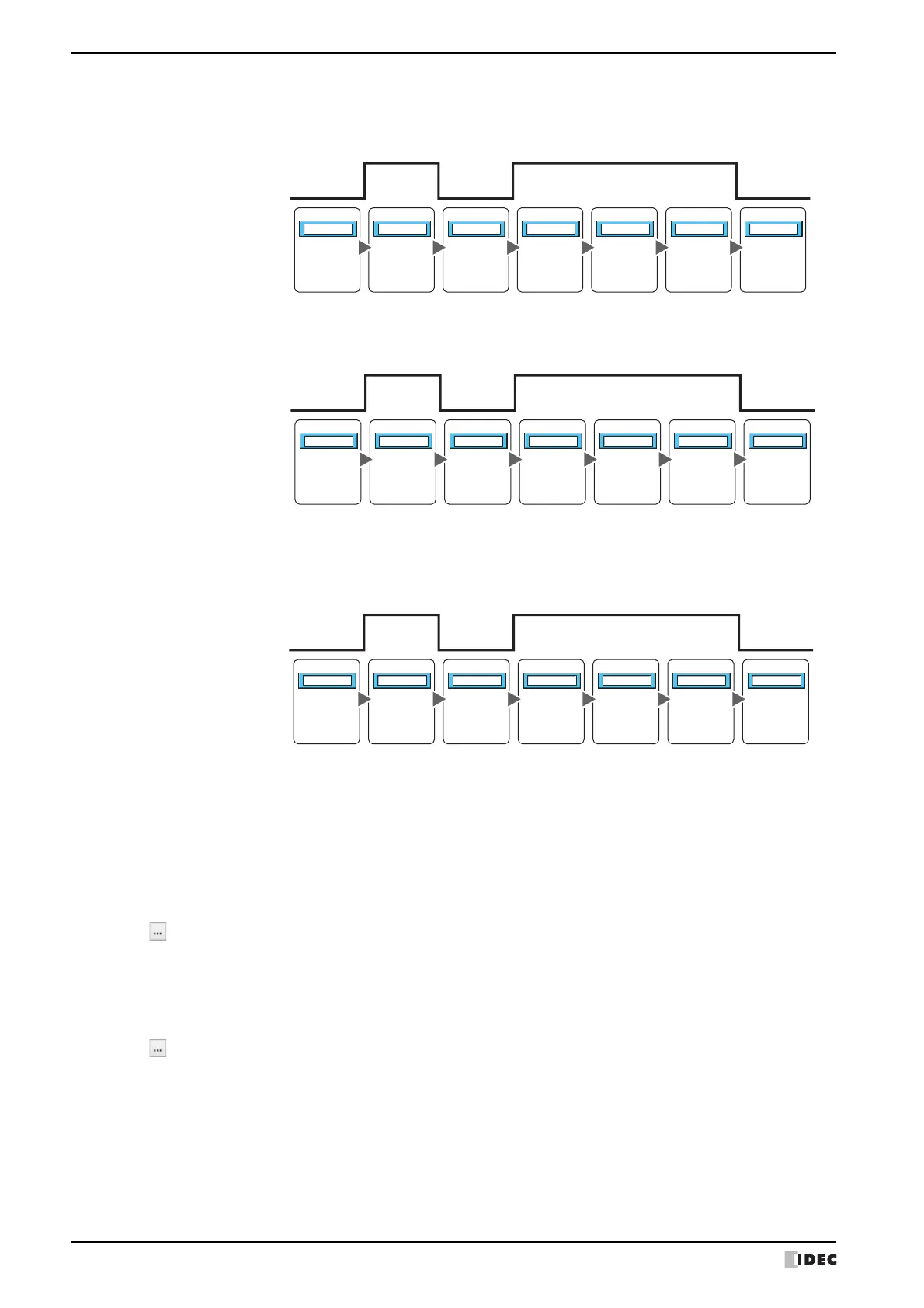

■ Not show Calendar
When this check box is cleared, the part image is not displayed when the condition is not satisfied.
While ON: Enables the Calendar when the value of device address is 1.
Example: When the Not show Calendar check box is cleared under While not satisfying the
condition
While OFF: Enables the Calendar when the value of device address is 0.
Example: When the Not show Calendar check box is cleared under While not satisfying the
condition
While satisfying the condition:
Enables the Calendar when the condition is satisfied.
Example: When the Not show Calendar check box is cleared under While not satisfying the
condition
12/07 13:45 12/07 13:45 12/07 13:45 12/07 13:45
1
0
Show timeHide time Hide time Hide timeShow time Show time Show time
Value of
Device Address
Calendar state
Value of
Device Address
1
0
Show timeHide timeShow time Show timeHide time Hide time Hide time
Calendar state
12/07 13:45 12/07 13:45 12/07 13:45
Show timeHide time Show time Hide time
12/07 13:45
Show time
12/07 13:45
Show time
12/07 13:45
Show time
12/07 13:45
Condition
Satisfied
Not satisfied
Calendar state
