2 Line Chart
11-42 WindO/I-NV4 User’s Manual

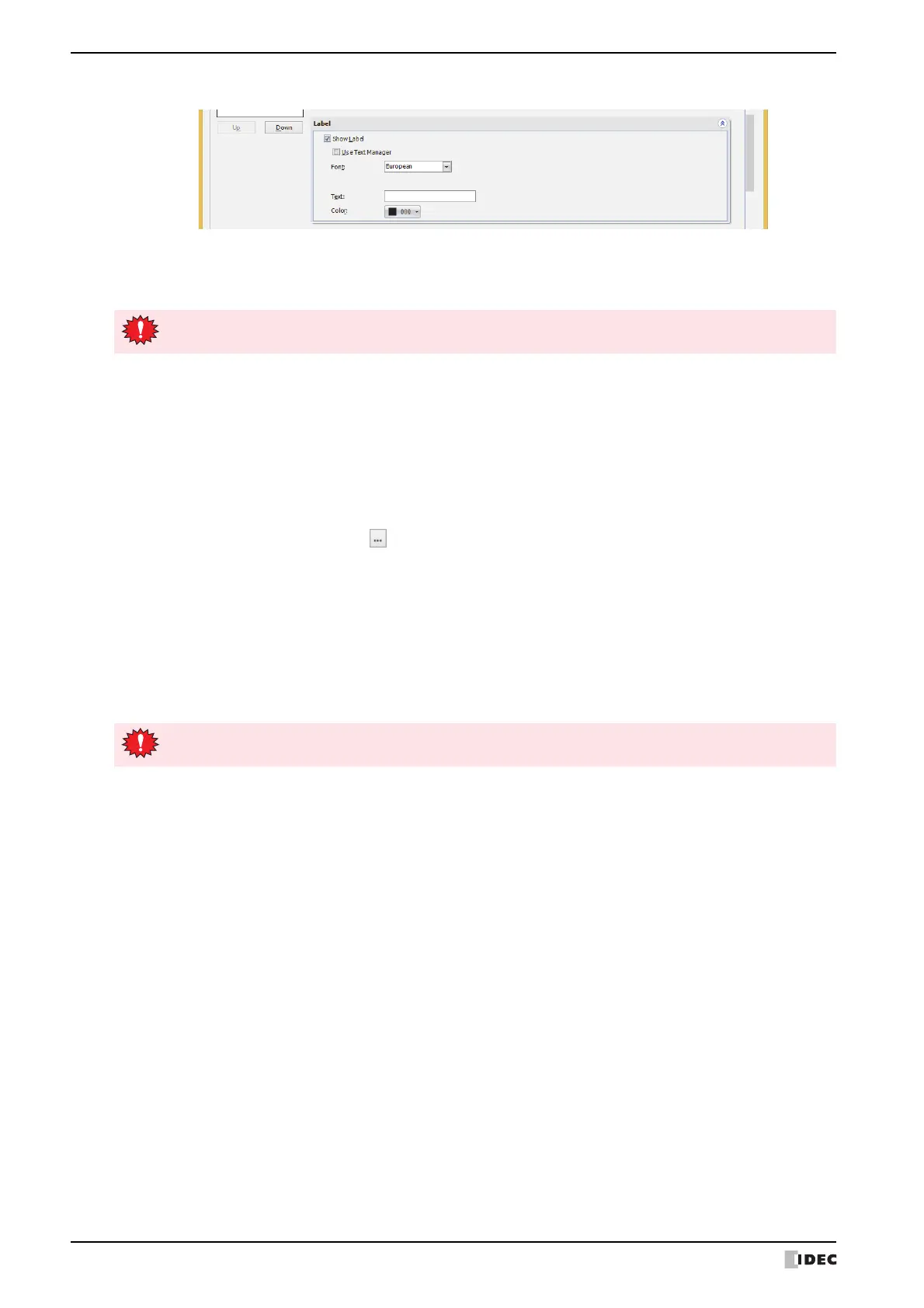

■ Label Tab
Show Label: Select this check box to display a label on Y-axis scales.
Use Text Manager: Select this check box if using the text registered in Text Manager for labels. Can
only be set when the Show Label check box is selected.
If a carriage return (CR) is included in the character displayed on the label, the characters after the CR are
not displayed. However, if Windows Font is set for the specified Text ID, all the characters are displayed.
Font: Selects the font for text used in labels from the following.
Japanese, European, Chinese, Taiwanese, Korean, Central European,
Baltic, Cyrillic
Can only be set when the Use Text Manager check box is cleared.
The characters that can be displayed depend on the font. For details, refer to
Chapter 2 “1.2 Available Text” on page 2-6.
Text ID: Specifies the Text Manager ID No. (1 to 32000) when text registered in the Text
Manager are used for labels.
Click to display Text Manager.
Can only be set when the Use Text Manager check box is selected.
Text: Inputs characters to be displayed for labels. Maximum number is 40 characters.
The characters that can be entered depend on the font selected using Font. For
details, refer to Chapter 2 “1.2 Available Text” on page 2-6.
Can only be input when the Use Text Manager check box is cleared.
Color: Selects the color of the text used for labels (color: 256 colors, monochrome: 16
shades).
Click Color to open the Color Palette. Select a color from the Color Palette.
If the area for displaying the label is too small, the label will not be displayed properly.
