4 Meter
11-70 WindO/I-NV4 User’s Manual

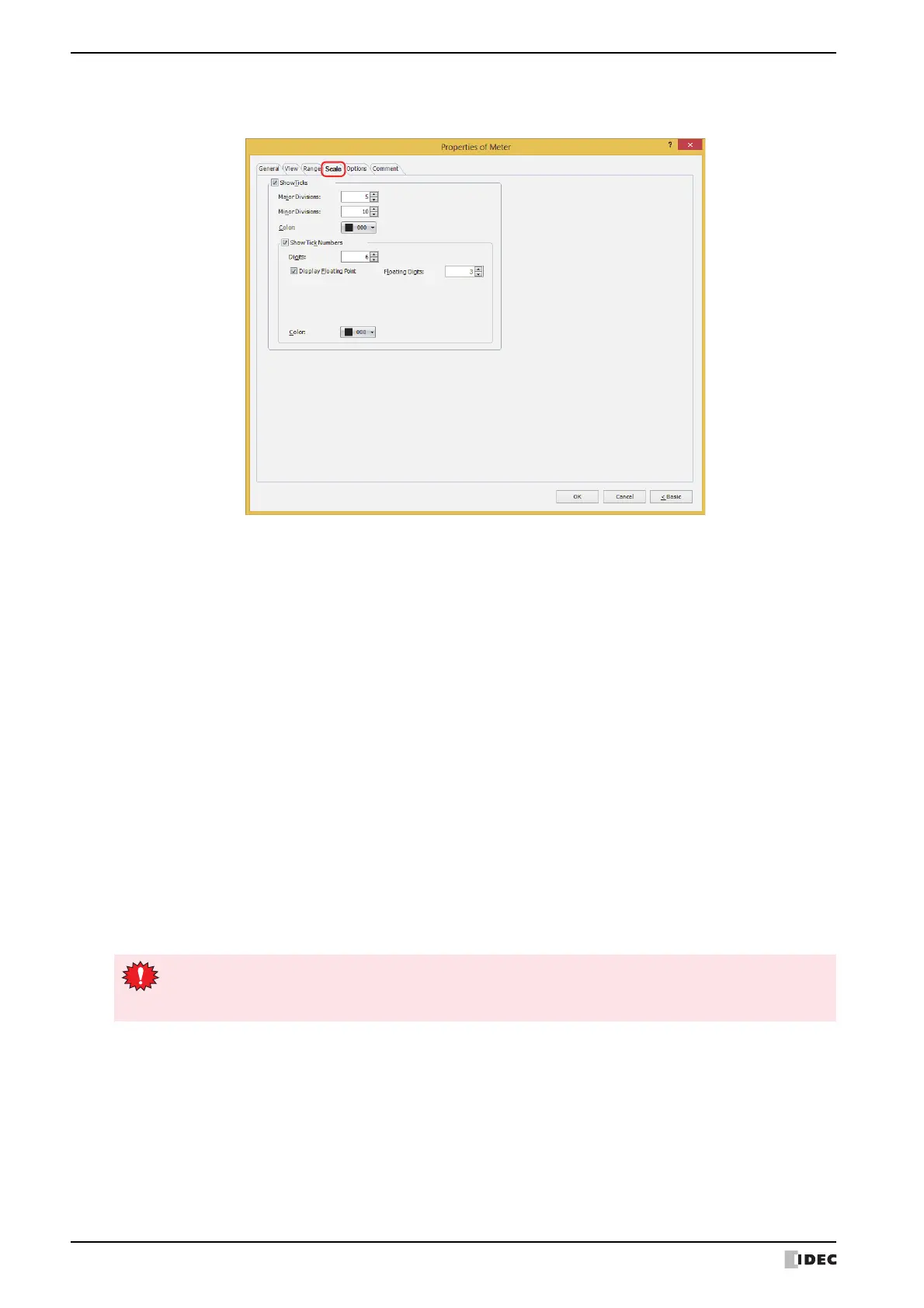

● Scale Tab
The Scale tab is displayed in Advanced mode.
■ Show Ticks
Select this check box to display a scale on a or meter.
Scales can only be configured when Standard or None is selected under Image Type on the View tab.
Major Divisions: Enter the number of major scale divisions (1 to 20).
Minor Divisions: Enter the number of minor scale divisions (1 to 20).
Color: Selects the color of scales (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Show Tick Numbers: Select this check box to display numbers along the scale.
Digits: Sets the number of digits to be displayed (1 to 10).
Can only be set when Float32(F) is selected for Data Type under the
General tab.
Display Floating Point: Select this check box to display a floating point along the scale.
Can only be set when Float32(F) is selected for Data Type under the
General tab.
Floating Digits: Sets the number of digits for the fractional parts of numbers (1 to 8)
from the number of digits specified for Digits.
Can only be set when the
Display Floating Point
check box is selected.
Color: Selects the color of displayed text (color: 256 colors, monochrome: 16
shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
• If the area for displaying the scale is small, the scale will not be displayed properly.
• When the standard graphic F0001, F0101, or F0201 (no flange) are selected, the scale cannot be
configured.
