4 Using Data and Detected Alarms
13-32 WindO/I-NV4 User’s Manual
5 Select Enable under Alarm function, configure NO/NC and Lock/Unlock, and click OK.
You are returned to the Alarm Log Settings dialog box.
6 Repeat steps 3 through 5 to register all the channels.
7 Click OK.
The Alarm Log Settings dialog box closes.

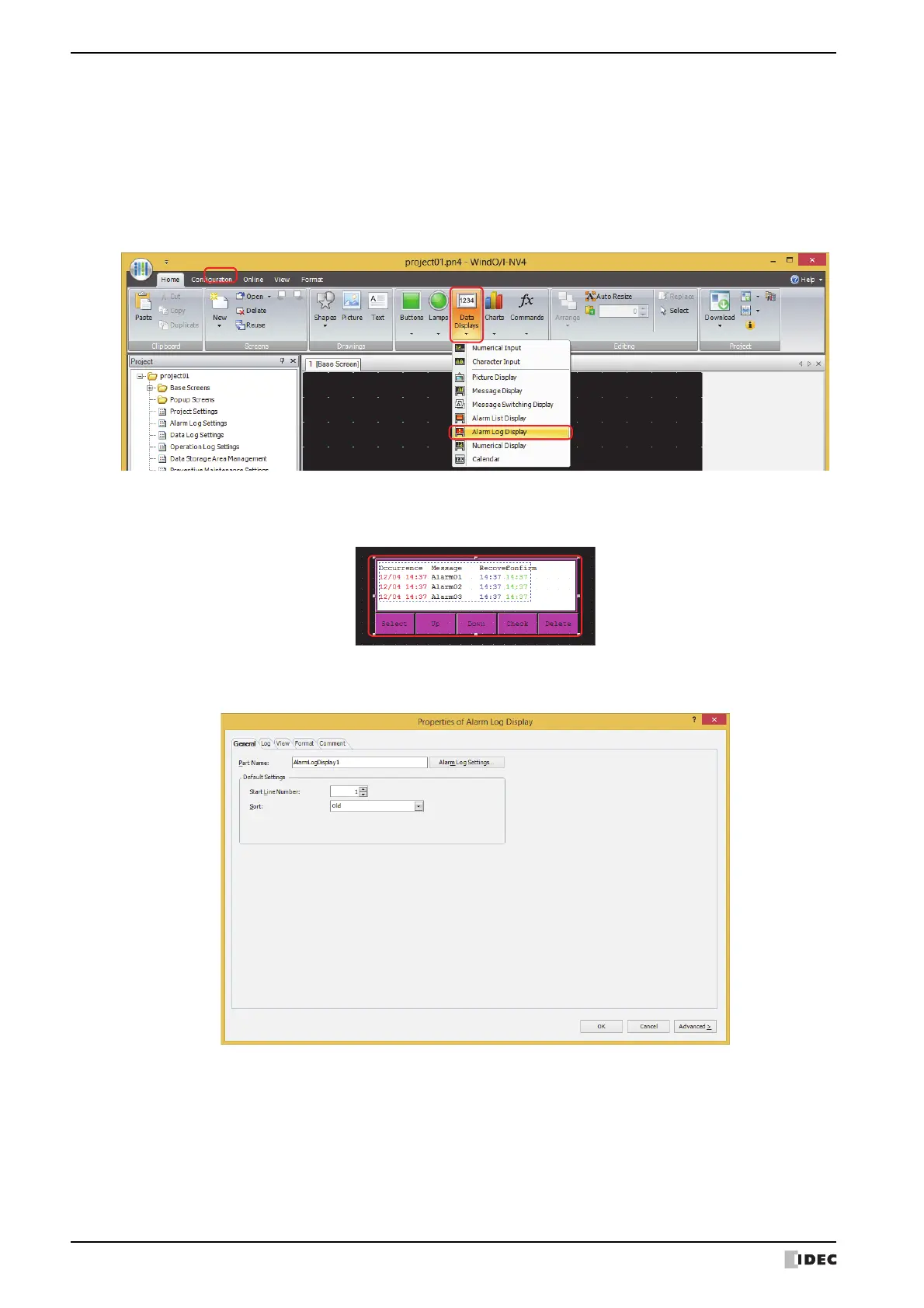

8 On the Home tab, in the Parts group, click Data Displays, and then click Alarm Log Display.
9 Click a point on the edit screen where you wish to place the Alarm Log Display.
10 Double-click the dropped Alarm Log Display and a Properties dialog box will be displayed.
11 Change the settings on each tab as necessary.
For details, refer to Chapter 10 “8.3 Properties of Alarm Log Display Dialog Box” on page 10-154.
12 Click OK.
The Properties of Alarm Log Display dialog box closes.
This concludes configuring the MICRO/I to display saved data with the Alarm Log Display.
