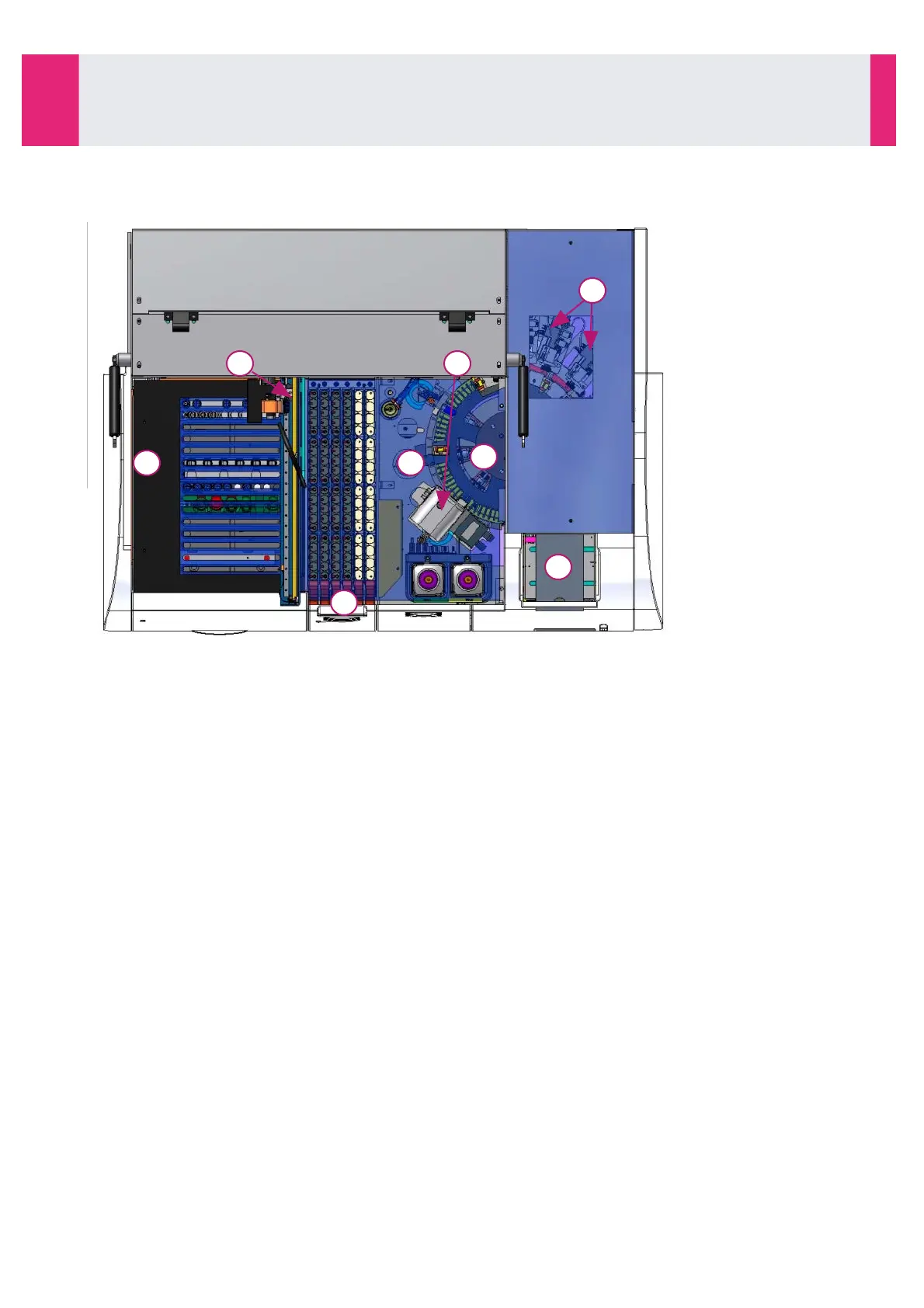

With all modules fitted the analyser comprises the following key components:
7
2
4
1 5
8
3
6
1. A refrigerated reagent compartment, consisting of 15 rails containing the Immunoassay or Biochemistry
racks as well as a specialised rack for chronometric reagents.
2. A compartment for samples , calibrators and controls with, depending on the analyser configuration, a
fixed sample tray with 64 positions , or a rack containing 6 removable trays each with 20 positions.
3. A pipetting arm that pipettes both reagents and samples.
4. A thermo-regulated carousel set at 37°C with 90 positions for disposable cuvettes. Incorporated into the
carousel is the spectrophotometer, used for measuring absorbancy from certain Immunoassay,
Biochemistry and Turbidimetry reactions.
5. A sedimentation module for magnetic particles.
6. An automatic cuvette loader, holding 960 cuvettes at a time (pre-formed as a cube).
7. A luminometer measuring luminescence in Immunoassay reactions (Immunoassay version).
8. Four washers for washing magnetic particles.
The barcode reader integrated into the reagent compartment identifies reagent cartridges supplied by IDS.
A second barcode reader, located on the front of the analyser identifies ancillary reagents.
Samples, calibrators and controls are identified or by the reader located on the front for analysers with a fixed
sample tray, either by a reader integrated into the sample compartment for analysers with removable sample
trays.
