IDS IDS-iSYS User Manual

2-8-1-Equipment configuration
Communication with the centralized computer system is connected to the PC associated with the analyser and
can be made by:
•
RS232C link. DB9 standard pinouts.
•
TCP/IP link. Ethernet cable (RJ45,8 pins)
2-8-2- Change to connection setup

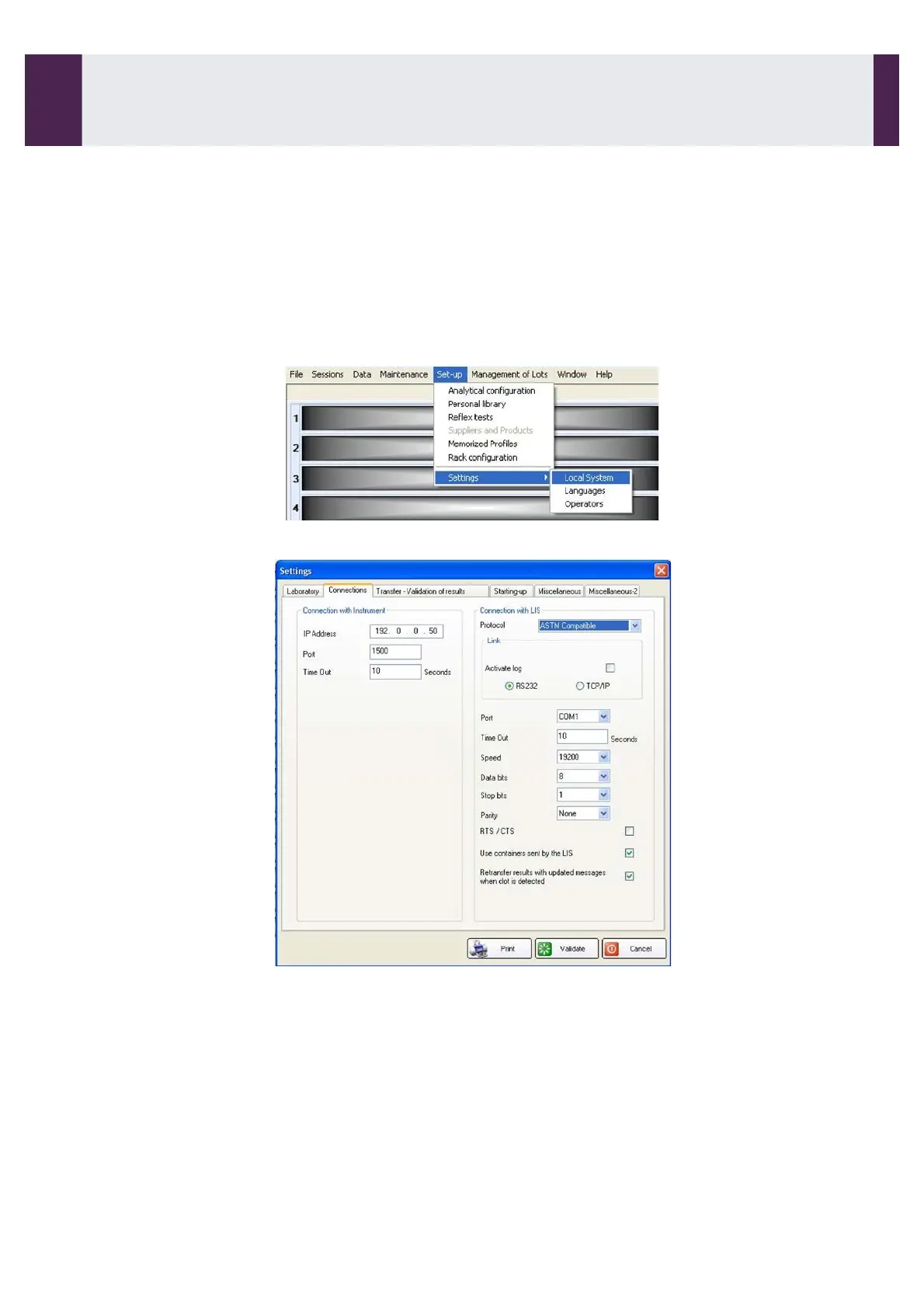

The connection set-up for the interface can be found under SET-UP/SETTINGS/LOCAL SYSTEM:
•
With RS232C selected:
2- ASTM Compatible Version
2-8- Line of Communication
IDS-iSYS Connection Protocol - Revision N1"
2- ASTM Compatible Version
" 17
Software version V 14
