3-10-1-Equipment conﬁguration

Communication with the centralized computer system is connected to the PC associated with the analyser and

can be made by:

•

RS232C link. DB9 standard pinouts.

•

TCP/IP link. Ethernet cable (RJ45,8 pins)

3-10-2- Change to connection setup

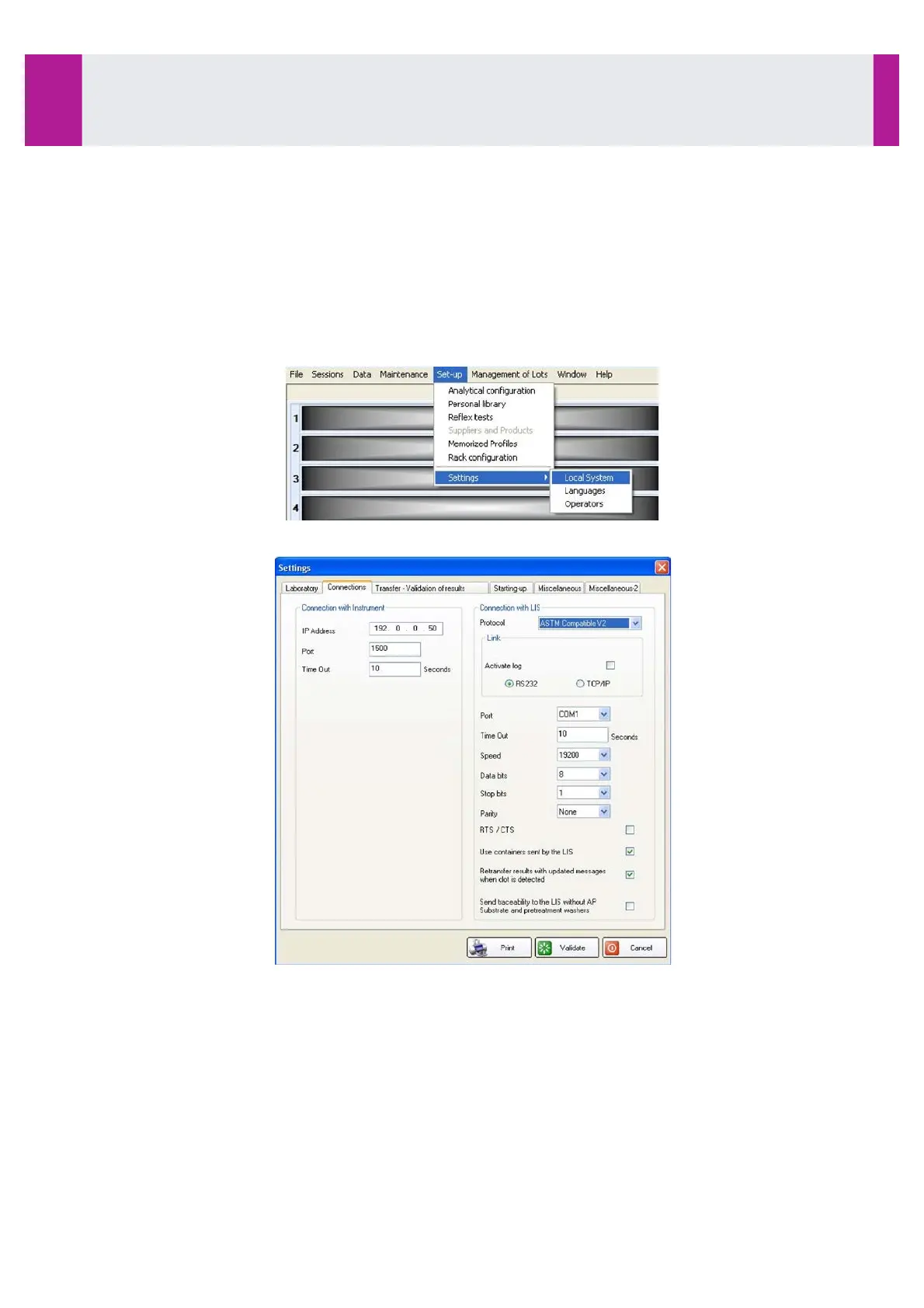

The connection set-up for the interface can be found under SET-UP/SETTINGS/SYSTEM:

•

With RS232C selected:

3- ASTM Compatible V2 Version

3-10- Line of Communication

IDS-iSYS Connection Protocol - Revision N1"

3- ASTM Compatible V2 Version

" 35

Software version V 14
