4-10-1-Equipment configuration
Communication with the centralized computer system is connected to the PC associated with the analyser and
can be made by:
•
RS232C link. DB9 standard pinouts.
•
TCP/IP link. Ethernet cable (RJ45,8 pins)
4-10-2- Change to connection setup

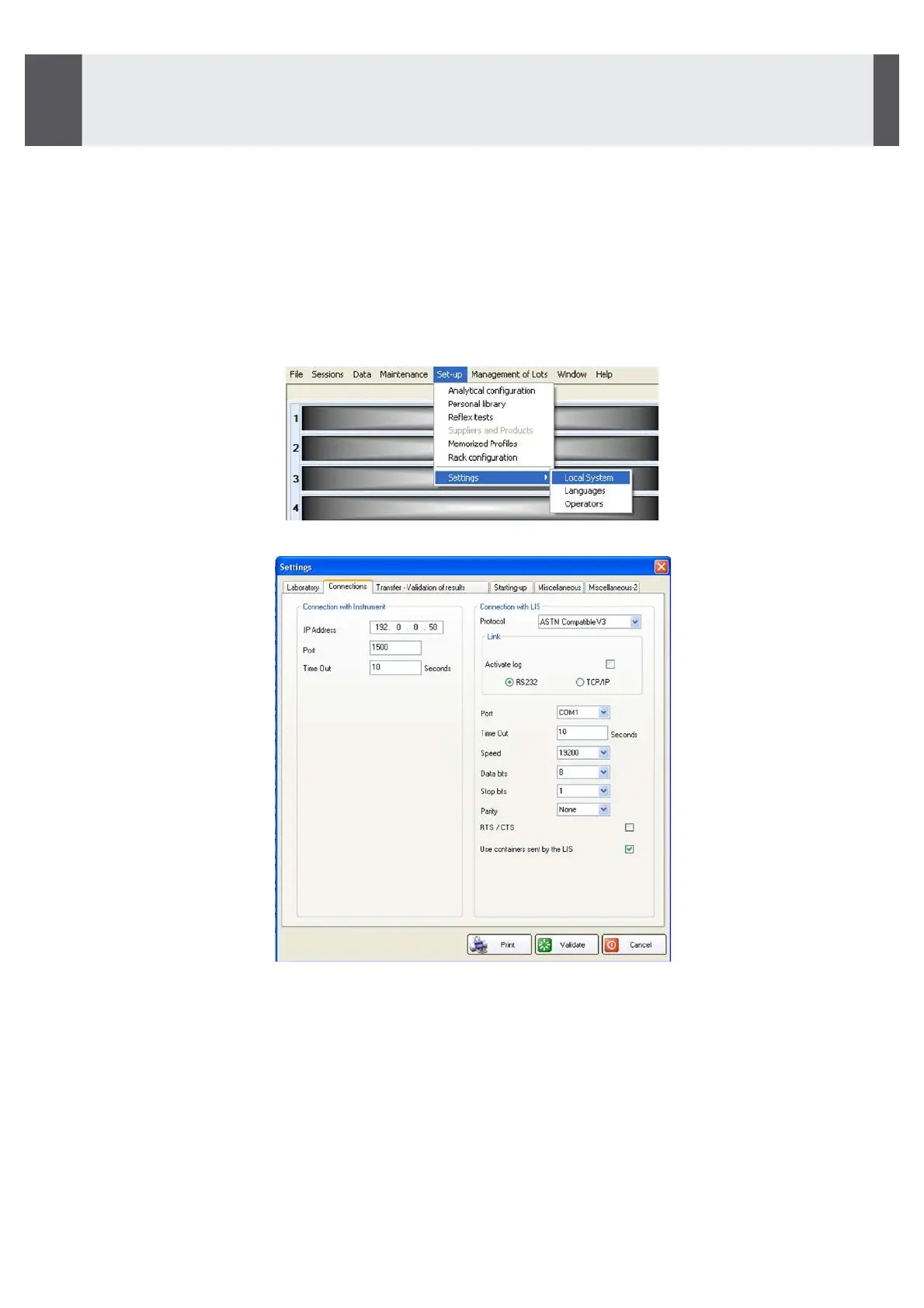

The connection set-up for the interface can be found under SET-UP/SETTINGS/SYSTEM:
•
With RS232C selected:
4- ASTM Compatible V3 Version
4-10- Line of Communication
IDS-iSYS Connection Protocol - Revision N1"
4- ASTM Compatible V3 Version
" 54
Software version V 14
