10–3
Transpector CPM Operating Manual
5 The TCP/IP dialog box will open. To add a sensor, click Add and select RGA
MPx.(See Figure 10-3.)

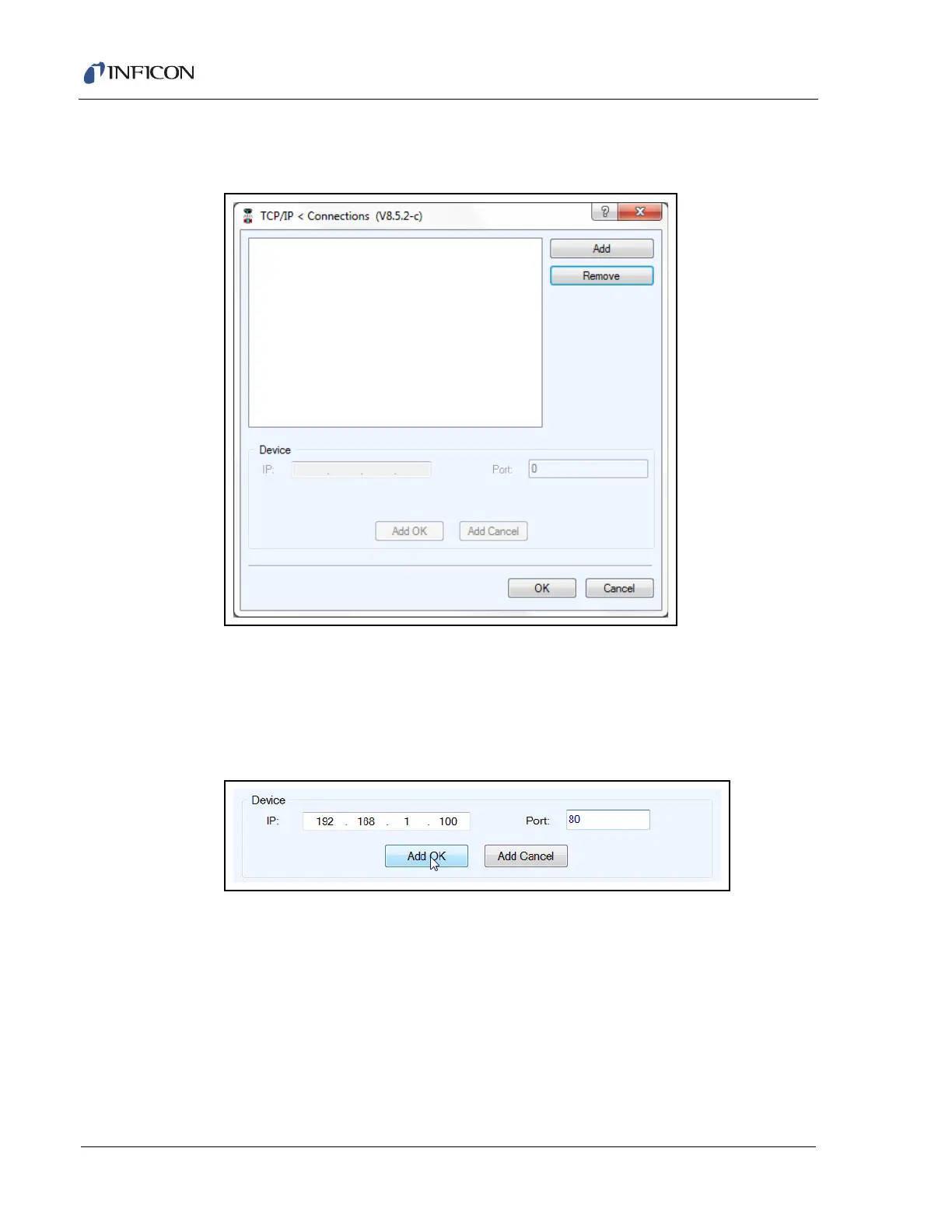

Figure 10-3 Transpector connections menu
6 In the Device pane, Type the Transpector IP address in the IP box.
(See Figure 10-4.)
7 Type the port number in the Port box
8 Click Add OK.
Figure 10-4 Device IP address
NOTE: Transpector MP sensors ship with a default IP address of
192.168.1.100 and a default Port of 80. If this IP address is not
compatible with your network, the IP address can be changed using
the INFICON Mass Spectrometer Search Utility.
9 Click Add OK.
