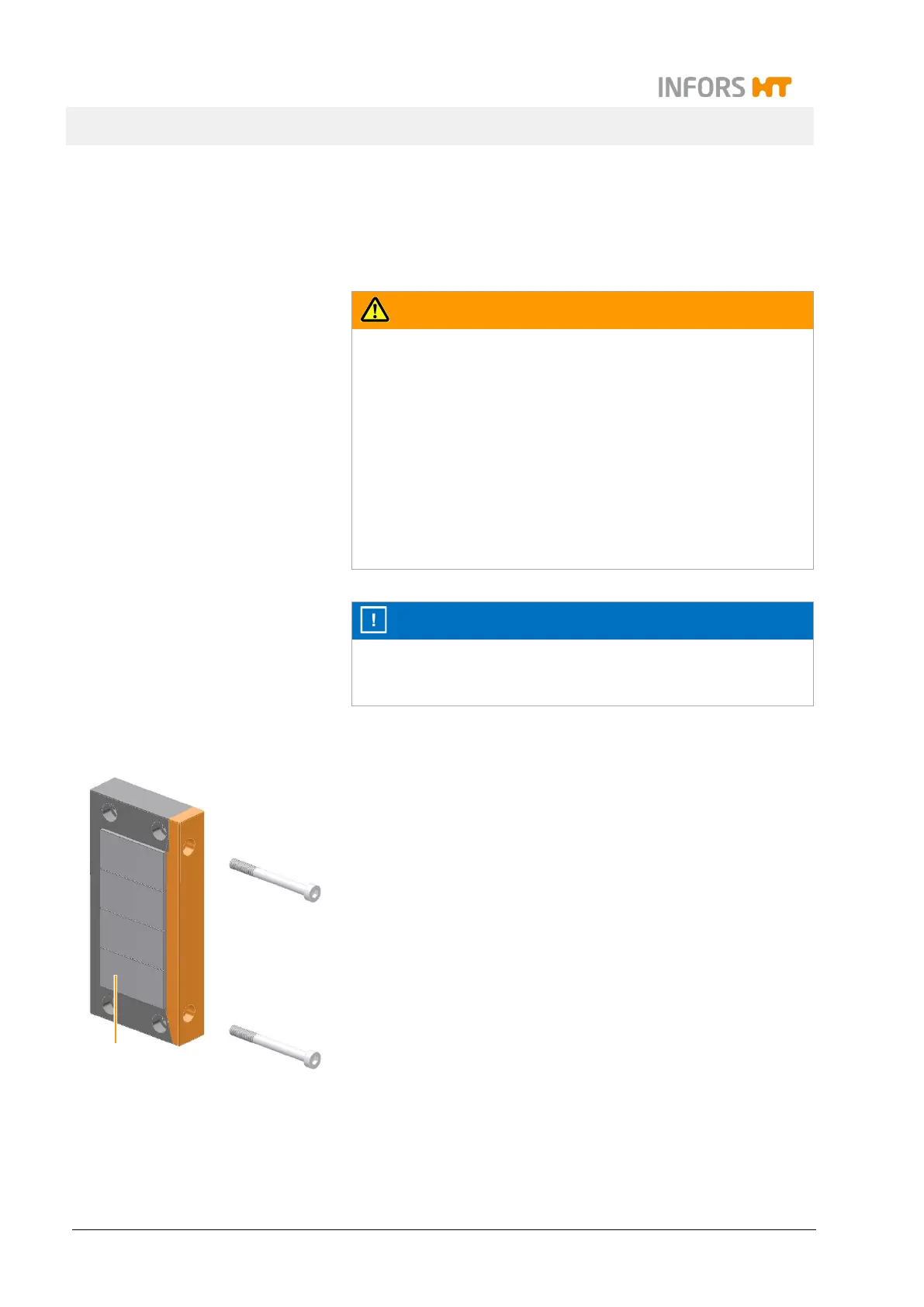

4.9.2 Using the Cable Pass-through
To correct insert cables and hoses into the incubation chamber,
proceed as follows:
If external equipment that is supplied with mains power is oper-
ated on the table whilst it is operating, there is a risk that the ca-
ble might break or get jammed. This poses a risk of death by
electrocution.
– Electrical equipment may only be used when the shake
function is switched off (e.g. in conjunction with the Tem-
perature parameter.)
– Electrical equipment may only be used in conjunction with
the Humidity parameter if the equipment is adequately pro-
tected against humidity. Observe the permissible environ-
mental conditions for operating the equipment.
To avoid damage to when installing the cables and/or hoses in
the incubation chamber, make sure that they do not rub and do
Procedure
1. Dismantle the removable part of the cable pass-through bar
(highlighted in orange) by loosening the two cylinder head
screws. A suitable screwdriver with SW 4 is included in the
equipment’s scope of delivery.
2. If necessary, remove the inserted dummy sleeves (1).
3. Place the cable in a suitable cable sleeve.
4. Insert the cable sleeve into the cable pass-through bar.
5. Use dummy seals to seal any openings that you do not re-
quire.
6. Mount again the removable part of the cable pass-
with the two cylinder head screws.
