Multitron - Incubation Shaker
Operation
25 February 2019 Page 77 of 146

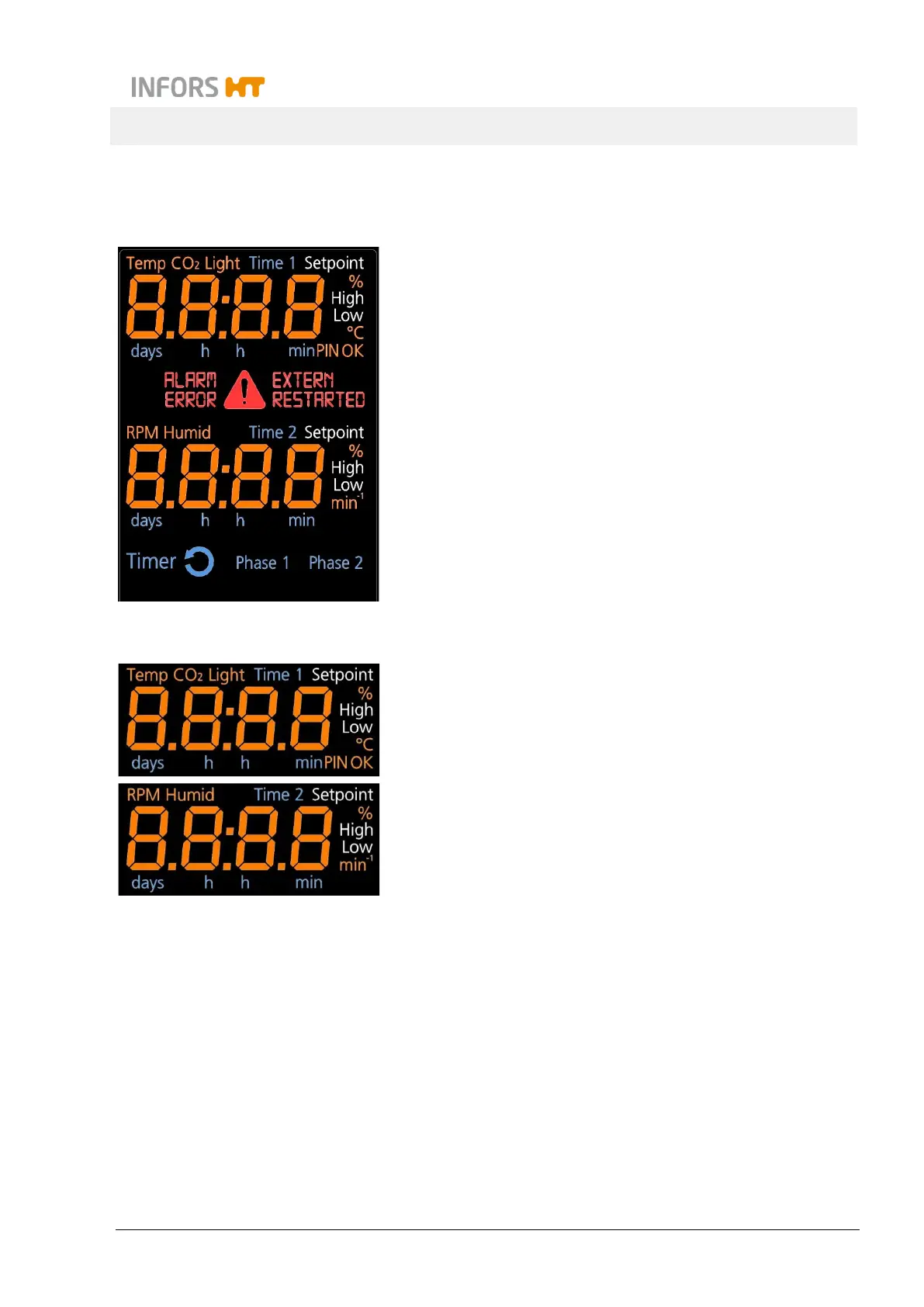

7.3.1 Display Area
The Complete display area
The display area is dominated by the two alphanumeric displays by
which the setpoint and actual values of the parameters as well as
different messages are communicated.
Between the alphanumeric displays there is an area for various
signs in combination with error, warning and alarm messages.
Below the lower alphanumeric display there is the area for blue
signs in connection with the timer function. Also the blue signs
above and underneath the two alphanumeric displays are related
to the timer function.
The alphanumeric displays with signs and unit symbols
The two display areas consist of a centrally located 7-digit alpha-
numeric display and various signs and symbols which are arranged
around them and which are explained in the following.
The upper display area is allocated to the following parameters:
temperature (Temp)
CO
2
concentration (CO
2
) (optional)
light intensity (Light) (optional)
The lower display area is allocated to the following parameters:
rotation speed (RPM)
humidity (Humid) (optional)
