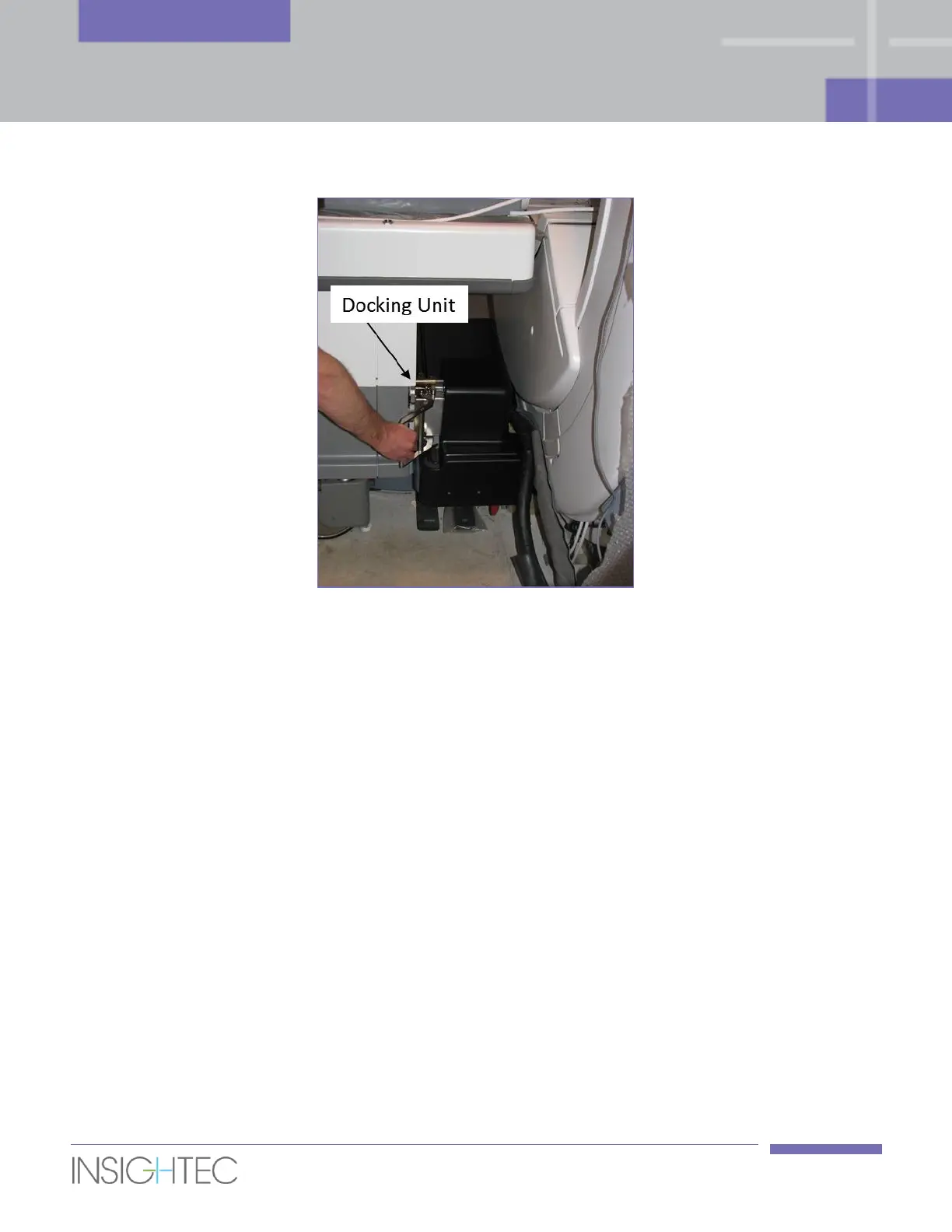

Figure 3-1: Exablate 2100V1 Connection of the Table To the MRI
4. Prepare a new water pouch assembly and connect to the table (see Figure 3-2):
◼ Open the cap of a water pouch and remove the small white ring (if applicable).
◼ Screw and tighten the fitting on the water pouch.
◼ Connect one side of the water hose to the fitting on the water pouch and the other side to the fitting
on the table. Hang the water pouch on the dedicated hanger.
