64 Micromate Operator Manual – 721U0201 Revision 6
With the optional Sound Level Microphone, the Microphone Trigger Level can be set from 33 to
140 decibels (dB).

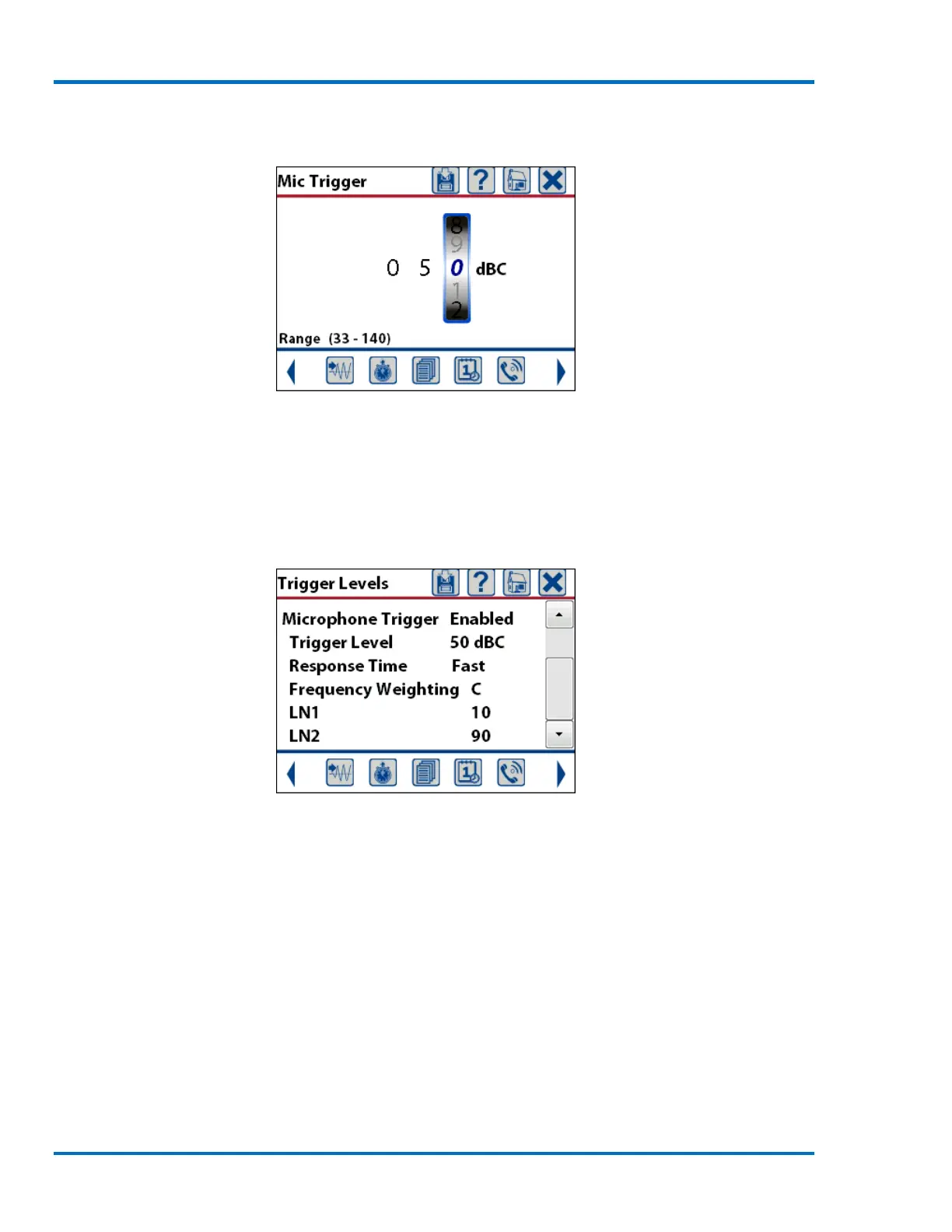

Sound Level Microphone Trigger set to 50.0 decibels
When using the Sound Level Microphone, the following additional options are available on the
Trigger Level page:
Response Time
Frequency Weighting
LN1
LN2
Sound Level Mic Trigger Level Options
To Next Page
