5.2 ATA OPERATION
yy
yyy
5
ATA TEST MENU
1. TEST Video
OFF
2. ATA Simulator
OFF
3. Status
4. Gate Display
OFF
0. EXIT

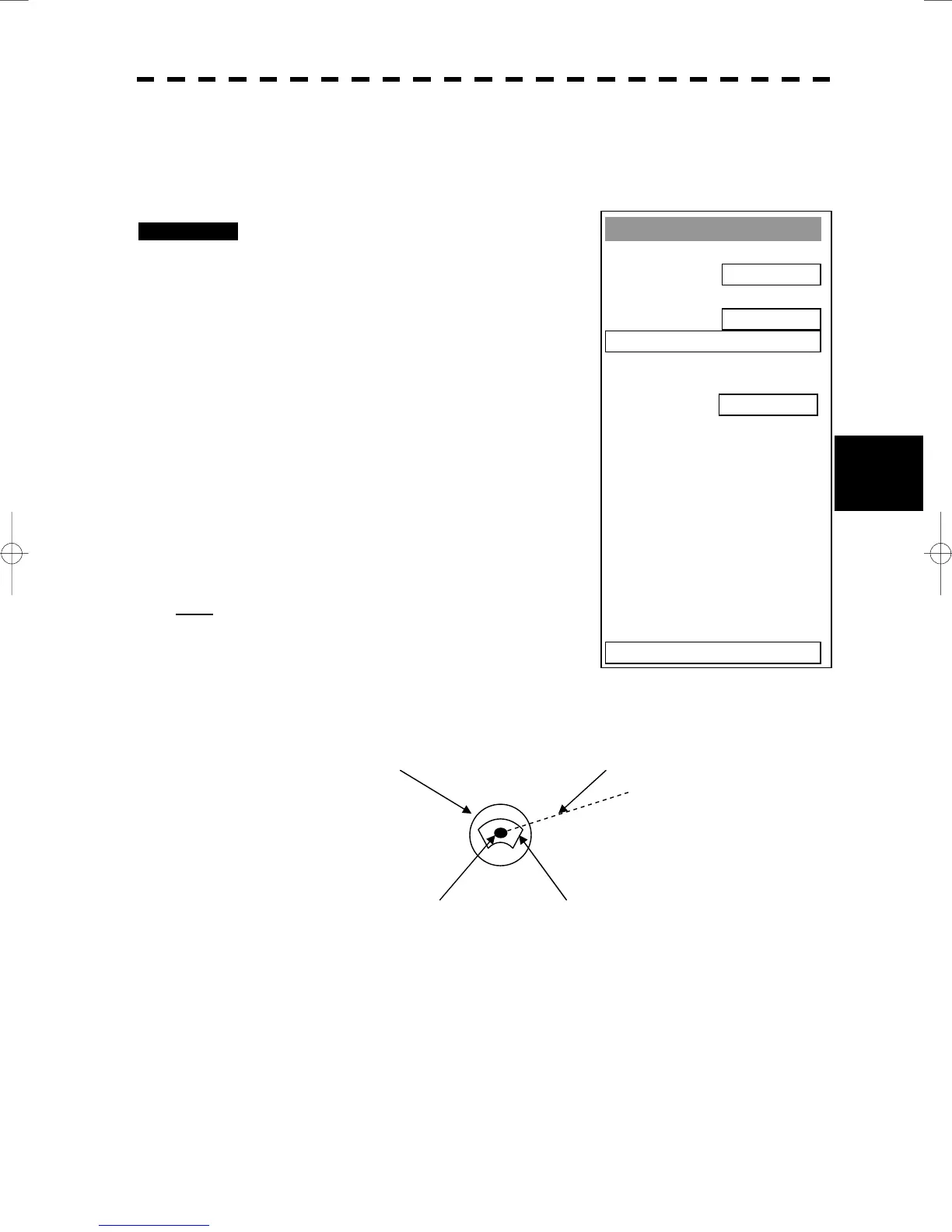

[IV] Gate Display
The gate displays an area monitoring a target using the ATA function. This radar equipment allows the gate size
to change automatically according to target distance and size. User can check the gate size using the following
function.
Procedures 1 Press [ATA MENU] key.
Press [5] key.
The ATA Test Menu will appear.
2 Press [4] key.
The gate display mode is switched.
ON: Gate is displayed
OFF: Gate is not displayed
3 The gate displays data of a target you
want to check using the cursor and
[TGT DATA] key. (See Section 5.3.5
Target Data Display.)
The data is displayed, and the gate is displayed
around the ATA symbol in green.
Note:
The ATA function can display the gate of two targets
simultaneously.
ARPA/ATA symbol
Vector
Echo Gate (displayed in green)
