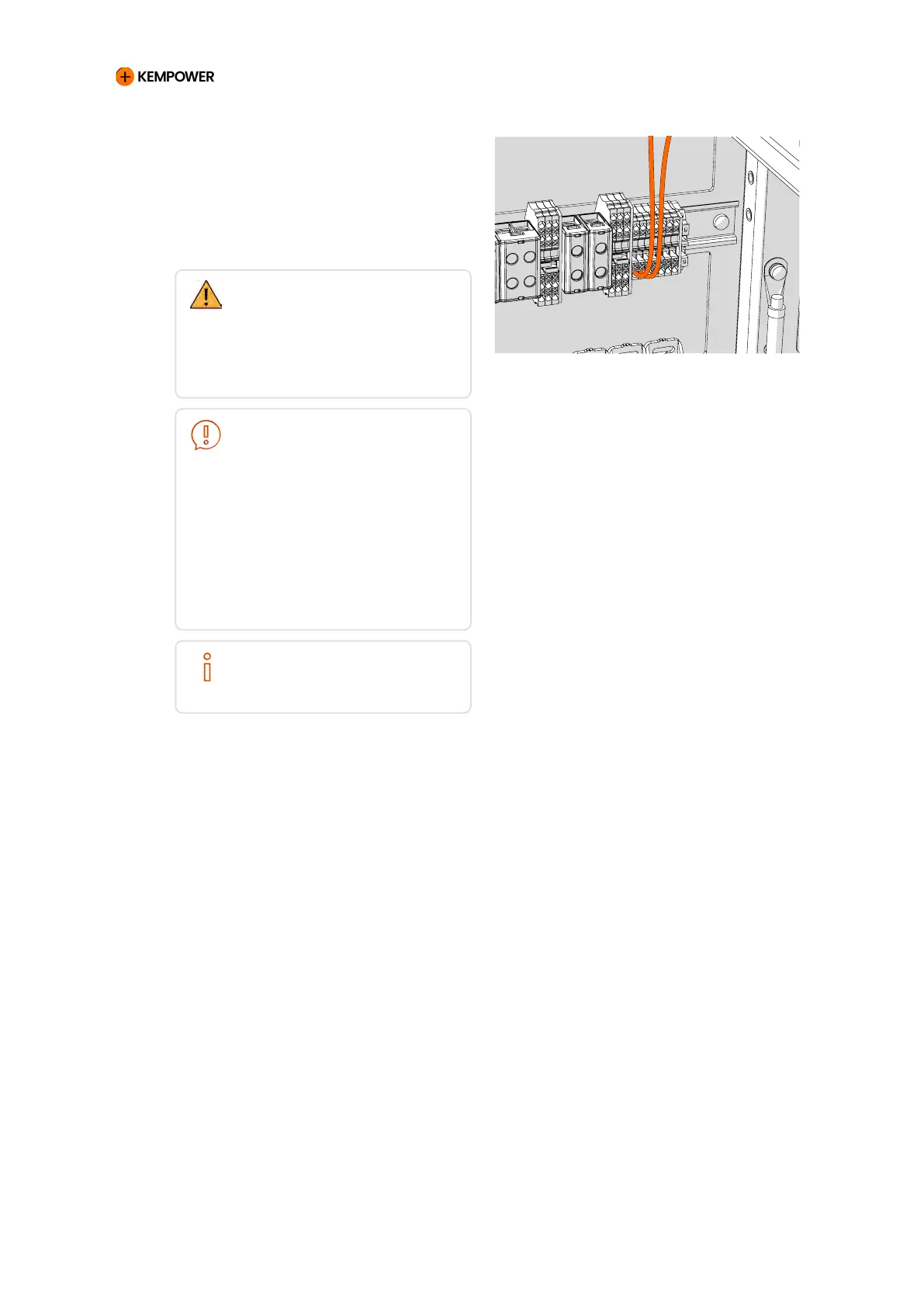

7. Connect the equipment stop
button or wire the contactor
circuit to the ES terminal blocks.
Make sure that the circuit type is
normally closed (NC).
WARNING
Never connect main AC
power to the equipment
stop circuit. Risk of fire and
permanent damage to the
control module.
NOTICE
Do not make holes or
openings in the cabinet
structure for the cables. Do
not route the cables through
the connectors or cooling
outlets behind the modules.
Changes or modifications,
unless specifically agreed
upon with Kempower, will void
the warranty.
NOTE
Route the cables to all units
from below the unit.
