• Rotate the double Satellite 90 degrees to provide maximum
operating area for the charging cable on both sides. If possible,
index the parking slots. See Figure 22.

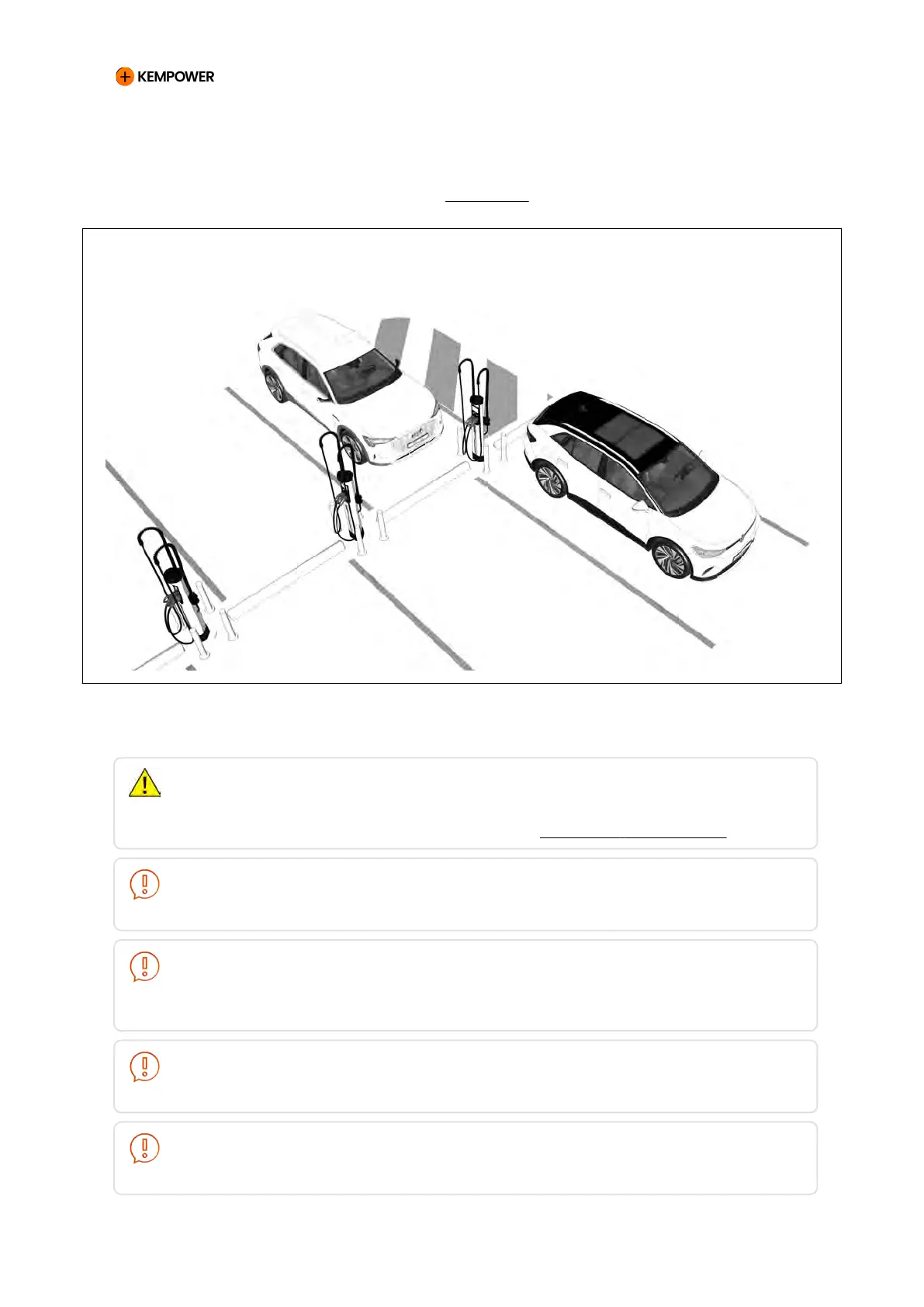

Figure 22. Example of indexed parking slots for double Satellites
4.2. Electrical planning
CAUTION
The minimum network requirement per cabinet for the uninterrupted short-circuit
current (Ik) is 13 kA/200 kW and for the short-circuit power (Ssc) 10 MVA/200 kW. If the
values of your network are less than this, contact
Kempower Sales Support.
NOTICE
Obey local laws and regulations about the emergency stop circuit. If necessary,
include the emergency stop switches and a main circuit breaker on the supply side.
NOTICE
Selecting the correct cable type and size is the electrical designer's responsibility.
Obey the relevant standards, local laws, and regulations. Take into account the
specific requirements of the installation site.
NOTICE
Dimension the main AC supply to the current specified in the datasheet of the
charging power unit.
NOTICE
The cabling between the charging power unit and connected charging points must
support the maximum output current of the charging points.
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 36 REV 2.40 EN 04-2024
