3.3.2. Power Unit Version 3
NOTE
See the product datasheets for the dimensions and weights of the units. Product
datasheets are available at mediabank.kempower.com.
NOTE
See 9: Unit footprints and clearances for the footprints and required clearances of the
units.
Kempower Power Unit Version 3 is a charging power unit that receives
power from the electric power distribution network and distributes it to 1–8
DC charging points. Power Unit Version 3 can be a single, double, or triple
cabinet unit.
Each cabinet can be equipped with 1–4 power modules (C500/500 V and
C800/800 V). One power module provides a maximum of 50 kW charging
power.
Charging power management can be dynamic or static.

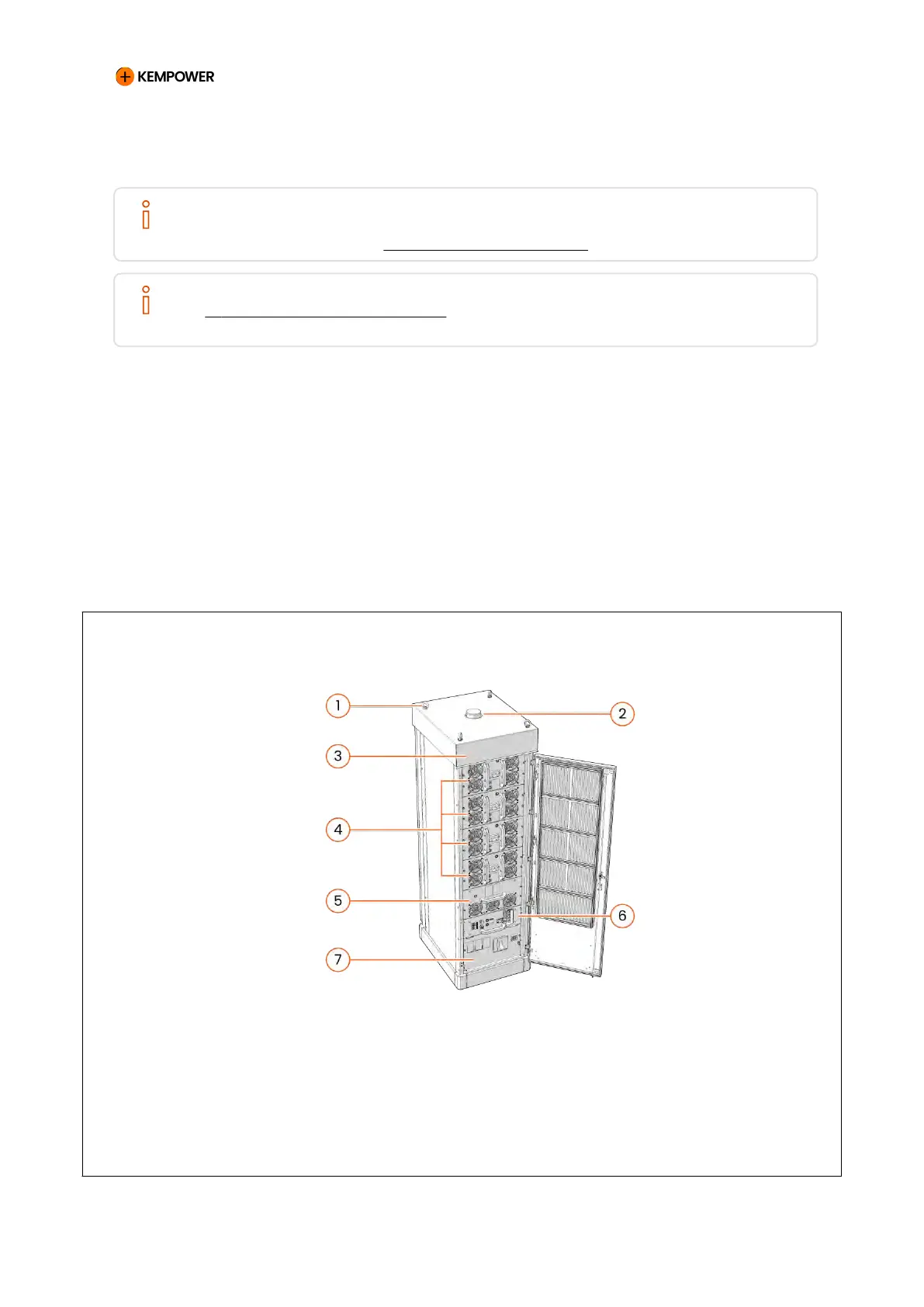

Figure 4. Kempower Power Unit Version 3 overview (single cabinet, dynamic)
1 Lifting lugs 5 Power distribution module
2 Cellular/Wi-Fi antenna 6 Control module
3 Unit roof with cooling outlets 7 Mains module
4 Power modules (1–4 per cabinet)
