3.4. Modules of the charging power unit
3.4.1. Power module
The power module (C500/500 V and C800/800 V) provides the power for
the charging power unit. The power module has two channels (2 x 25 kW), A
on the right and B on the left.

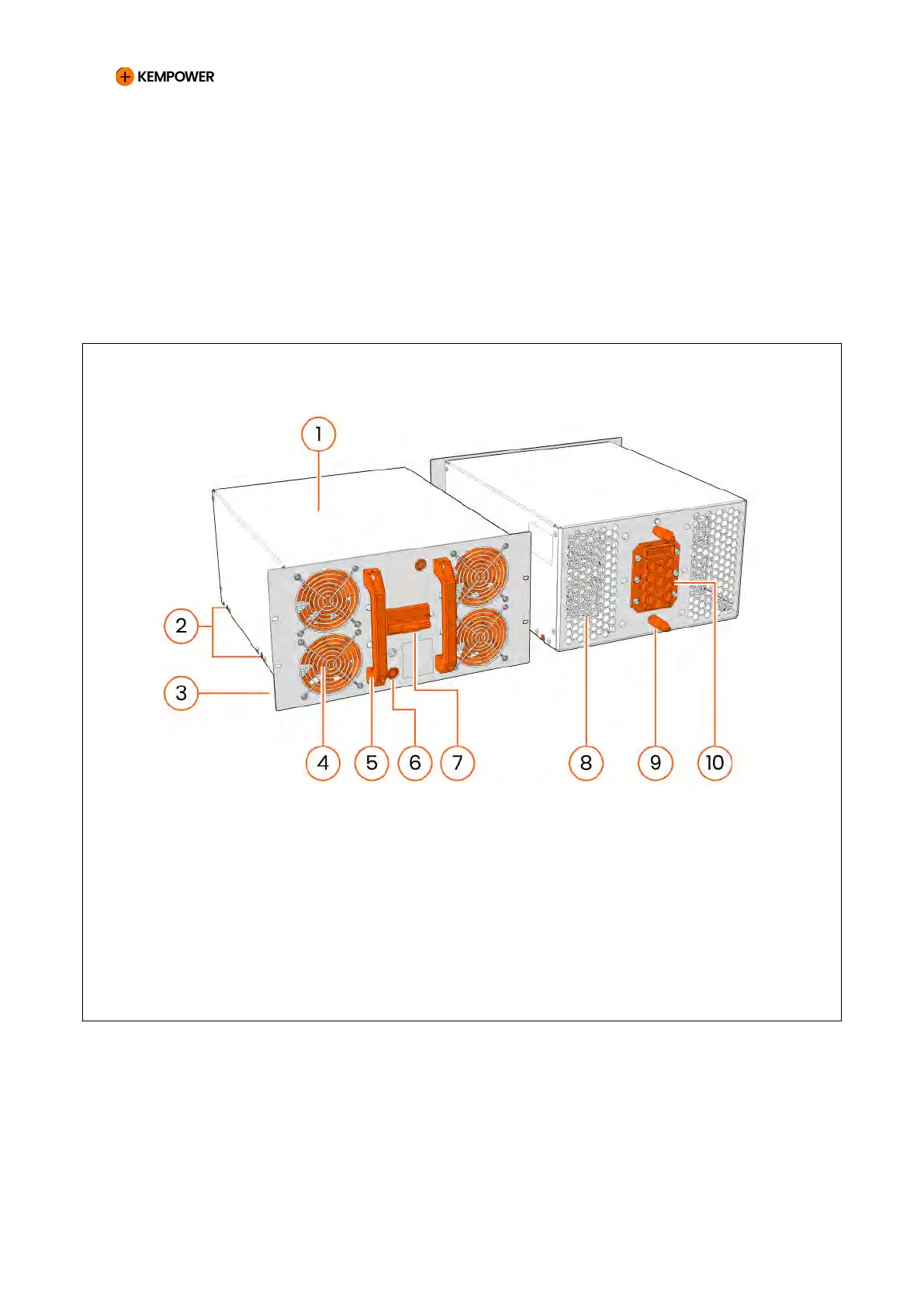

Figure 6. Power module overview
1 Cover 6 Channel status indicators
a
2 Rollers 7 Circuit breaker
3 Front panel 8 Cooling outlets
4 Cooling fans 9 Guide pins
5 Handles 10 Multi-quick connector
a
Green: OK, ready for operation. Blue: operation. Red: error.
