3.7.3. AC Satellite Version 2 with charging cables
NOTE
AC Satellite Version 2 does not have charging status indicator LEDs.
Kempower AC Satellite with cables is a standalone AC charging point that
is not connected to a charging power unit but directly to the main power
supply. The single AC Satellite has one AC vehicle connectors and the
double has two.

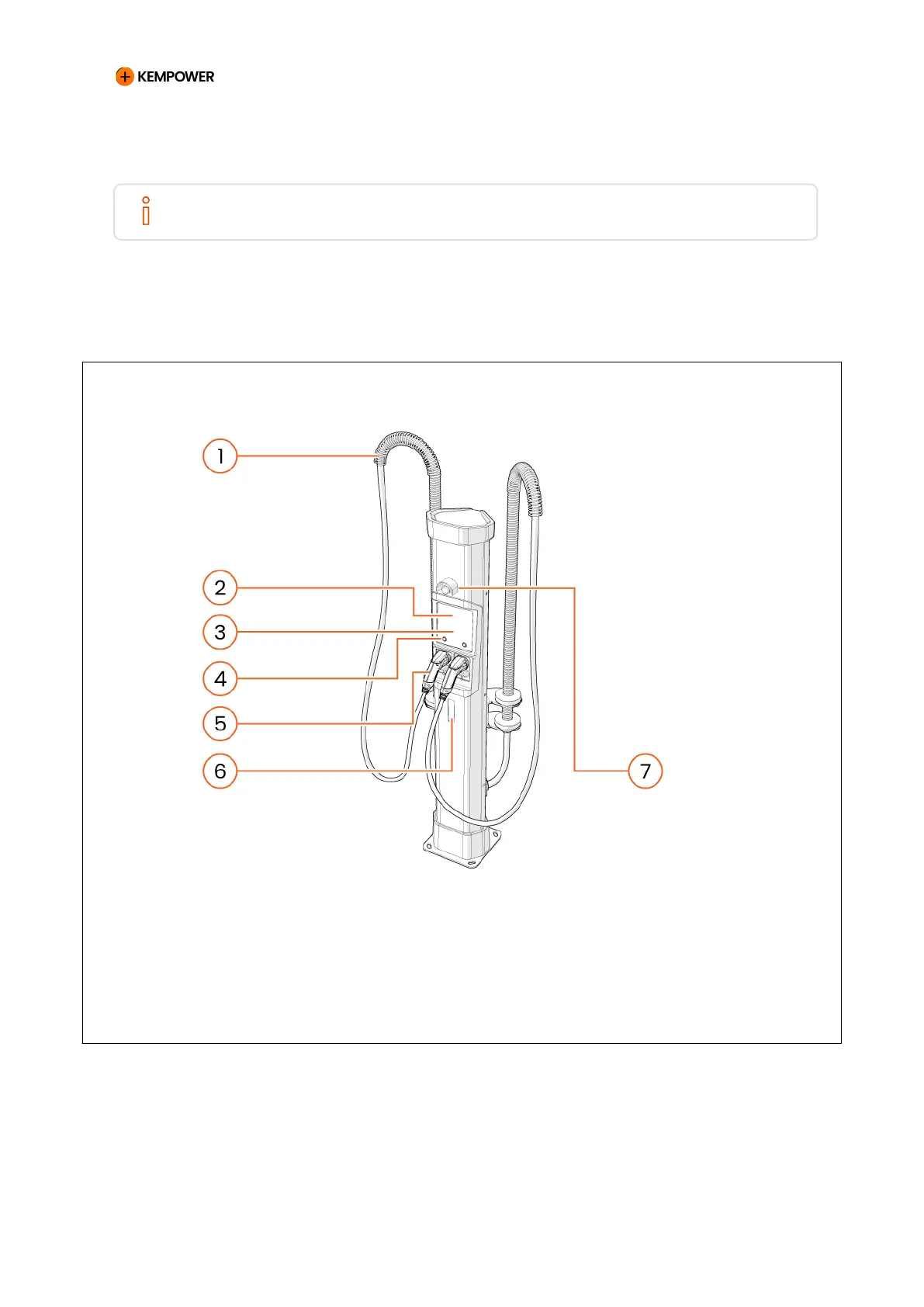

Figure 19. Kempower AC Satellite with charging cables overview
1 Charging cable support spring 5 Vehicle connectors and holders
2 Touch screen 6 Energy meter window
3 RFID reader 7 Emergency stop button (option)
4 Function buttons
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 30 REV 2.40 EN 04-2024
