5.2.6. Terminal blocks (Control Unit 200 A)
See also
10: Examples of connecting output and control cables to charging
points and 11: Examples of connecting cables to the Satellites.

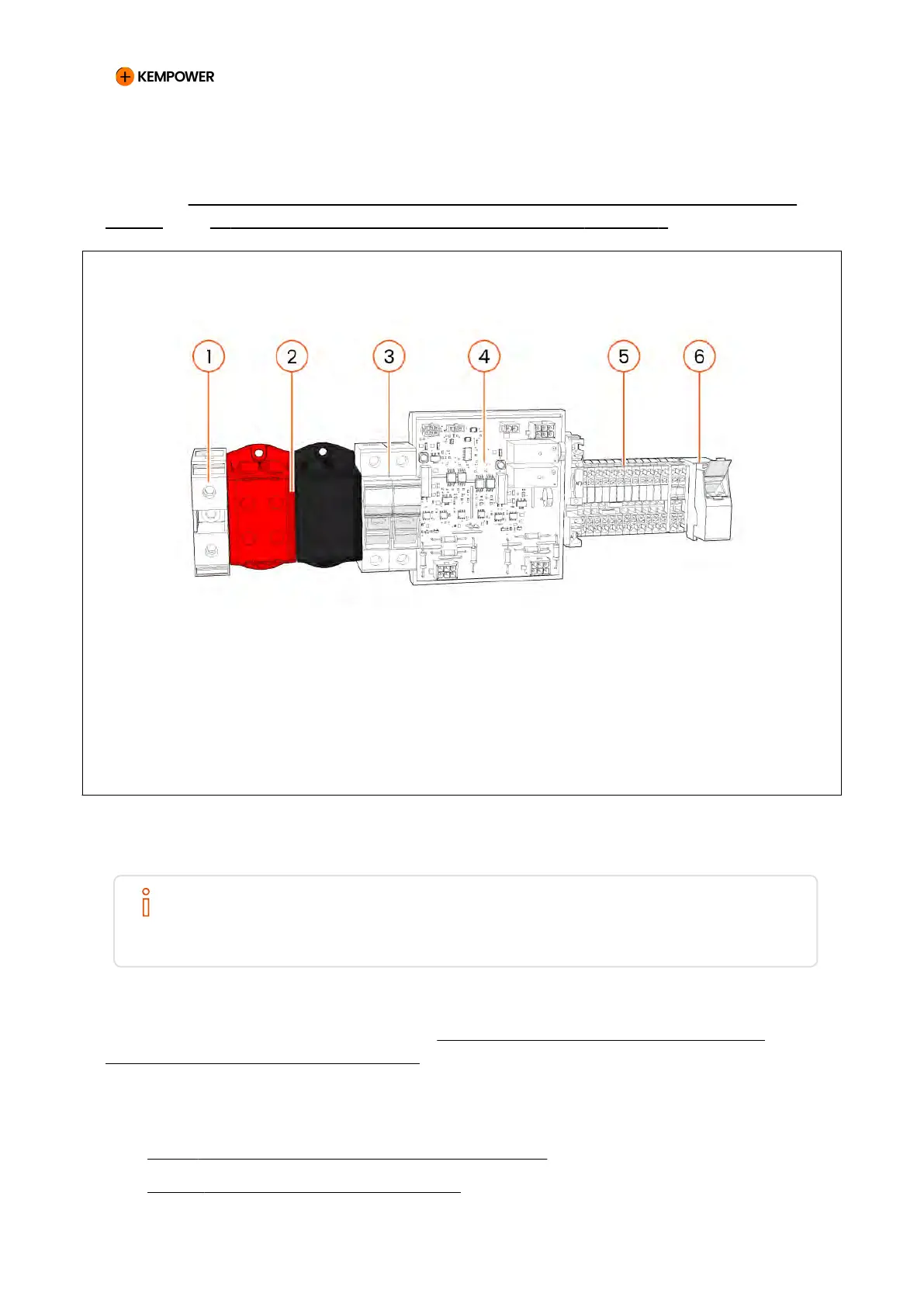

Figure 45. Terminal blocks in the Control Unit 200 A with CCS cables
1 Terminal block for (power cable) PE
wires
4 Voltage and insulation monitor
2 Terminal blocks for DC power cable
(2 x 95 mm
2
screw terminal)
5 Terminal blocks for control cable
3 DC voltage measurement fuses 6 Terminal block RJ45
5.2.7. Installing Station Charger cables
NOTE
The neutral wire (N) is required if Station Charger has an AC charging output (TN-C-
S network). The terminal for the neutral wire (N) is located behind the AC supply
terminals. The neutral wire can be aluminum or copper.
Station Charger is delivered with the charging cables installed.
Installing the AC supply cables, see 5.2.8: Installing the AC mains power
cables to the charging power unit.
If you are connecting additional charging points to the Station Charger, see:
• 5.2.9: Installing the DC output power cables
• 5.2.10: Installing the control cables
