11. EXAMPLES OF CONNECTING CABLES TO THE SATELLITES
11.1. Satellite Version 1 with one CCS vehicle connector
NOTE
Grounding of the Ethernet shield at one end only, charging power unit or Satellite.

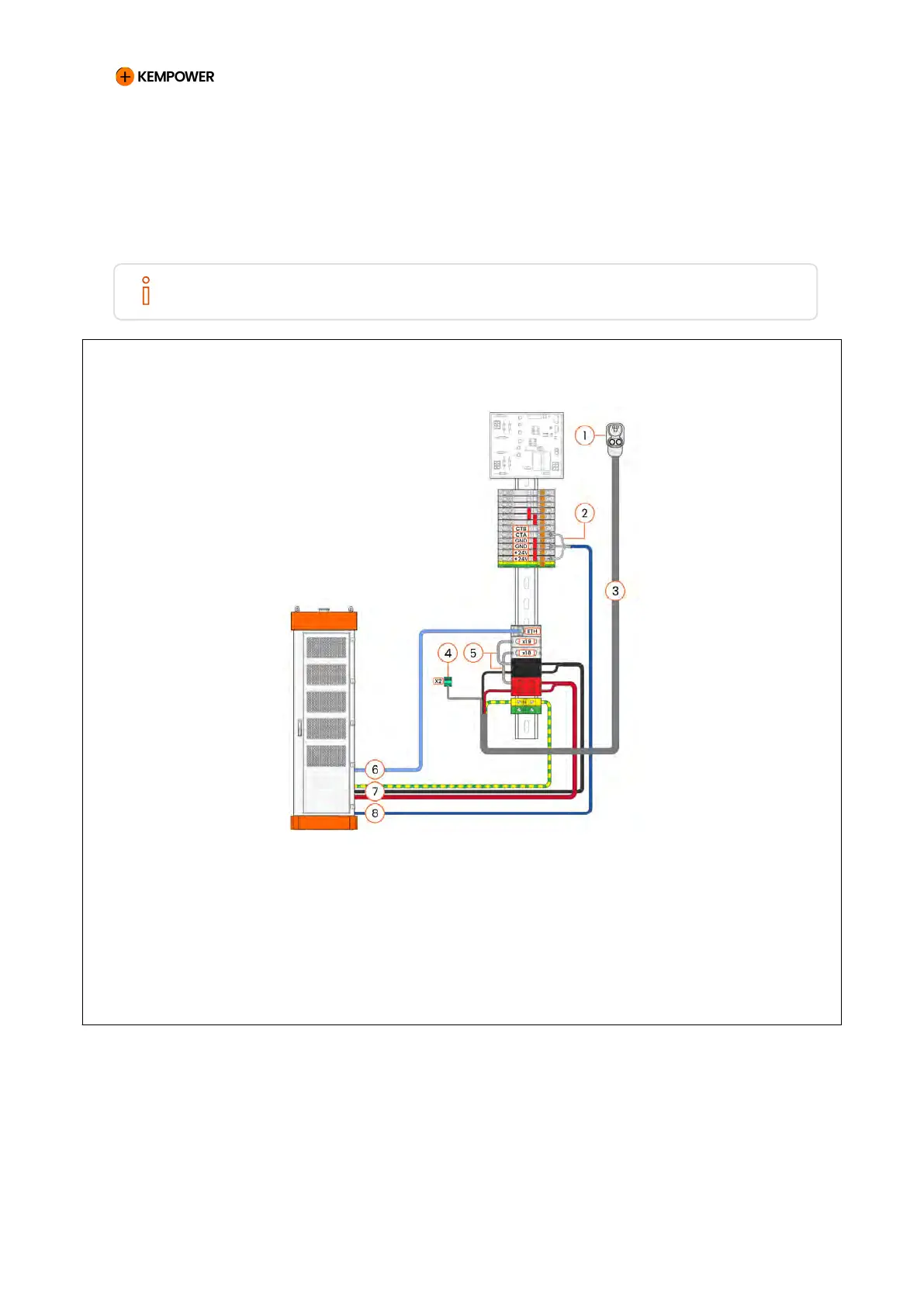

Figure 62. Satellite Version 1 with one combined charging system (CCS) vehicle connector
1 Configuration tag (right vehicle
connector)
5 Voltage measurement wires
2 CT line signal wires 6 Communication cable
3 Charging cable 7 DC output power cables + PE
4 Vehicle connector signal wires 8 Control cable (CT line)
