5.2.5. Terminal blocks (Liquid Cooled Satellite)
See also 10: Examples of connecting output and control cables to charging
points and 11: Examples of connecting cables to the Satellites.

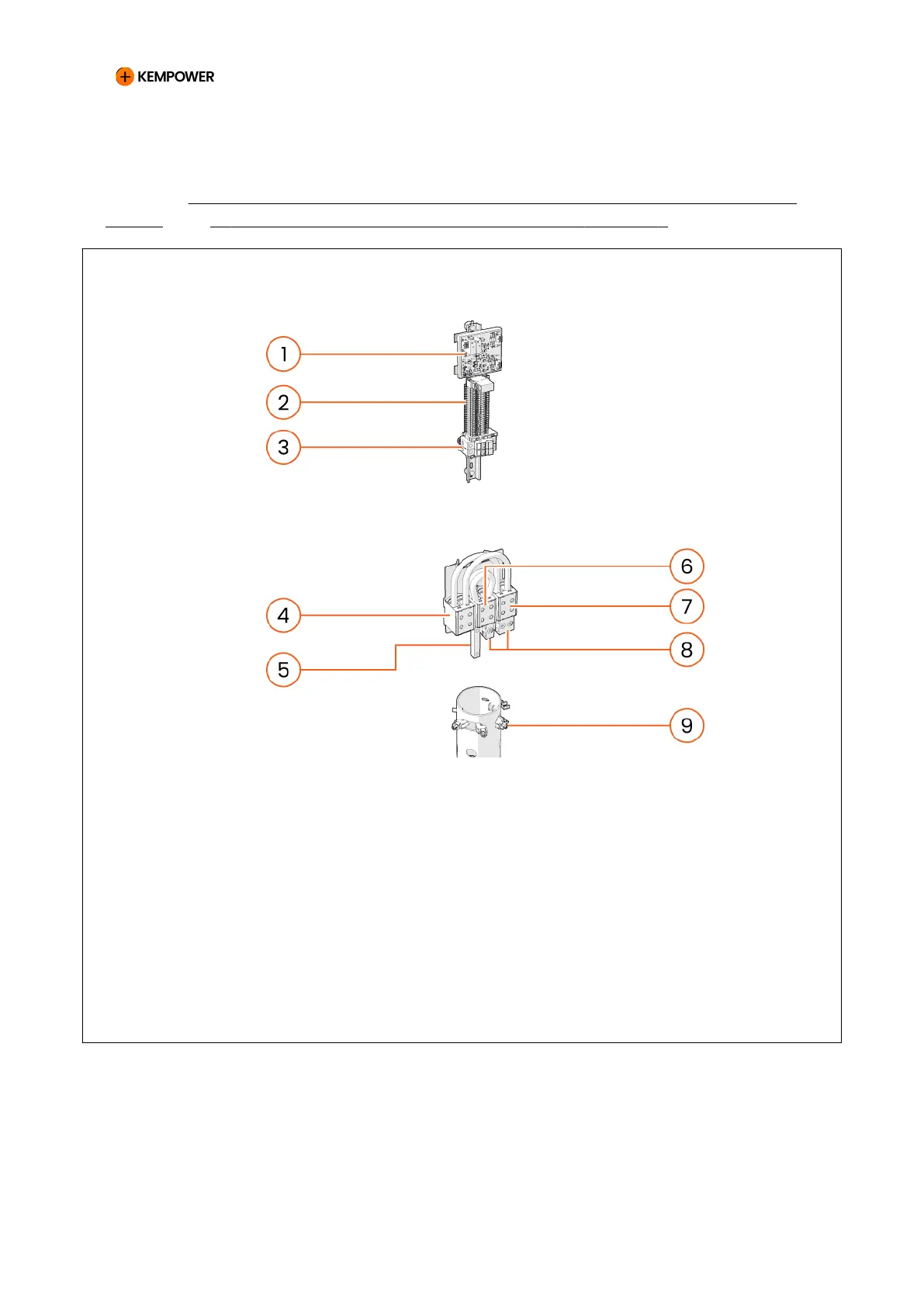

Figure 44. Terminal blocks in the single Liquid Cooled Satellite
1 Voltage and insulation monitor 6 DC- IN and DC- OUT for charging
cable
2 Terminal blocks for control cable 7 DC+ OUT for charging cable
3 Charging voltage measurement
fuse block (1000 VDC)
8 Connection wiring cooling blocks
4 DC+ IN from Power Unit (2 x 240
mm
2
screw terminal)
9 Protective earth (PE) clamps
5 DC- IN from Power Unit (copper
terminal bar with D10 mm holes)
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 90 REV 2.40 EN 04-2024
