11.6. Satellite Version 2 with one CCS and one CHAdeMO
vehicle connector
NOTE
Grounding of the Ethernet shield at one end only, charging power unit or Satellite.

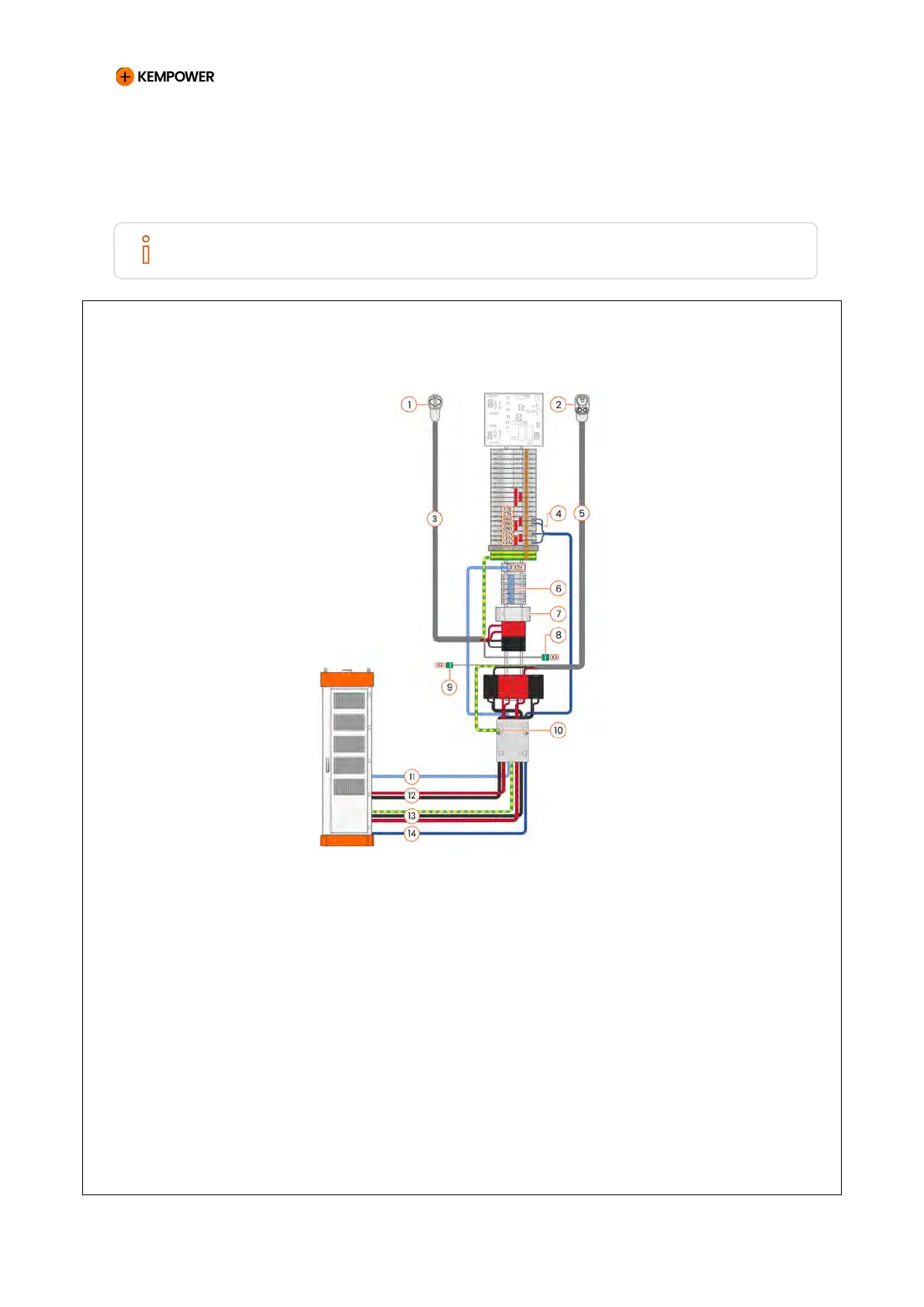

Figure 67. Satellite Version 2 with one combined charging system (CCS) and one CHAdeMO
vehicle connector
1 Configuration tag (left vehicle
connector)
8 Vehicle connector signal wires
(left)
2 Configuration tag (right vehicle
connector)
9 Vehicle connector signal wire
(right)
3 Charging cable (left) 10 Connect PE wire to Satellite
installation flange with wire clamp
4 CT line signal wires 11 Communication cable
5 Charging cable (right) 12 DC output power cables (left)
6 Voltage measurement fuses 13 DC output power cables + PE
(right)
7 Contactor for CHAdeMO 14 Control cable (CT line)
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 144 REV 2.40 EN 04-2024
