3.6.4. Control Unit
NOTE
See the product datasheets for the dimensions and weights of the units. Product
datasheets are available at mediabank.kempower.com.
Kempower Control Unit is the charging point connected to the charging
power unit. Control Unit has one vehicle connector. See the product
datasheet for the available charging cable and vehicle connector types.

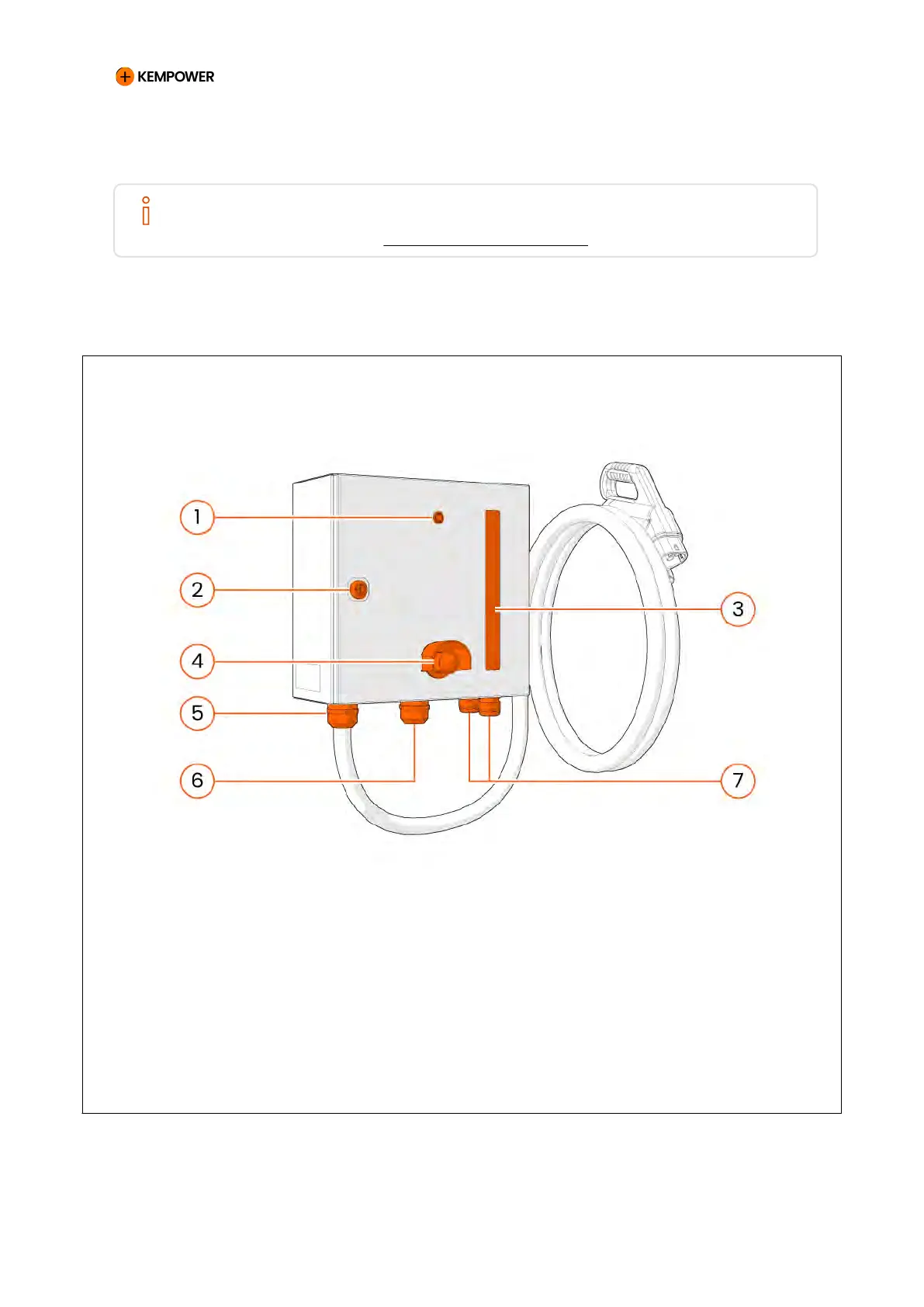

Figure 16. Kempower Control Unit overview
1 Control button with LED indicator 5 Charging cable
2 Front panel lock 6 Supply DC power cable
3 Charging status indicator
a
7 Cable strain reliefs for control
cable, control bus, and additional
equipment stop cable
4 Equipment stop button
a
Green: OK, ready to charge. Blue: charging. Red: error.
