3.5. Steel base (option)
The steel base is an installation foundation that provides additional height
under the cabinet for surface-installed cables. It is a standard part for
Kempower Station Chargers (included in the delivery) and an optional part
for Kempower Power Units (ordered separately). All sides of the steel base
have pre-machined knock-outs for cables.

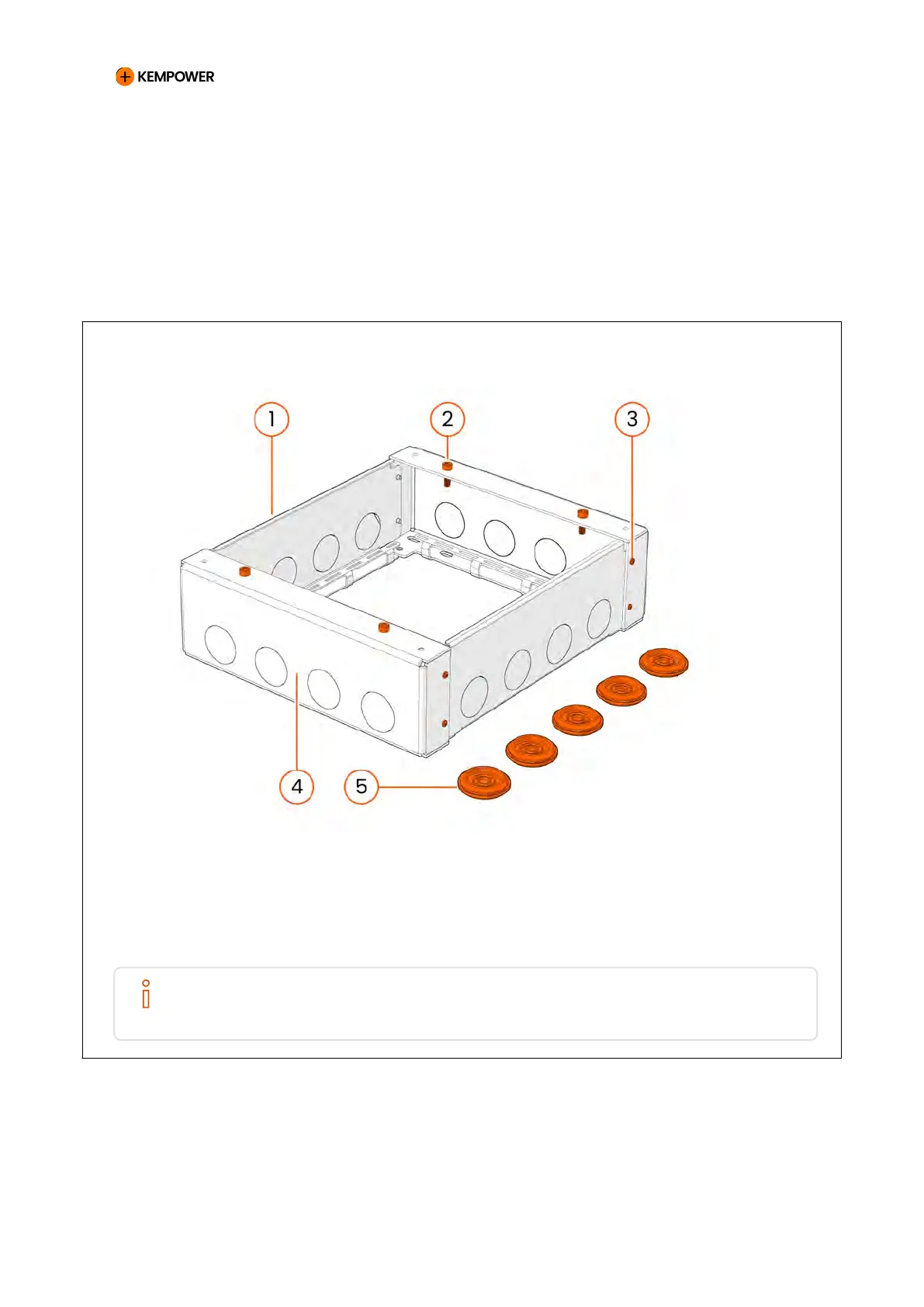

Figure 10. Steel base parts
1 End panel 4 Side panel
2 M12 bolt 5 Cable bushings
3 M6 bolt
NOTE
The fasteners used for installing the steel base to the installation surface are not
included in the delivery.
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 21 REV 2.40 EN 04-2024
