12. CONTROL SIGNAL WIRES OF THE CHARGING CABLE
The units have pre-installed wiring harnesses with mating connectors for
the control signal wires of the charging cable. Before you connect the signal
wires to the mating connector, terminate the signal wires with ferrules to
protect the wires from corrosion.
12.1. CCS charging cables
NOTICE
Before you connect the signal wires to the mating connector, terminate
the signal wires with ferrules to protect the wires from corrosion.

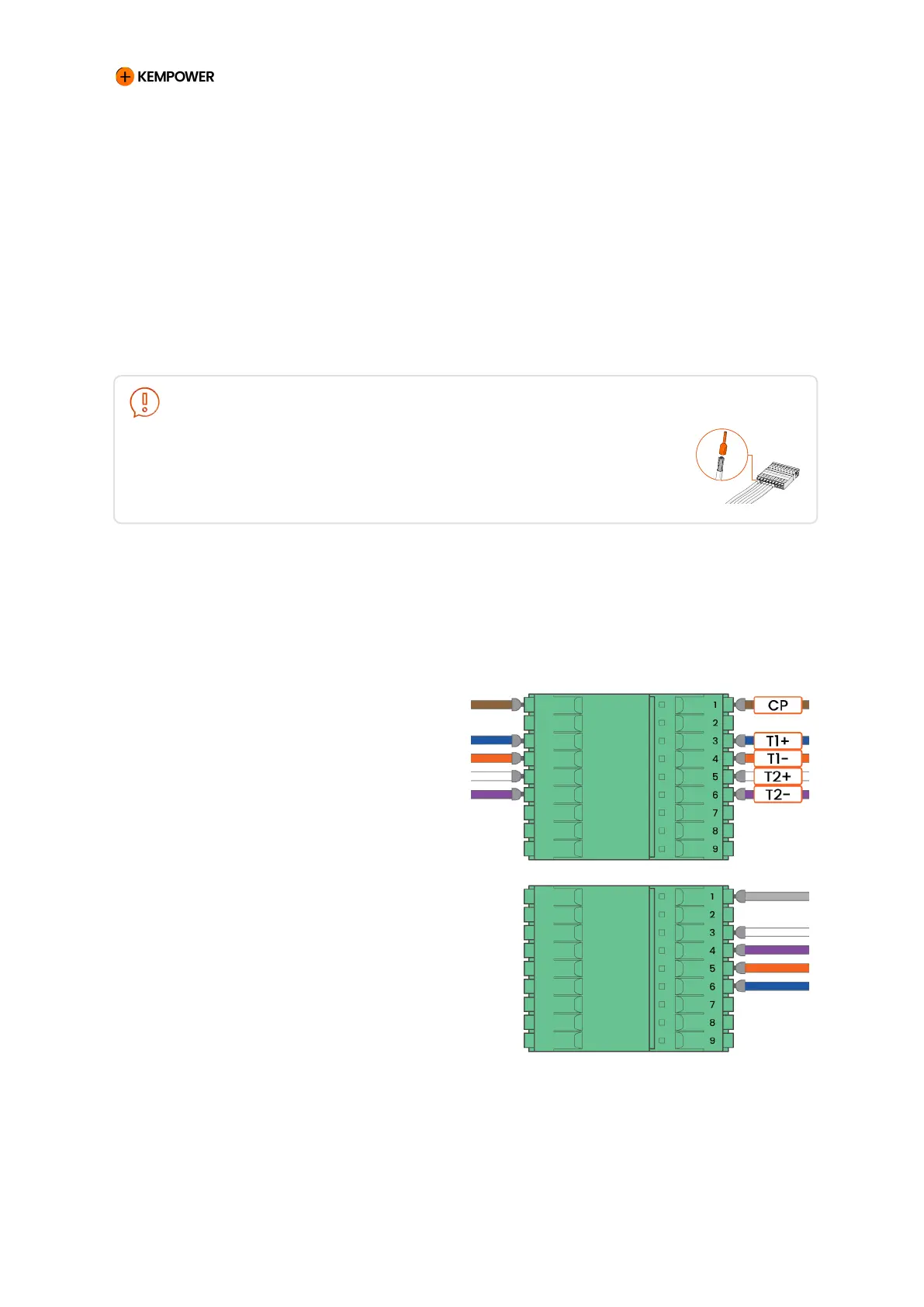

Connect the five control signal wires of the CCS charging cable to the
mating connector:
•
X2 for the charging cable on the right hand side
• X3 for the charging cable on the left hand side
Unit wiring
Amphenol charging cable
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 152 REV 2.40 EN 04-2024
