11.4. Satellite Version 2 with one CCS vehicle connector
NOTE
Grounding of the Ethernet shield at one end only, charging power unit or Satellite.

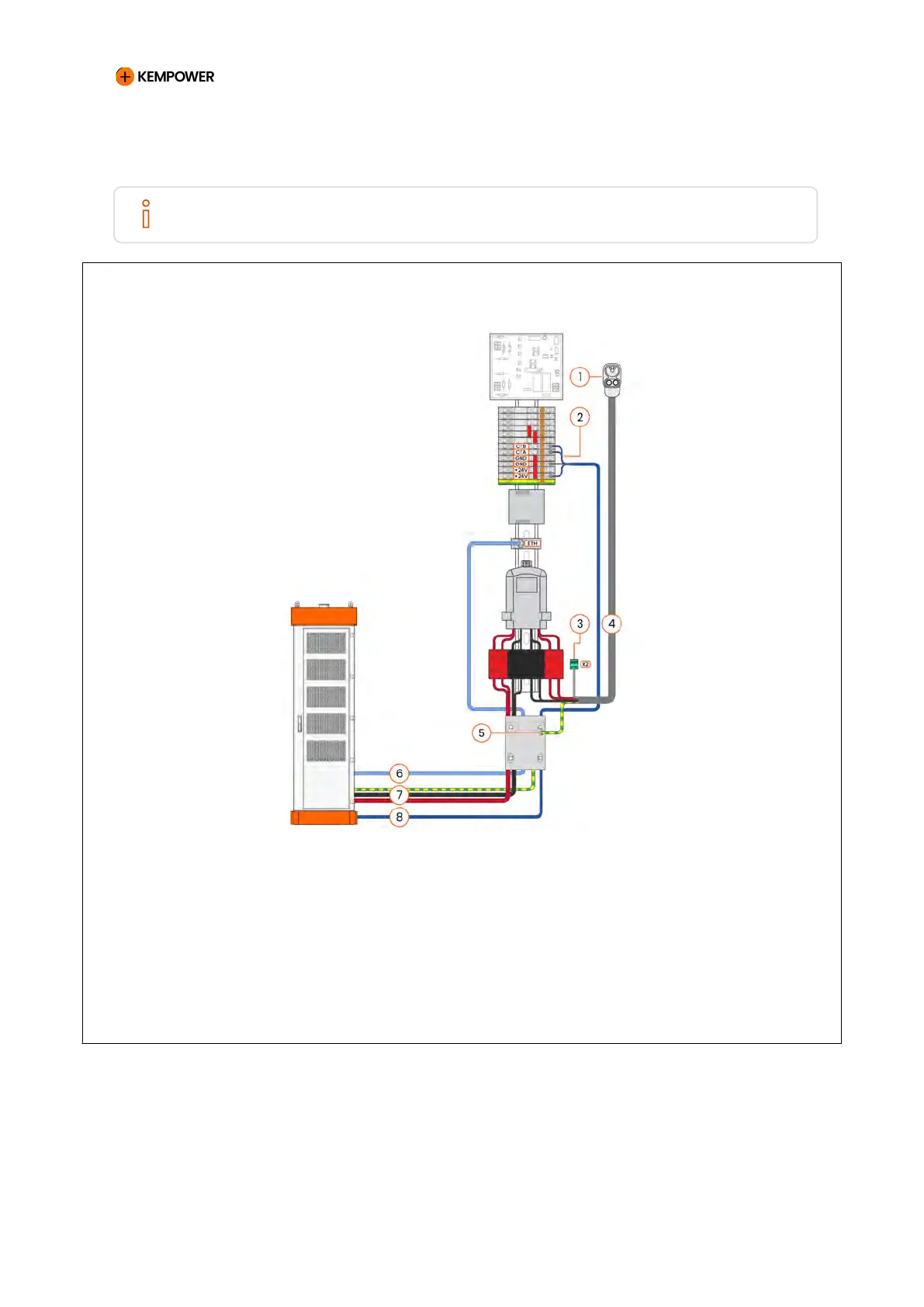

Figure 65. Satellite Version 2 with one combined charging system (CCS) vehicle connector
1 Configuration tag (right vehicle
connector)
5 Connect PE wire to Satellite
installation flange with wire clamp
2 CT A line signal wires (CT B not
connected)
6 Communication cable
3 Vehicle connector signal wires 7 DC output power cables + PE
4 Charging cable 8 Control cable (CT line)
